2.1 System Configuration
2.1.1 System Configuration for Single CPU System
2
SYSTEM CONFIGURATION
(4) System configuration using the Universal model QCPU
(a) When the main base unit (Q3 B) is used
* 1: One memory card can be installed.
Select a memory card from SRAM card, Flash card, and ATA card according to the application
and capacity.
With commercial memory cards, the operation is not assured.
* 2: As a power supply module, use the Q series power supply module.
The slim type power supply module and the redundant power supply module are not available for
the power supply module.
* 3: The Q series power supply module is not required for the Q5 B extension base unit.
* 4: When using the Q8BAT-SET for the Universal model QCPU, use the connection cable whose
connector part displays “A”
For details of connector part of a connection cable, refer to Section 7.2.2.

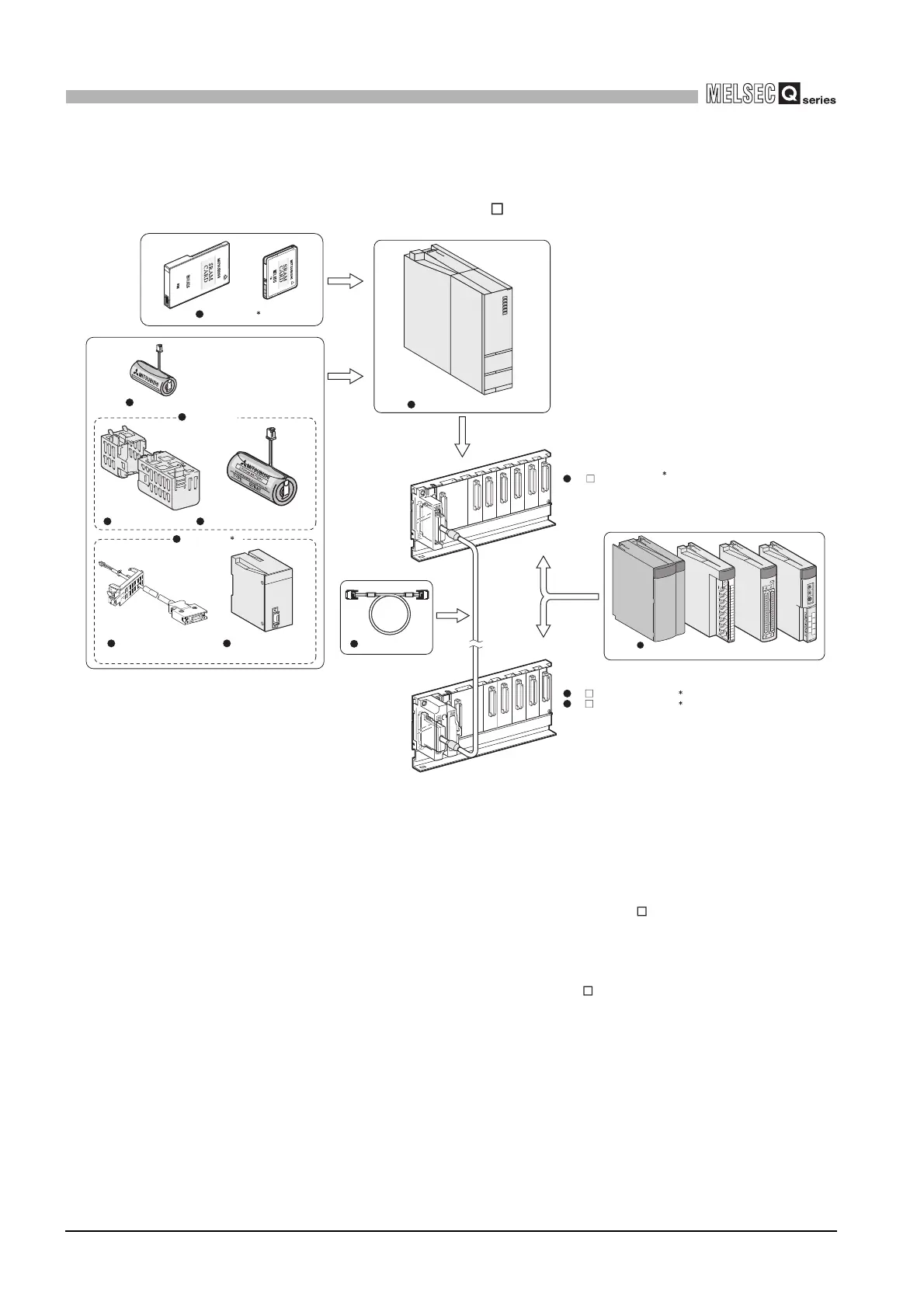

Diagram 2.12 System configuration when Q3 B is used
Universal model QCPU
Extension cable
Memory card
1
Q3 B main base unit
2
Q6 B extension base unit
Q5 B extension base unit
2
3
Power supply module/I/O module/
Intelligent function module
Battery holder Battery for QCPU (Q7BAT)
Battery for QCPU (Q6BAT)
Q7BAT-SET
Battery for QCPU
(Q8BAT)
Q8BAT-SET
Q8BAT connection cable
4
