4 INSTALLATION AND WIRING
(2) Battery holder (For Q6BAT)

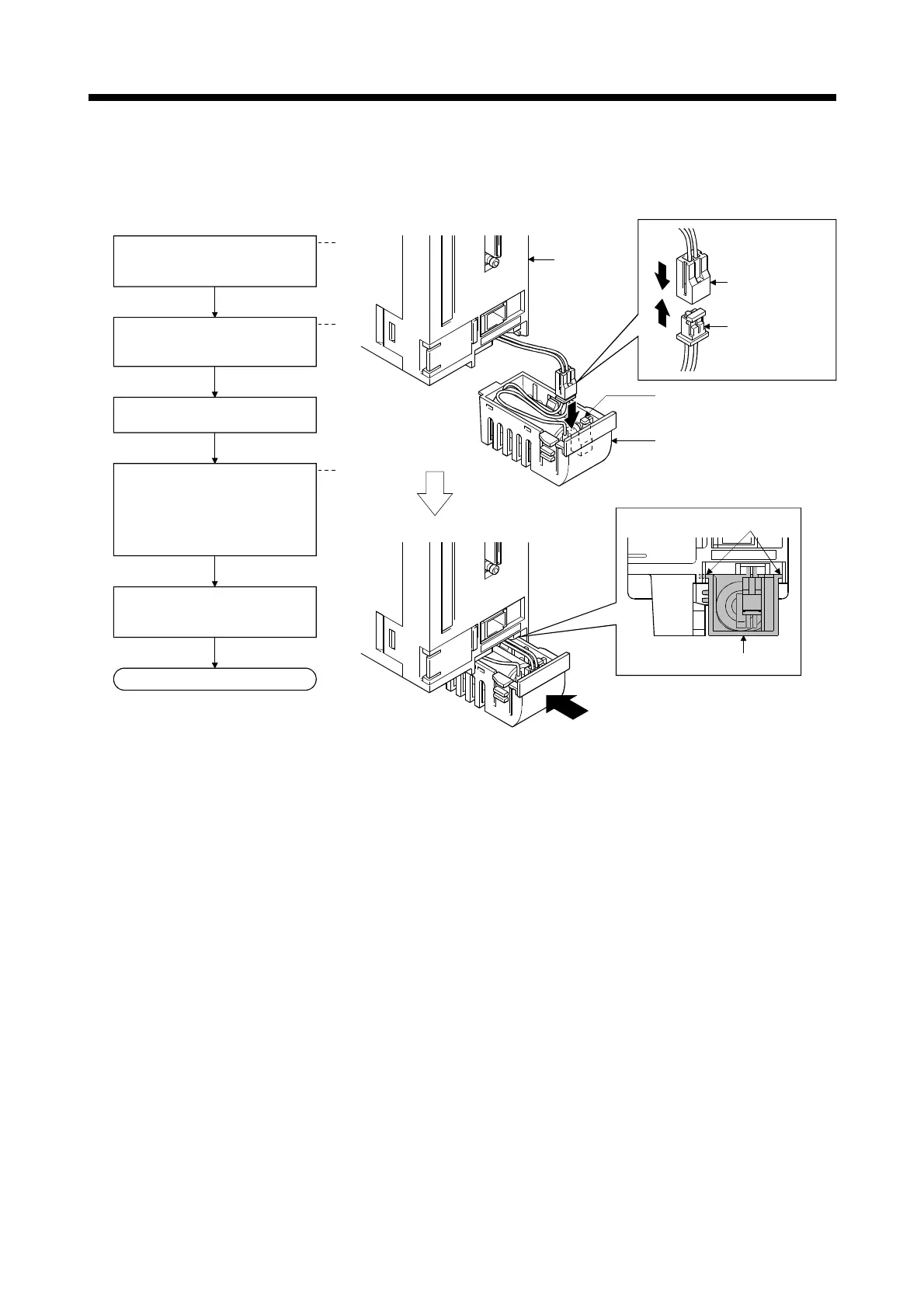

(a) Mounting
Motion
controller
Battery holder
Battery holder
1)
2)
3)
1)
2)
3)
Battery connector
(Q170MCPU side)
Battery lead
connector
(Battery side)
Battery disconnection
prevention hook
Installation grooves
Push
Connect the battery lead connector
to the battery connector for Motion
controller.
Secure the connector beneath the
battery disconnection prevention
hook.
END
Make sure that the battery holder
is installed in the Motion controller
securely.
Neatly place the lead wires into the
battery holder.
Adjust the battery holder to the
installation grooves, and slide the
battery holder in the direction of
the arrow, taking care to not
damage the lead wires.
(Be sure to insert it until it clicks.)
To Next Page
