7 - 50 7 - 50
MELSEC-Q
7 FUNCTION

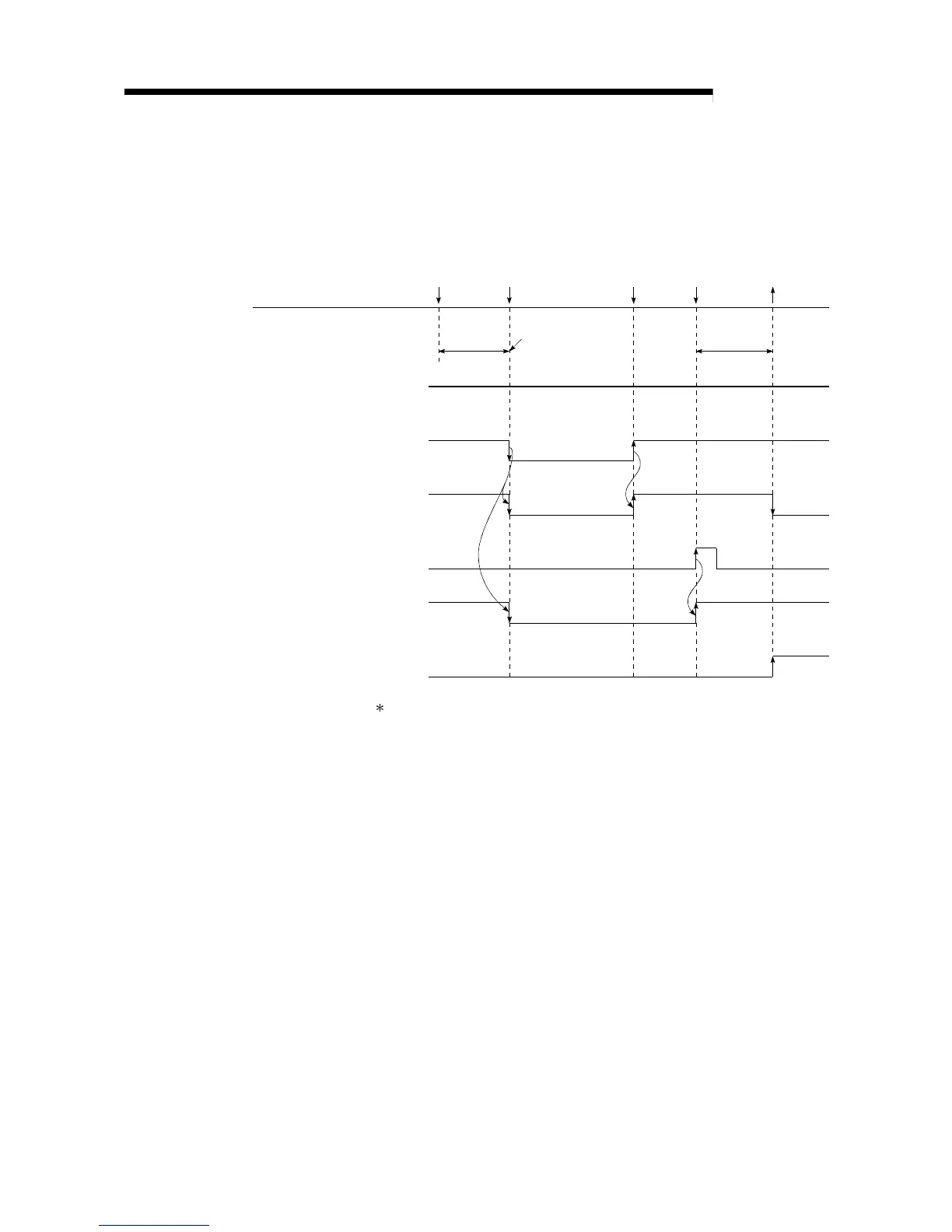

(g) Trace interrupt
1) When SM801 (sampling trace start) is turned off during sampling trace,
the sampling trace is interrupted.
In the meantime, the number of traces is cleared.
2) When turning on SM801 again, trace is restarted.
SM800
(Sampling trace ready)
SM801
(Sampling trace start)
SM802
(Sampling trace executing)
SM803
(Sampling trace trigger)
SM804
(After sampling trace trigger)
SM805
(Sampling trace complete)
Clear the trace count
Trigger
execution
When trace is interrupted from GX Developer, the SM800 is also turned off.
SM801
OFF
SM801
ON
Trigger
execution
Trace
complete
Number of
trace after
trigger
Number of
trace after
trigger
To Next Page
