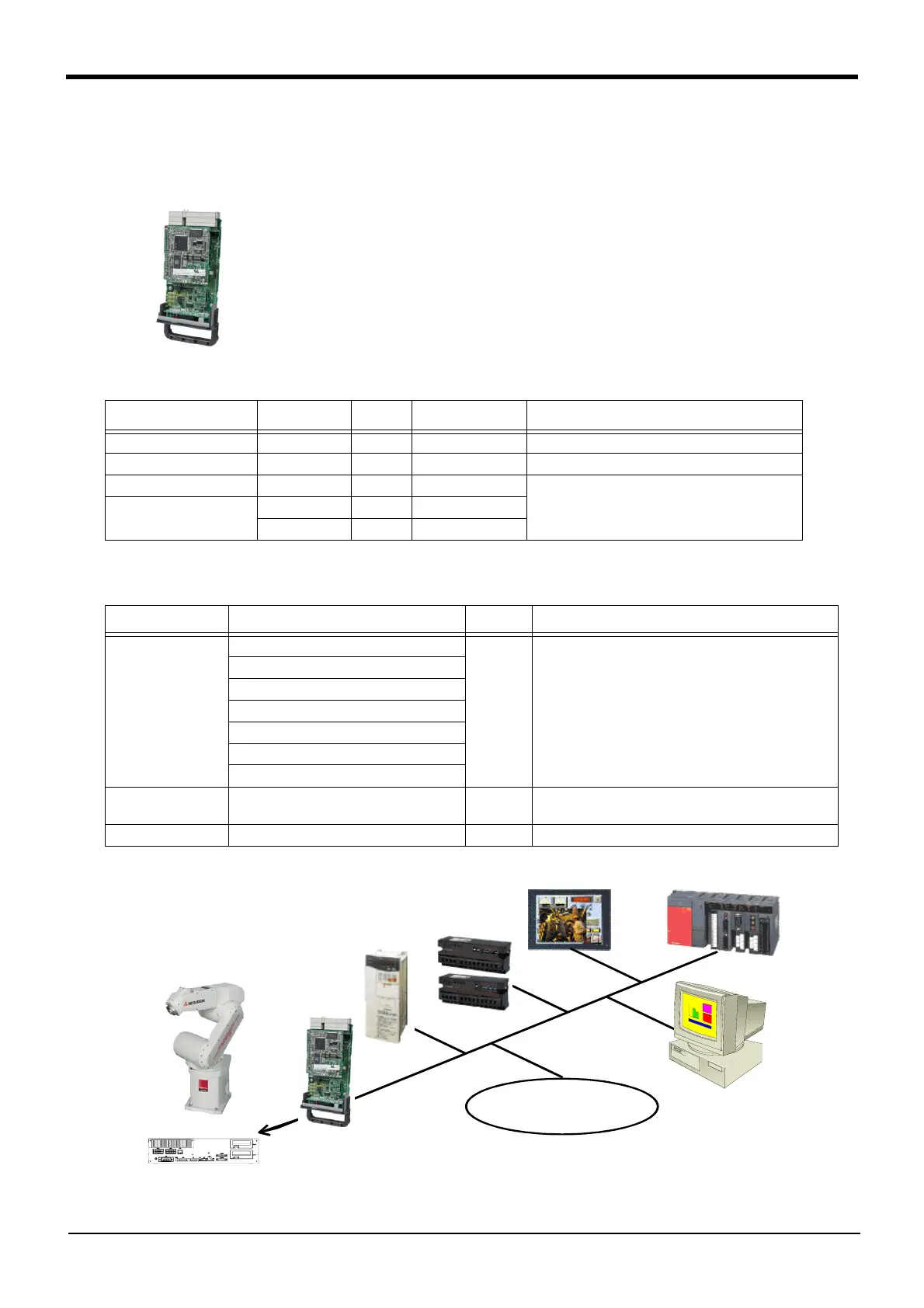

3-96 CC-Link interface
3 Controller
(6) CC-Link interface
■ Order type: ● 2D-TZ576
■ Outline
The CC-Link interface is the optioninterface to not only add bit data to the robot
controller. but also to add CC-Link field network function that allows cyclic
transmission of word data.
■ Configuration
Table 3-33 ： Configuration device
Table 3-34 ： Procured by the customer
Fig.3-41 ： Example of CC-Link Product Configuration
Part name Type Qty.
Mass(kg)
Note1)
Note1) Mass indicates one set.
Remarks
CC-Link interface TZ576 1 0.6
Manual BFP-A8701 1 -
Ferrite core E04SR301334 2 -
Be sure to install this for noise countermeasure.Cable clamp AL4 2 -
AL5 2 -
Part name Type Qty. Remarks
Master station
QJ61BT11(Q series)
1 FX series products are not supported.
QJ61BT11N(Q series)
AJ61QBT11(QnA series)
A1SJ61QBT11(QnAS series)
AJ61BT11(A series)
A1SJ61BT11(AnS series)
A80BD-J61BT11(personal computer board)
Communication cable - 1
Shielded 3-core twisted cable
This cable may be manufactured by the customer.
Terminal resistor - 1 110Ω or 130Ω is recommended.
ロボットコントローラ
(図はCR
751
)
CC-Link インタフェースカード
（本オプション）
ロボット本体
表示器
I/Oユニット
シーケンサ
インバータ
パソコン
パートナーメーカーの機器
Robot arm
Inverter
I/O unit
Display Sequencer
Personal computer
Partner manufacturer’s
device
CC-Link interface
(This option)
Controller
(The fugure is CR751)
