Mitsubishi RV-2F-D Series User Manual

3 Controller
Emergency stop input and output etc. 3-53
(1) CR750 controller

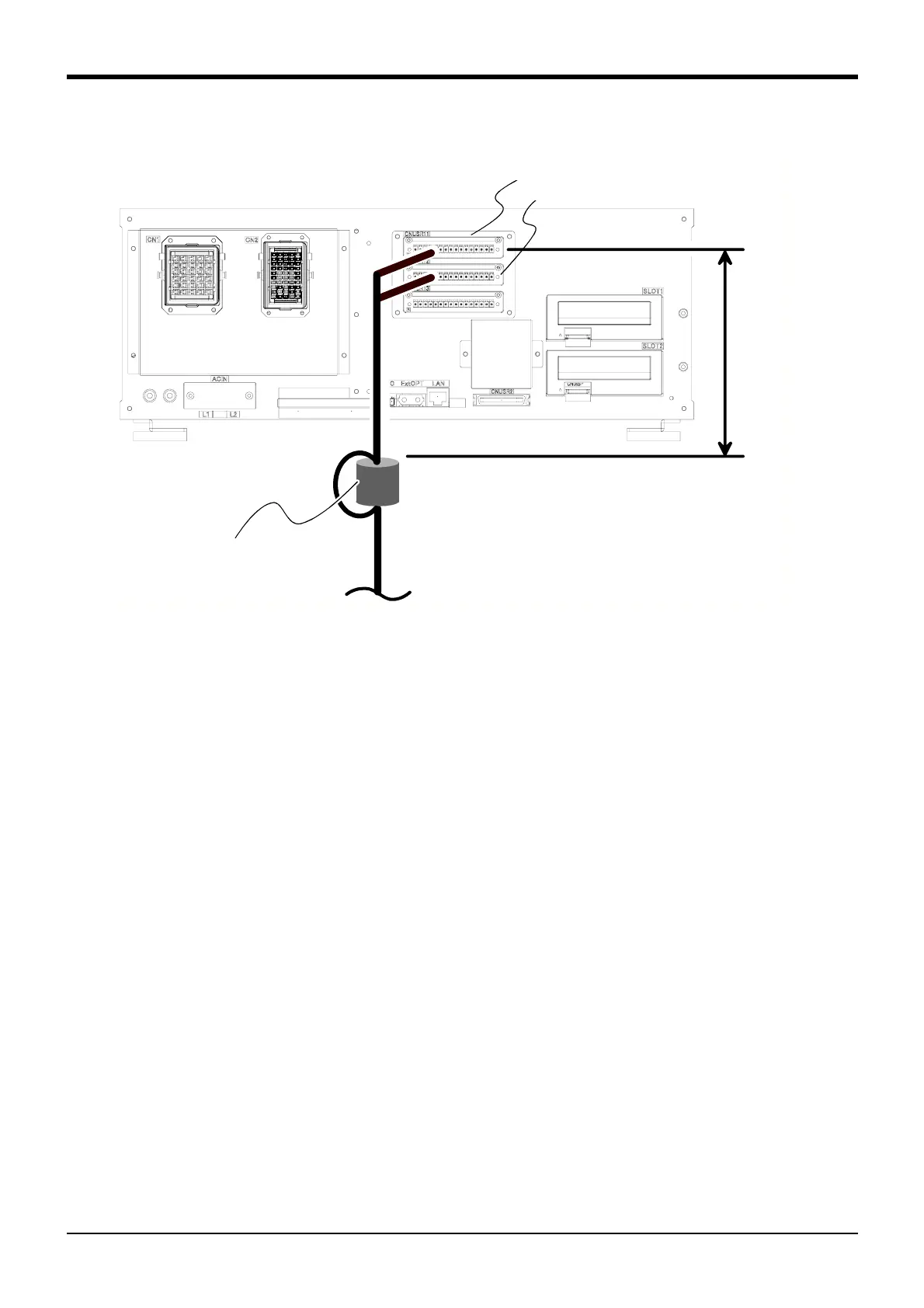

Fig.3-9 ： Emergency stop cable connection (CR750)
30cm以内
フェライトコア
2回通し
CNUSR11コネクタ
CNUSR12コネクタ
CNUSR11 connector
Within 30 cm
Ferrite core
Pass twice
CNUSR12 connector
Note) The form of the machine cable connector
(CN1/CN2) may differ in RV-2F series.
Note) Note)
