3 Controller
Emergency stop input and output etc. 3-61
(2) CR751 controller

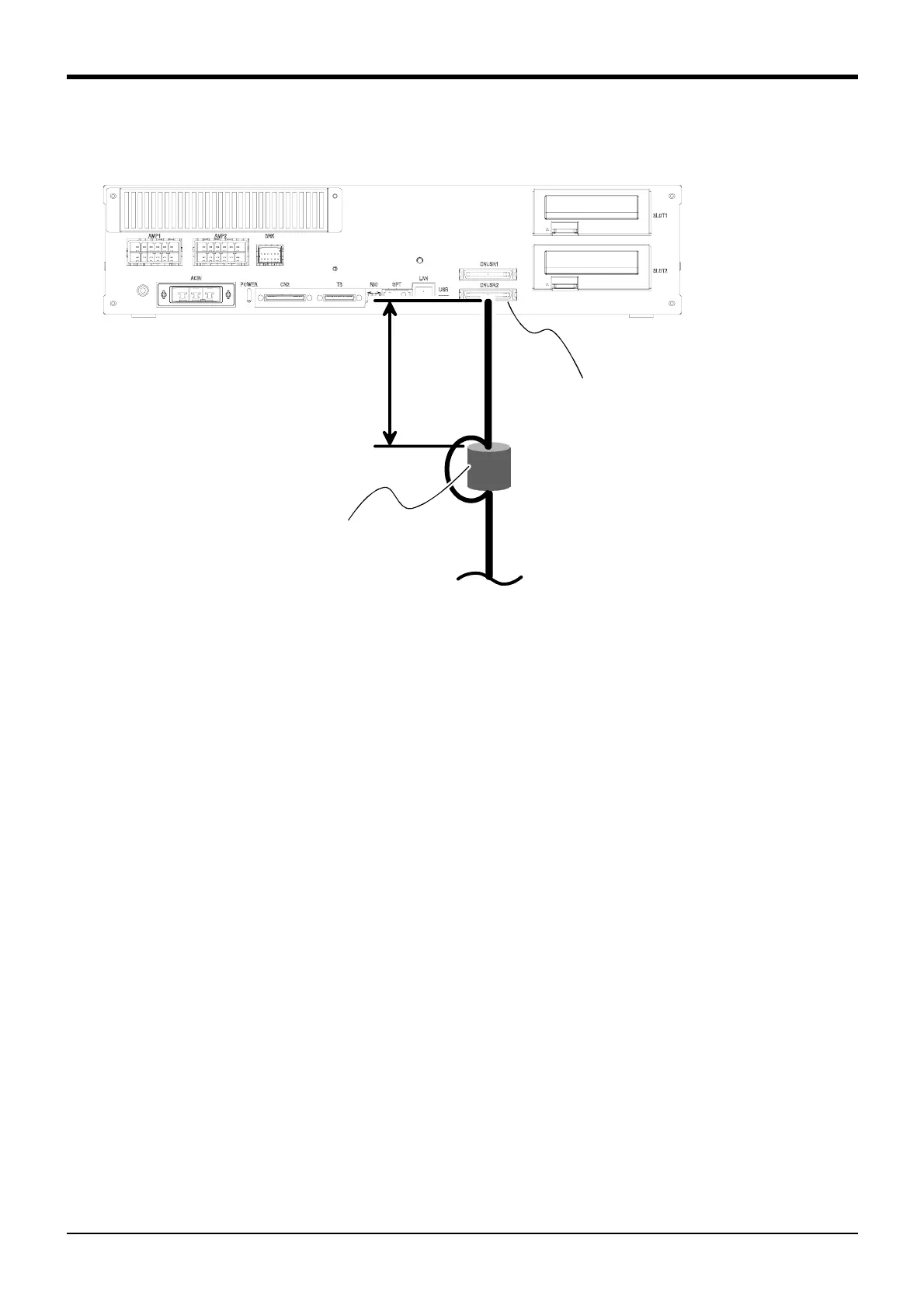

Fig.3-17 ： Connection of the special-stop-input (CR751)
30cm以内
フェライトコア
2回通し
CNUSR2コネクタ
* Connects with CNUSR2 connector
with soldering.
Refer to Page 59 "Fig. 3-15: Method
of wiring for external emergency stop
connection (CR751 (CNUSR1/2))".
Within 30cm
CNUSR2 connector
Ferrite core
Pass twice
Note) RV-2F series has operation panel.
