Mitutoyo ID-C - Externally Outputting the Displayed Value

34
4 Measurement Method
No. 99MAH057A
(Short press) / (Long press)
4.7
ExternallyOutputtingtheDisplayedValue
Display values can be output to various external devices (external display,
external printer, PC, etc.) by connecting a connection cable to this product.
Tips
• For connection cables (optional) that can be connected to this product, refer to
"10 Accessories (Optional)" on page 91.
• Refer to
"8 Input/Output Functions" on page 81 for details about pin
assignments of connection cables, output data format, and timing chart.
• Carefully read the User's Manual of the data processing device to be connected
when using the External Output function.

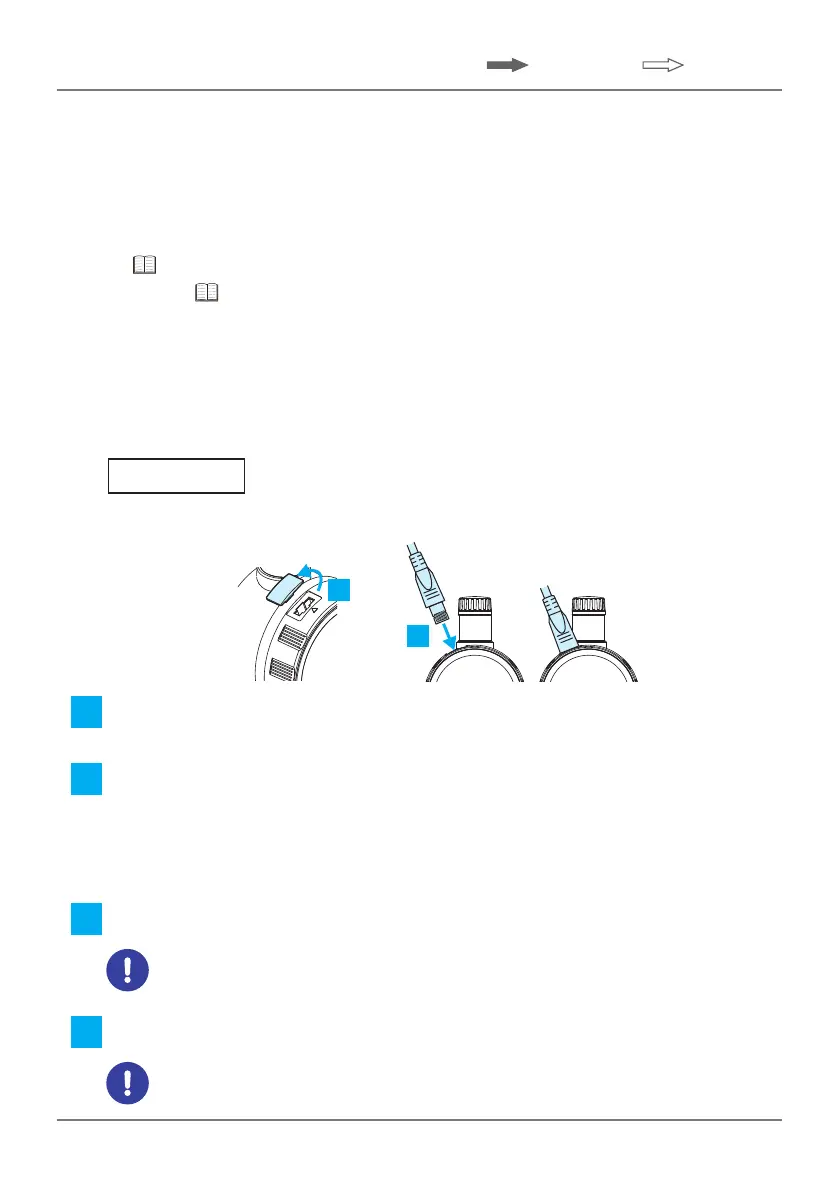

4.7.1 Connecting with External Devices
NOTICE
Do not pull the connection cable with force. This may cause damage.
3
2
Cover
Connection cable
1 Pressandholdthe[F3]key.
» Powerturnso󰀨.
2 Remove the cover of the I/O connector of this product.
Tips
• Store the removed cover to prevent loss.
• Always install the cover if a connection cable is not used.
3 Connect the connection cable to this product.
When inserting a connection cable, pay attention to the connector direction
(alignthe▲marks).
4 Connecttheotherendtotheexternaldevice.
When removing the connection cable, hold the connector on the tip.
