CHAPTER 1: DESCRIPTION
UNIFLOW
®
2 PULSED THERMODE CONTROL
1-6 990-228

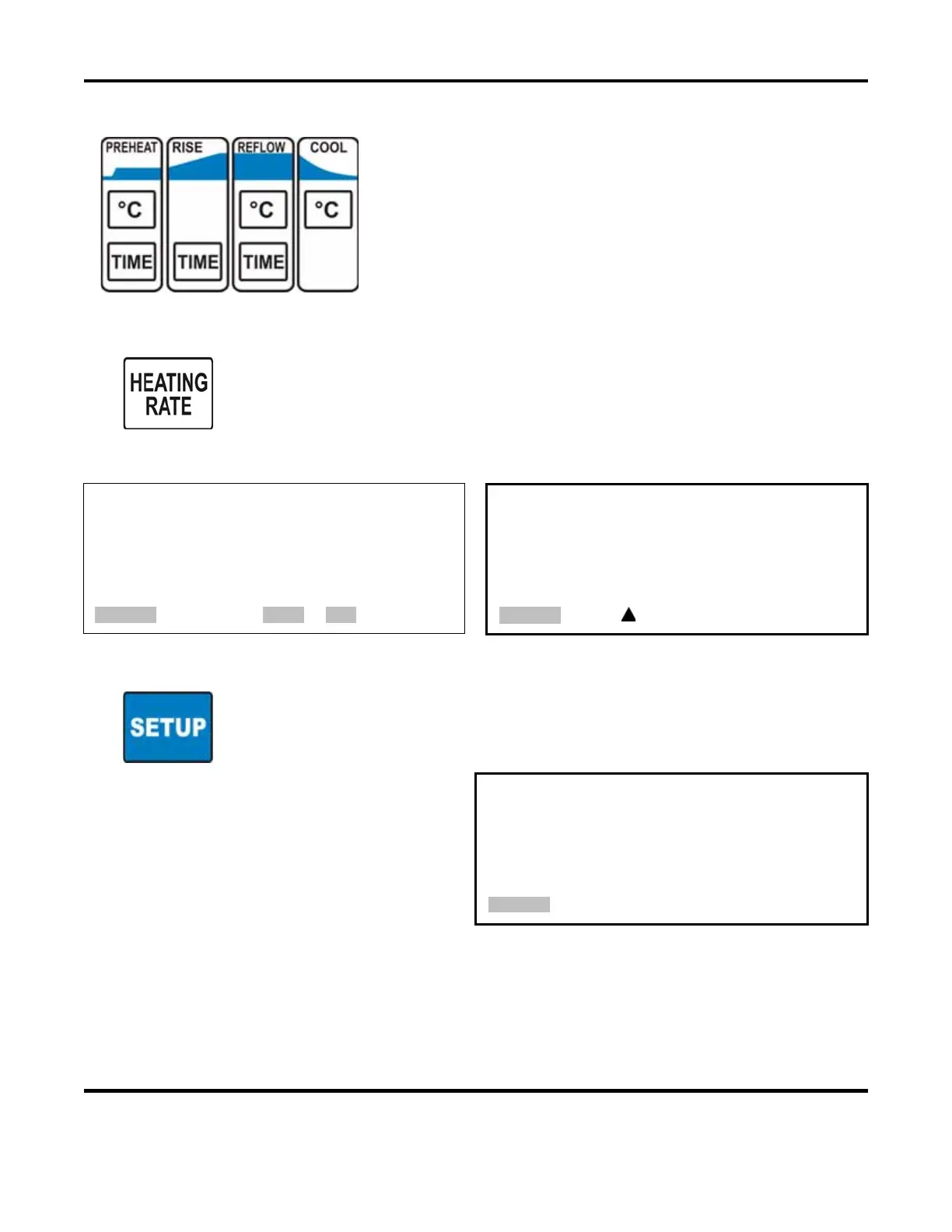

DATA EDIT Keys
The data edit keys allow you to edit the time and temperature
parameters of the heat profile on the graphic display. The
PREHEAT, RISE, REFLOW and COOL keys are vertically
aligned with the profile heating states as displayed on the
graphic screen.
These keys are only active when the graphic screen is
displayed.
HEATING RATE Key
The HEATING RATE key brings up the MANUAL TUNING screen. This screen
screen allows you to go to the SET COARSE HEATING RATE and SET FINE
HEATING RATE
heating rate capability to match the heat generating capability of
the thermode to minimize the temperature overshoot and undershoot. See
Chapter 3, Using Programming Functions for details.
<MANUAL TUNING >
1. Set Coarse Heating Rate : MEDIUM
2. Set Fine Heating Rate : 98%
NUMBER Select an item, Graph or Data
<SET COARSE HEATING RATE >
1. Very Slow
2. Slow
3. Medium
4. Fast
NUMBER Select , Page, Graph or Data
SETUP Key
This key brings up the
SETUP MENU screen.
The
SETUP MENU screen provides a menu of
operating characteristics for the Control.
< SETUP MENU >
1. HARDWARE SETUP 4. SYSTEM SECURITY
2. COMMUNICATIONS 5. COPY PROFILE
3. REFLOW SETUP
NUMBER Select an item, Graph or Data
