CHAPTER 2: INSTALLATION AND SETUP
UNIFLOW
®
2 PULSED THERMODE CONTROL
2-2 990-228
Section II: Connections To External Equipment
Overview

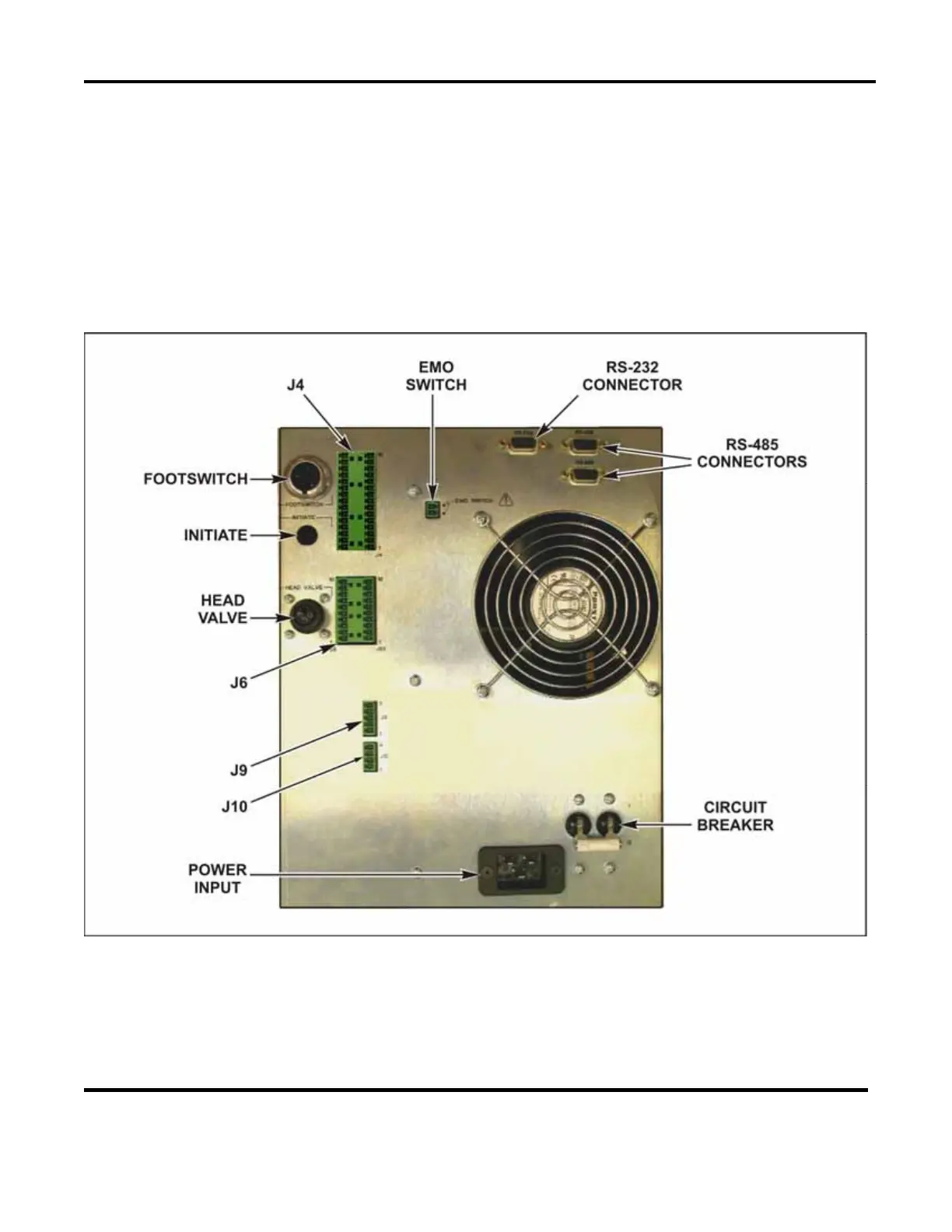

All connections, other than the transformer cable connections, between the Control and external
equipment are made through the rear panel. The transformer cable connections from the reflow
soldering or heat seal head are made at the transformer cable terminals on the front panel.
NOTE: If you require compressed air, cover gas, and cooling water service for the reflow soldering
or heat seal head, please refer to the head manufacturer’s user’s manual for service specifications.
