TIME
The time format is made up of the
following:
HH:MM:SS
(hour:minute:second)
RENEW MAIN VIEW
This can prevent the necessity for renewed
set-up of the main display window for each
new selected program in the event of an
external program selection. Set-up of the
main display window takes time. It is also
necessary for SPC when configuring
quadrant windows, and to ensure that
these quadrant windows are configured the
same for each program, as the SPC card
will otherwise be reset.
Deactivation of this option is therefore
advantageous when rapidly switching
programs and utilizing the SPC charts, as
the main display need only be configured
once.
• Next, select button SYSTEM with the
knob/pushbutton combination and depress
button.

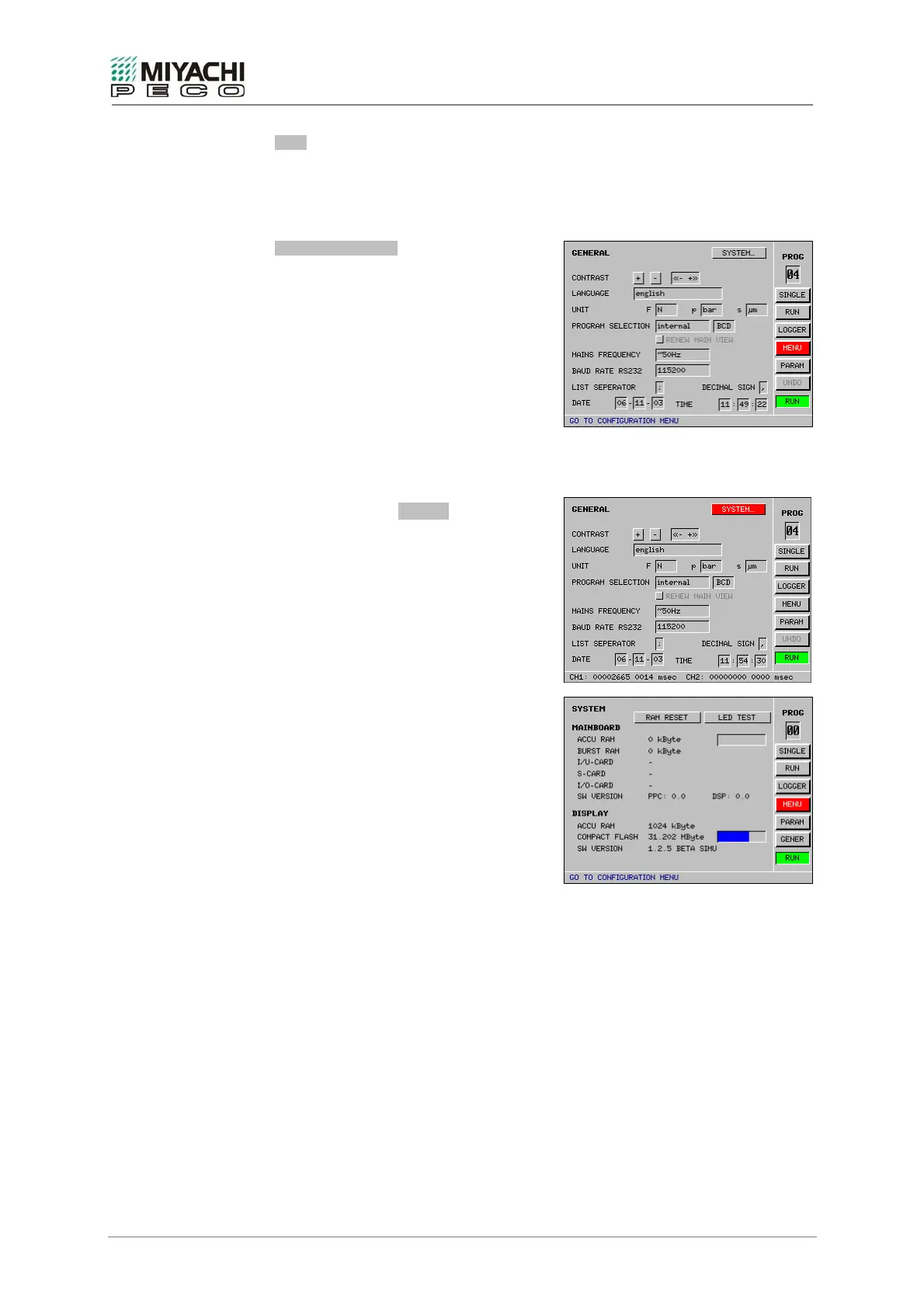

Screen SYSTEM opens.
This screen displays general system
information.
Among others, about:
- the main board
(RAM assignment, built-in plug-in
cards, hardware version, software
version PPC and DSP)
- the display
(RAM assignment, compact flash card
or MicroDrive memory capacity,
display software version)
To Next Page
