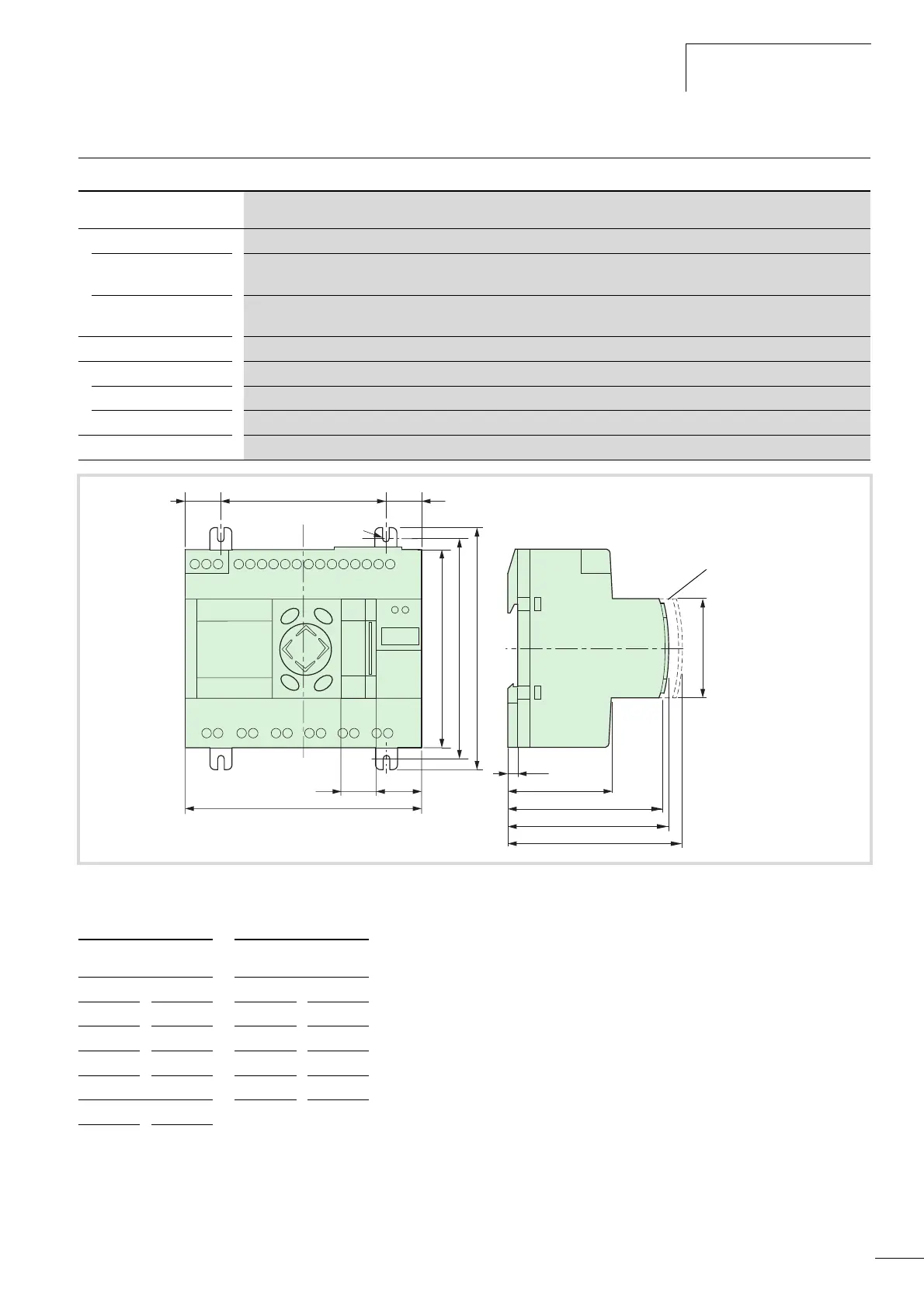

05/06 AWB2724-1584GB
Dimensions and weight
67
Dimensions and
weight
Table 14:
Dimensions in inches
Dimensions W
x
H
x
D
[mm]
with adapter for MMC
107.5 x 90 x 72
107.5 x 90 x 79
[inches]
with adapter for MMC
4.23 x 3.54 x 2.84
4.23 x 3.54 x 3.11
Space units (SU) width
6
Weight
[g]
320
[lb]
0,705
Mount
ing
Top-hat rail to DIN 50022, 35 mm or screw moun
ting with 3 ZB4-101-GF1 mounting feet
Figure 87:
Dimension in mm (specified in
inches
a
table
14)
90
102
110
M4
107.5
16
21
75
16.25
16.25
48.5
4.5
79
45
70.5
72
EU4A-MEM-CARD1
mm
inches
mm
inches
4,5
0,177
79
3,11
16,25
0,64
90
3,54
48,5
1,91
102
4,01
70,5
2,78
107,5
4,23
72
2,83
110
4,33
75
2,95
70
72
