17.2 Sorter Drive Examples

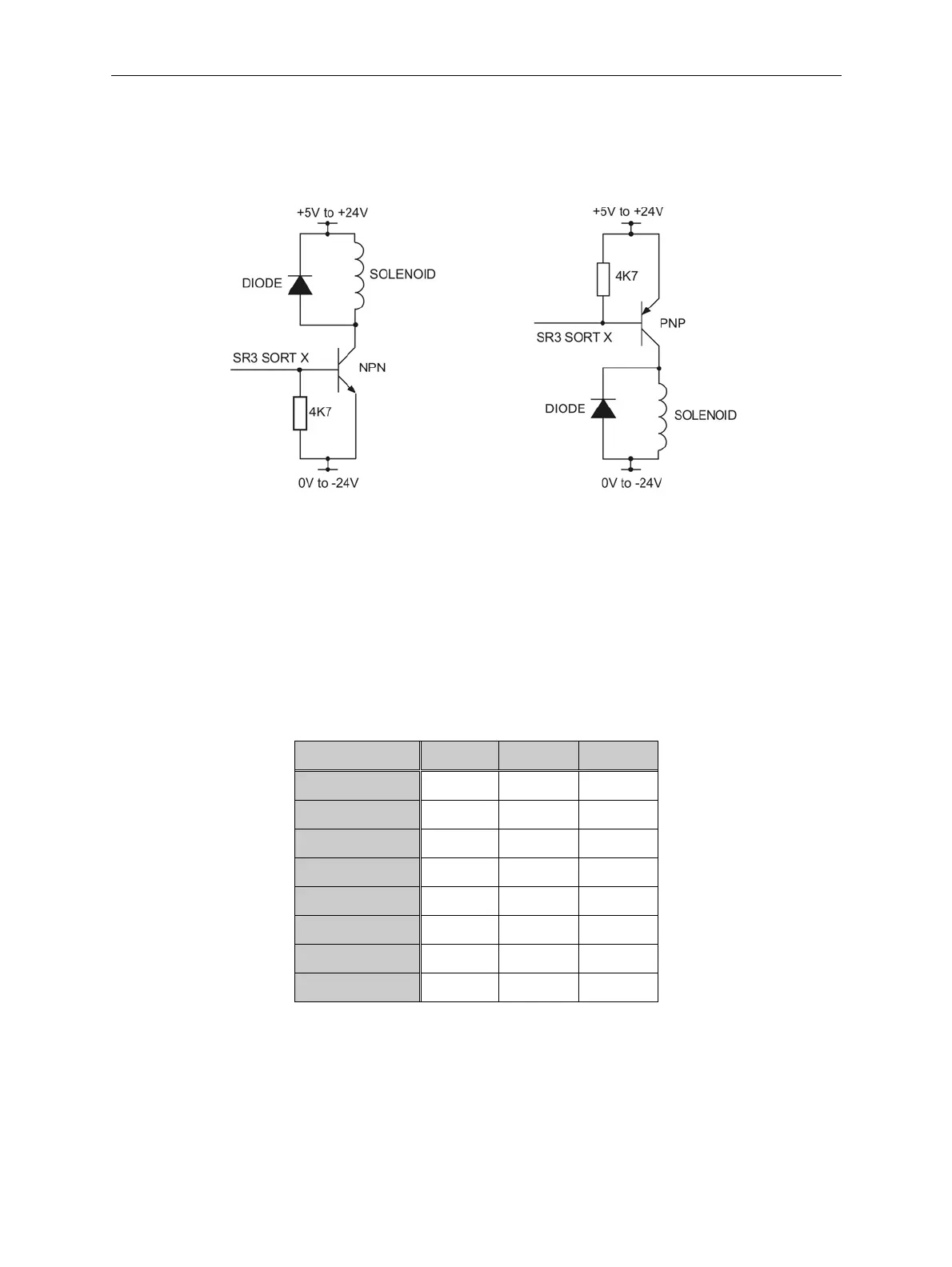

Figure 12: Sorter Drive Examples
These two circuits show how you could use the SR3 output to drive a solenoid. The
transistors used depend on how much current your solenoid requires. The above voltages
show the maximum range you can apply to the SR3 output and you will need to set the
actual voltage to match your solenoid.
17.3 Sort Outputs v Sorter Paths
Table 10: Sort Outputs v Sorter Paths
Sorter Path Sort 1 Sort 2 Sort 3
1
100
2
010
3
000
4
110
5
101
6
011
7
001
8
111
1 = Active
