25.4 Circuit 4 – ccTalk PC Interface
The circuit below shows how to connect the 9-pin serial port of a PC to the ccTalk data bus.
The only integrated circuit required is a Maxim level-shifter which operates off a single +5V
supply. Any small-signal diodes and transistors can be used.

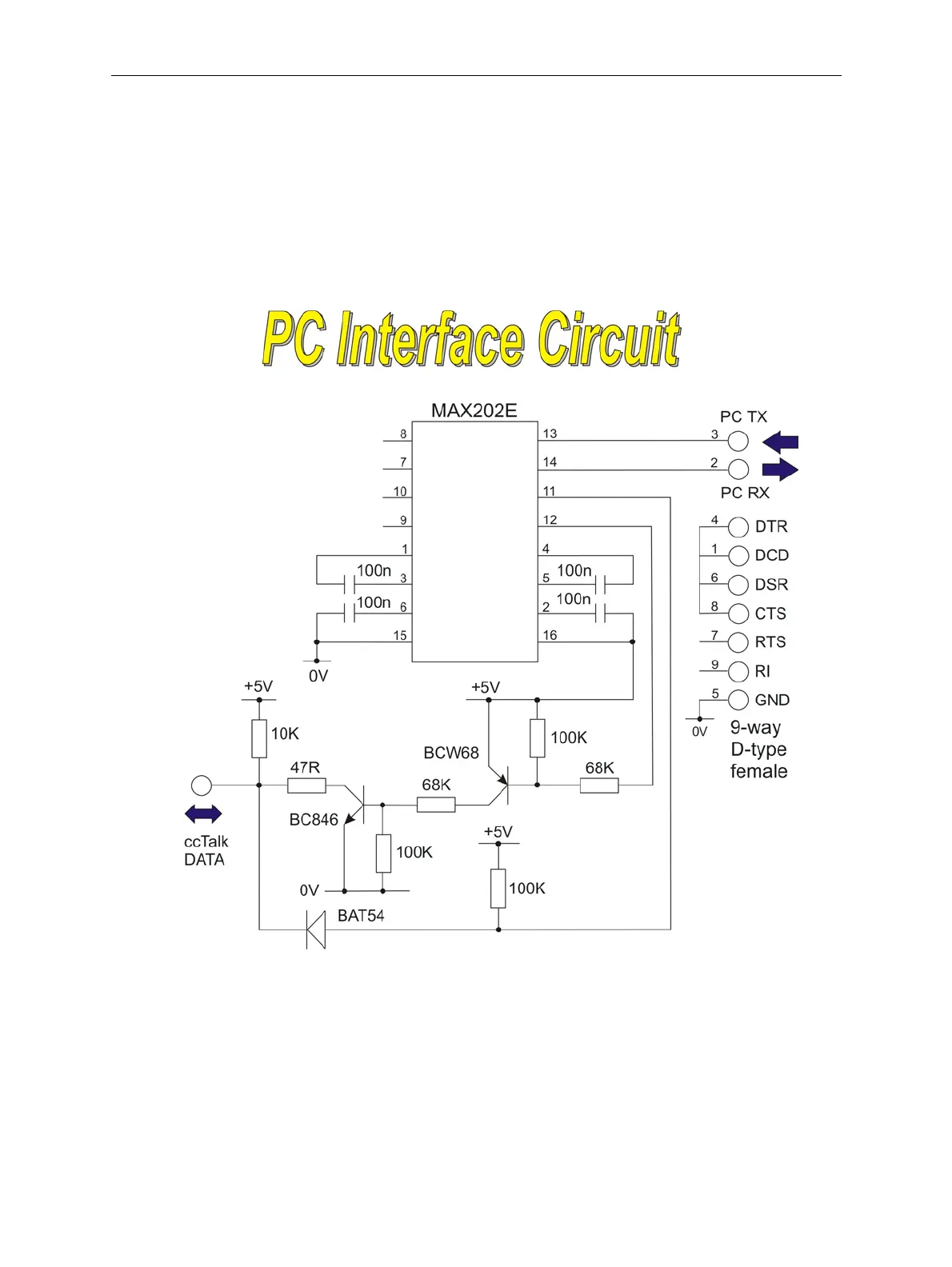

Figure 22: Circuit 4, ccTalk PC Interface
