19. Totalising Options
The following information ONLY applies to a SR3 type 1 (piggy back style
totaliser) and NOT a SR3 type 2 (totaliser in-built)

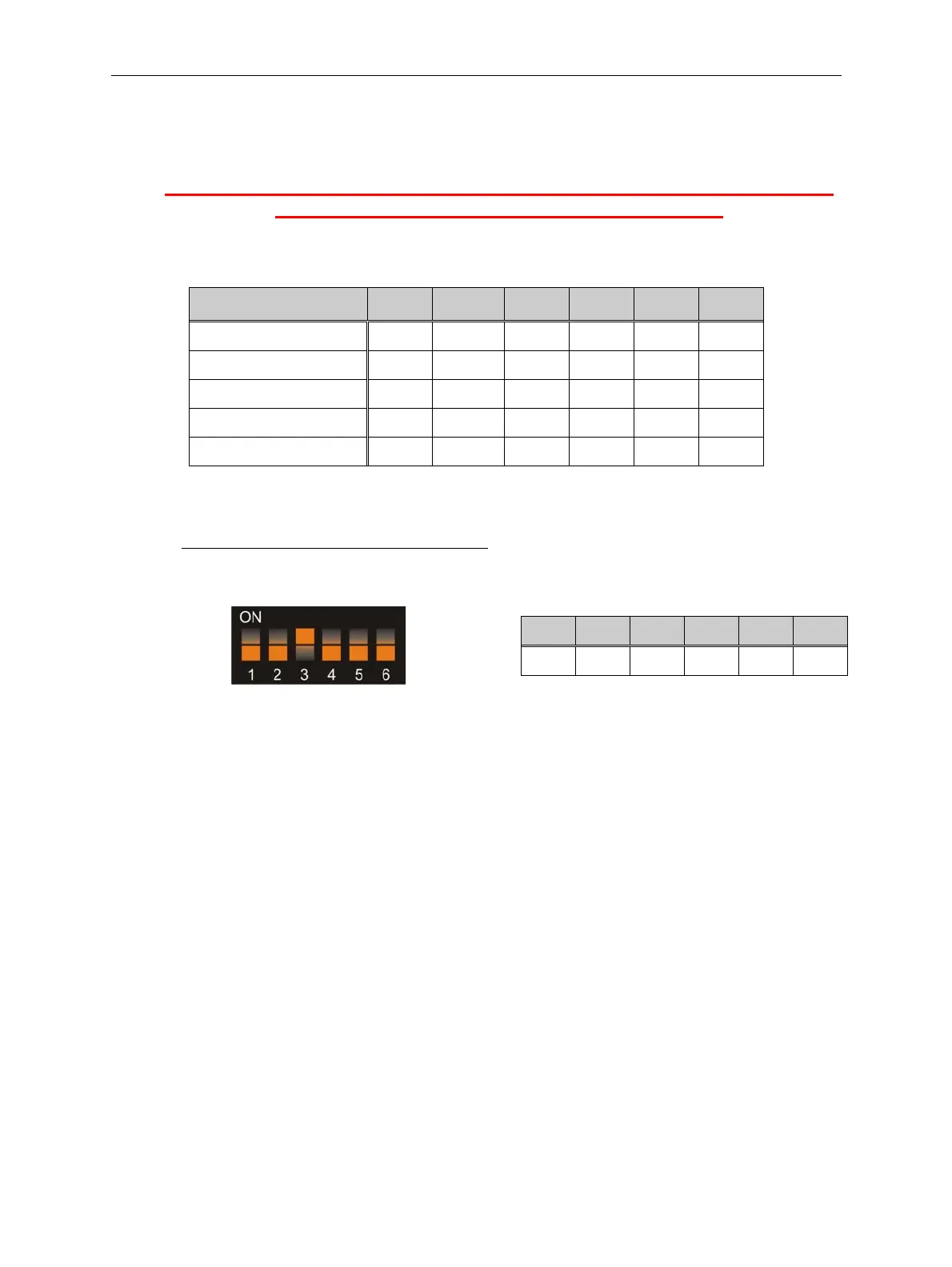

Table 12: SR3 Totalising DIL Switch Guide
FUNCTION
SW1 SW2 SW3 SW4 SW5 SW6
Set Game Price off off
ON
off off off
Set Bonus Level 1 off
ON ON
off off off
Set Bonus Level 2 off
ON ON ON
off off
Set Bonus Award 1
ON ON ON
off off off
Set Bonus Award 2
ON ON ON ON
off off
19.1 Set a Game Price
Example:- To set the price of 1 game at £1
Switch off the power to the SR3.
Set the Program DIL switches to:-
SW1 SW2 SW3 SW4 SW5 SW6
OFF OFF
ON
OFF OFF OFF
Switch on the power to the SR3.
Press the reject lever within 20 seconds.
The LED will turn RED.
Insert any combination of programmed coins that total £1 and check that they are accepted,
i.e. 1 x £1, 2 x 50p, 5 x 10p + 1 x 50p etc.
Press the reject lever to return to normal operational mode.
The LED will turn GREEN.
Return ALL the DIL switches to the OFF position.
