18.2 CMETER
CMETER (coin meter) sends out a number of active low pulses every time a coin is
discriminated and accepted, the number of pulses and their time width is pre-programmed at
MCL, or using a ccProgrammer. See Table 13

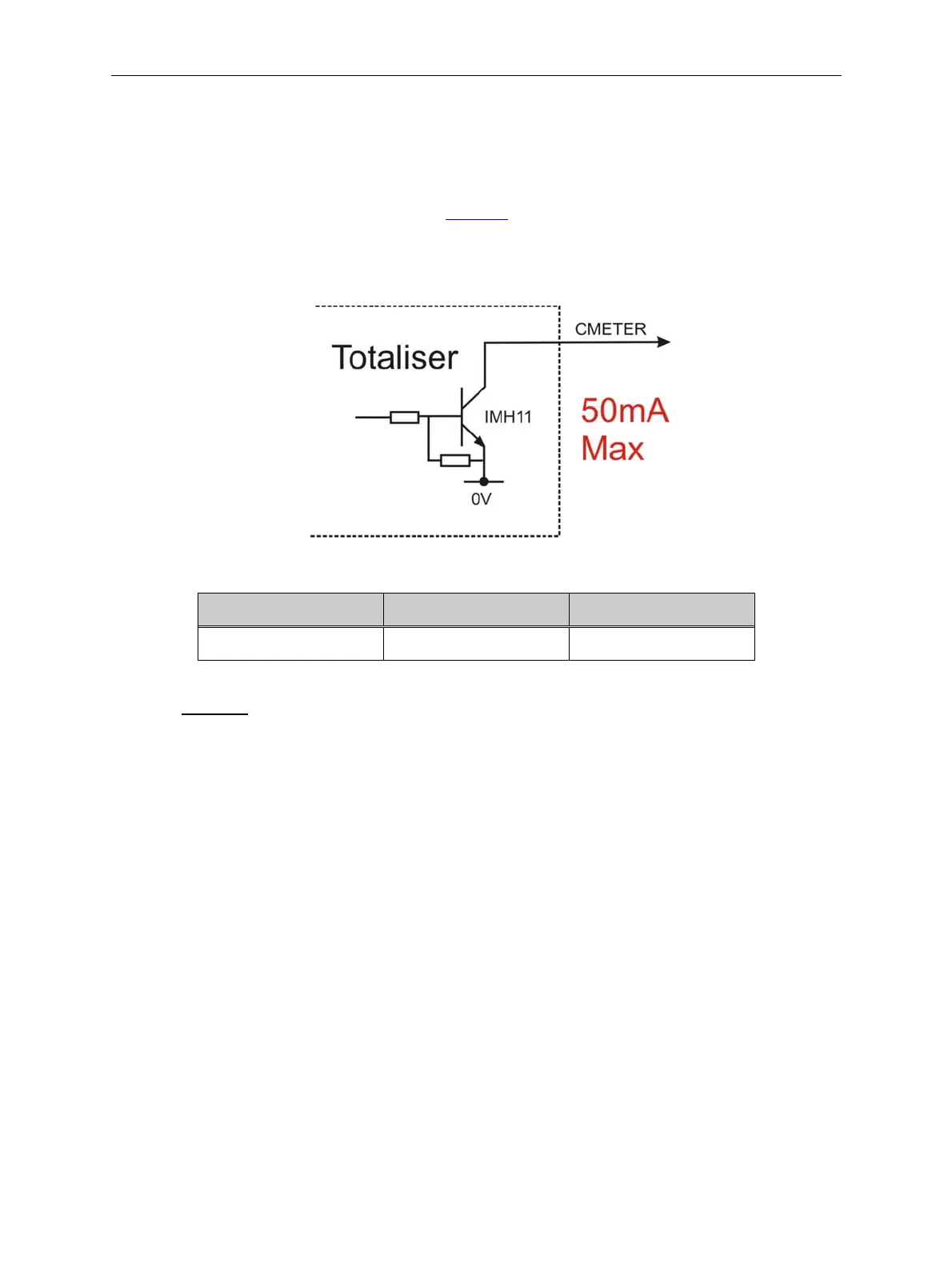

Figure 13: CMETER Output
OFF State Voltage ON State Voltage Sink Current
+30V DC Max +0.5 V DC Max 50mA Max
Example:
If a coin is accepted by the SR3, which has a credit value of 80 and the Coin Meter Scalar
value is 20 then 4 pulses are output by the CMETER pin.
