SR3 Type 1 Technical Manual TSP005.doc Issue 5.0 – Jan 2005

Page 30 of 50

18.5 Dispense 1 to 4

Indication from the host machine that it is ready for a Game pulse from the corresponding

PLAYER 1 to 4 output.

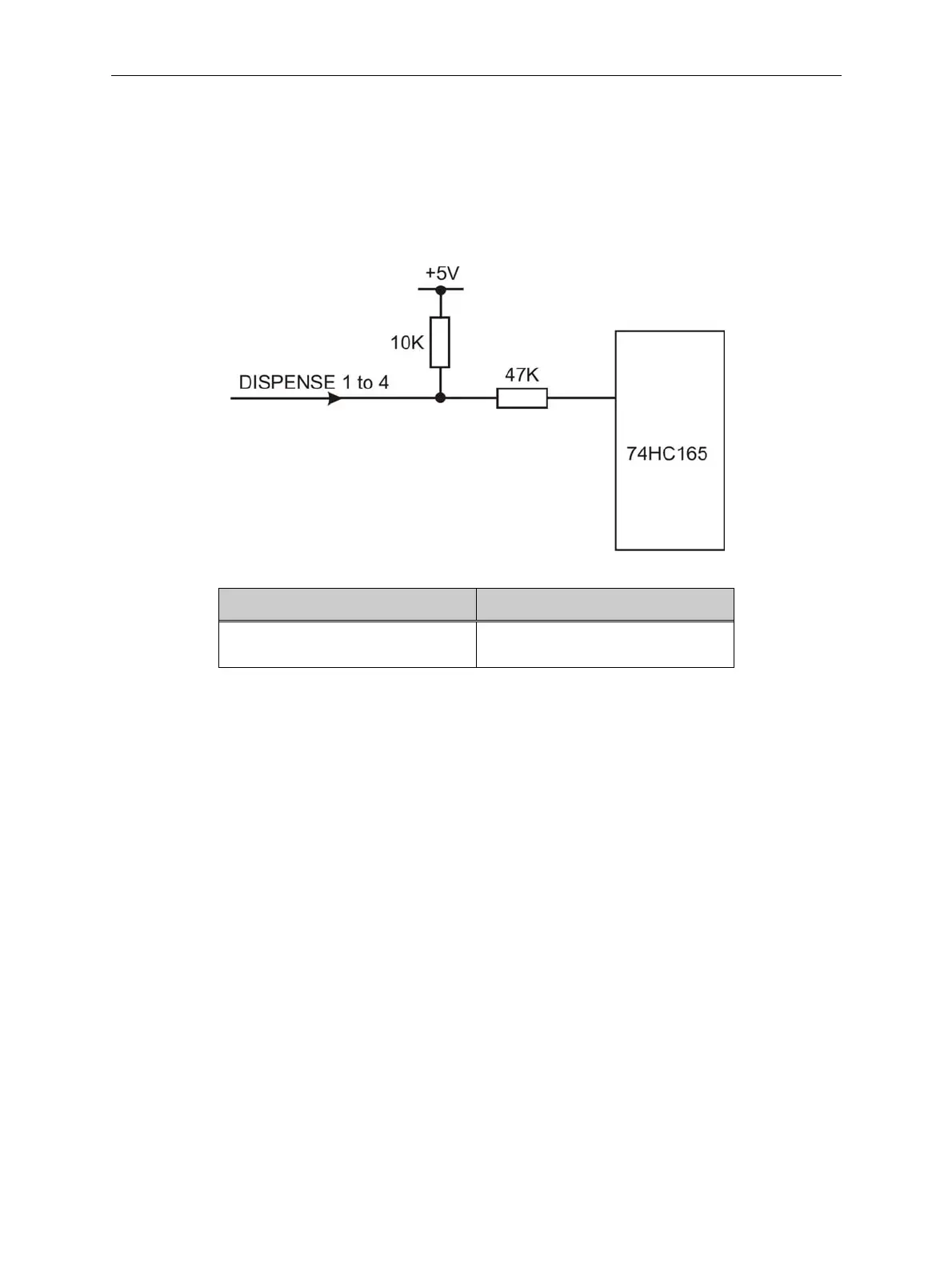

Figure 16: Dispense 1 to 4 Inputs

Inactive Vin Active Vin

> +4V DC (+30V DC Max) Between 0V and +1V DC
