HTP-1 Installation and User Guide Release 1.8.1
Example Speaker Setups

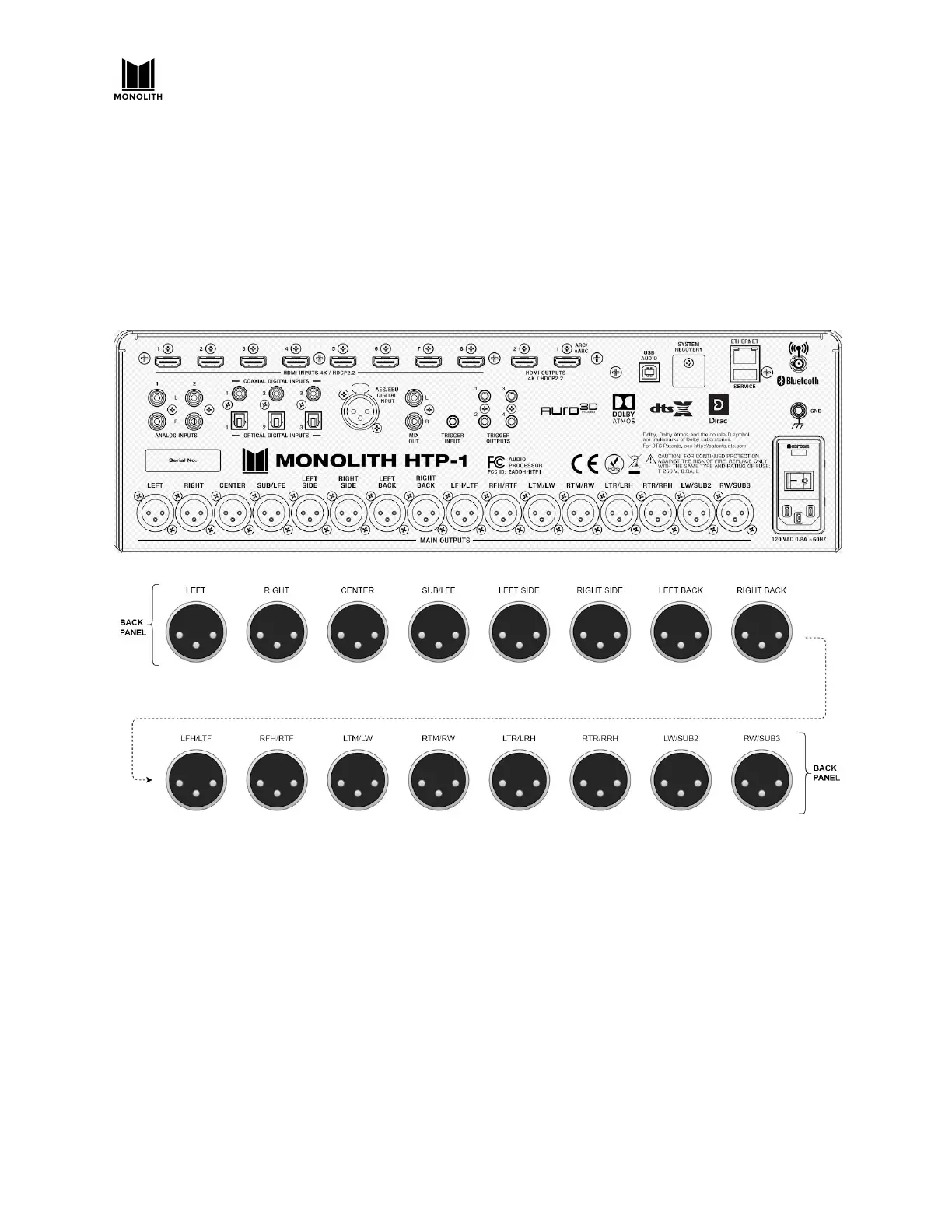

The back panel of the unit is shown below along with a diagram of the XLR connectors on the back of the
HTP-1. The diagram will be used in the following sections to show you how to connect an amplifier to
the unit for various speaker configurations. In the diagram, the XLR connectors have been divided into
two rows to make it easier to fit the information on a single page.
As you use all 16 channels, the order of channels assigned to the back panel varies with your choice of
speakers. The actual assignment is displayed at the bottom of the speaker configuration page.
HTP-1 User Manual Page 36 V1.8.1
