Speaker Location Diagrams

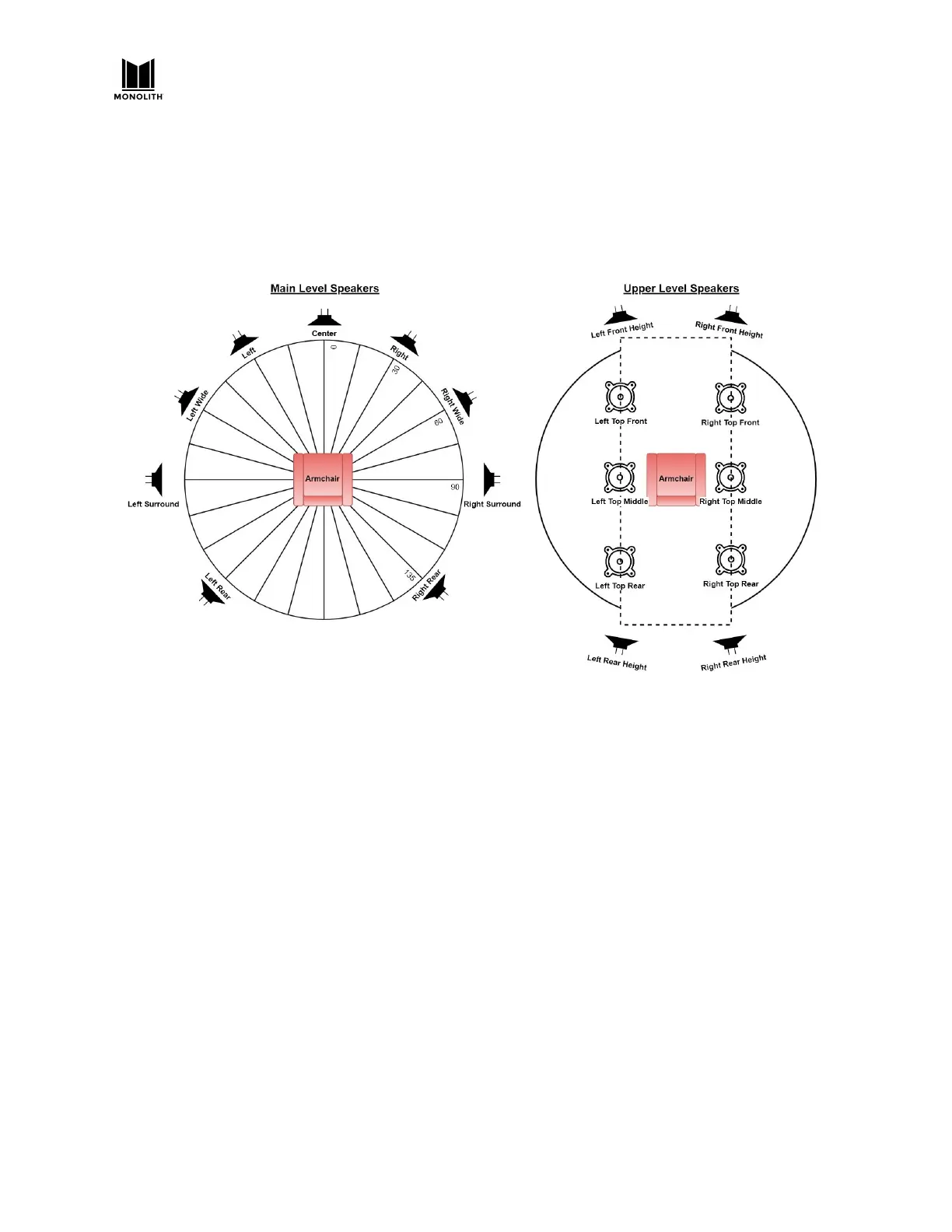

These two diagrams illustrate the ideal placement of main level and upper level speakers. Real world
rooms may not allow for ideal placement. This is just a guide. Do the best you can. The main level
speakers should be placed at the ear level of the listener. The upper level speakers should be mounted
high on the wall or on the ceiling. All speakers should be aimed in the direction of the listener.
Dolby Atmos™ favors top speakers on the ceiling. DTS-X™ and Auro3D™ favor height speakers on the
wall. As the following section on mapping channels to speakers points out, the HTP-1 uses standard
compliant mapping techniques to support any of these speaker locations.
Speaker installation references published by Dolby and AuroTechnologies are readily available on the
internet. See
Dolby Atmos® Home Theater Installation Guidelines, dated Dec 2018
and
AURO-3D® HOME THEATER SETUP, Installation Guidelines, version 6 dated 2015.
The official DTS reference is harder to find, but we include it here, with some comment.
