Operating Manual
PulseNG Kit
Communication Ports
LAN
For connection of a Cat5 cable with straight outlet.
Serves to communicate with the user interface Pu lse NG-hmi.
Can also be used for servicing.
LED #1 Communication signal yellow
LED #2 Activity signal green

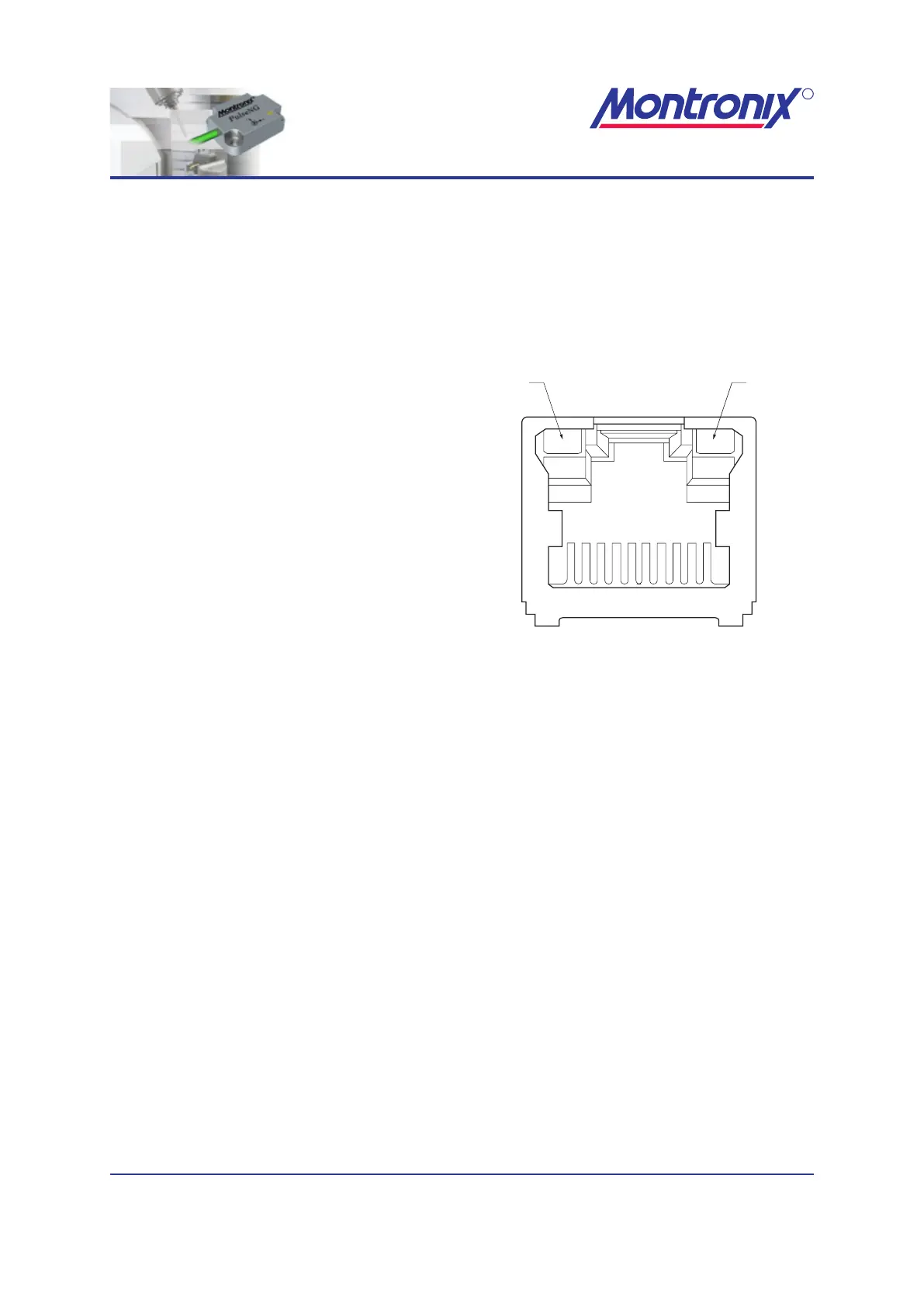

Figure 3: LAN connection
USB
For service purposes only. Settings can be changed via terminal program.
Serial interface
Not yet in use.
