Moog Matriarch User Manual

43
UTILITIES (2) (Continued)

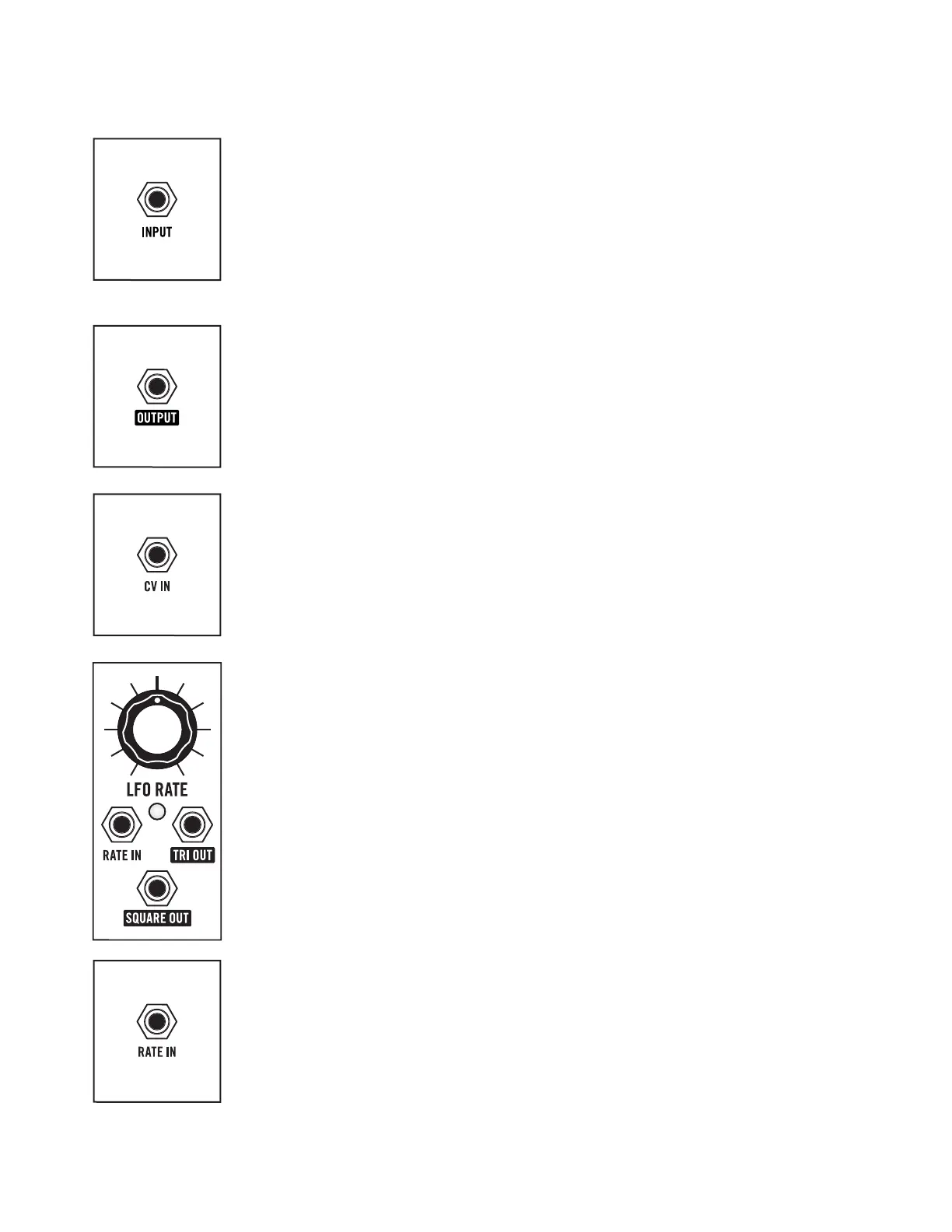

INPUT
Any audio or control signal connected to this jack will be fed into the Attenuator.
CV/AUDIO INPUT: -8V to +8V
NOTE: An 8-Volt DC source is normalled to the input of each Attenuator. With nothing
connected to the INPUT jack, the voltage present at the Attenuator’s OUTPUT jack is
based on the position of the ATTENUATOR knob, and any control signal applied to the
Attenuator CV IN jack.
OUTPUT
This OUTPUT jack delivers the attenuated version of the signal connected to
the Attenuator INPUT jack.
CV OUTPUT: -8V to +8V
NOTE: The Utilities (2) module contains one Attenuator. Two more Attenuators are
available in the Utilities (1) module.
CV IN
A control signal received here is added to the value of the ATTENUATOR knob
to determine the final amount of attenuation.
CV INPUT: -8V to +8V
PATCHABLE LFO
This LFO (Low Frequency Oscillator) provides Matriarch with a patchable
modulation source separate from the Modulation oscillator. Two waveforms,
Triangle and Square, are available simultaneously, and the rate of the LFO
can be modulated via control voltage.
RATE
The Rate, or speed, of the LFO can be set from .07 Hz to 520 Hz using the RATE
knob. The LED indicator below this knob will flash at the current Rate setting.
RATE IN
A control signal connected to the RATE IN jack will be added to the value of
the LFO RATE knob to determine the final LFO Rate.
CV INPUT: -8V to +8V
NOTE: Applying a control voltage to the RATE IN jack will allow the LFO to exceed the
maximum 520 Hz available via the LFO RATE knob, and reach frequencies of up to
approximately 620 Hz.

Moog Matriarch Specifications

General

Product type	Analog synthesizer
Sound effects	Delay
Sound effects quantity	1
Keyboard number of keys	49
Maximum polyphony (notes)	4
MIDI in	Yes
6.35 mm (1⁄4-inch) input	3
6.35 mm (1⁄4-inch) output	2
Input voltage	240 V
DC input voltage	12 V
Power source type	DC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	361 mm
Width	810 mm
Height	139 mm
Weight	13610 g
