Moog Matriarch User Manual

58

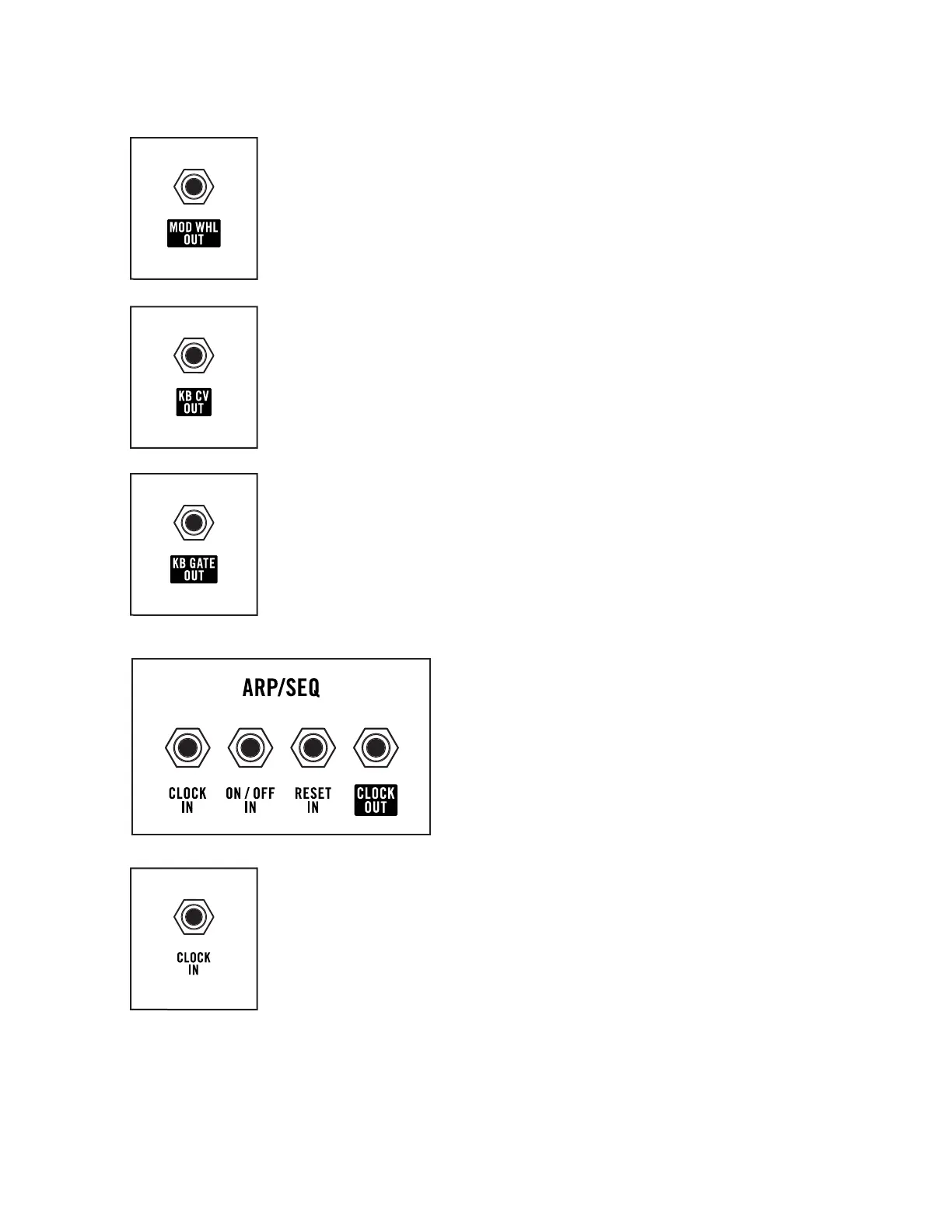

MOD WHL OUT (Modulation Wheel CV Out)
The position of the MOD wheel generates a control-voltage signal that is
available here. The signal available here can be routed to any controllable
parameter, either internal to Matriarch or on any other synthesizer.
CV OUTPUT: 0V to +5V (0V to +10V selectable via Global Settings)
KB CV OUT (Keyboard CV Out)
The Matriarch keyboard generates a control-voltage signal based on the note
being played on the keyboard. The signal available here can be routed to any
controllable parameter, either internal to Matriarch or on any other synthesizer.
CV OUTPUT: -5V to +5V (0V to +10V selectable via Global Settings)
KB GATE OUT (Keyboard Gate Out)
The Matriarch keyboard generates a control-voltage signal based on the note
being held on the keyboard. The signal available here can be routed to any
controllable parameter, either internal to Matriarch or on any other synthesizer.
GATE OUTPUT: +5V (+10V selectable via Global Settings)
ARP/SEQ JACKS
This group of jacks is dedicated to synchronizing the
Arpeggiator or Sequencer with other analog instruments.
CLOCK IN
This input allows Matriarch to be synchronized to an external clock source such
as a DFAM, Mother-32, or any other instrument that outputs clock sync. When
the input of a clock’s rising edge is detected, the Sequencer or Arpeggiator
pattern is advanced by one step. In this mode, the R ATE knob selects timing
values that are clock divisions of the external tempo.
CV INPUT: Rising signal > 3.6V will create a Sync pulse.
NOTE: Matriarch can also receive Clock information via MIDI.
REAR PANEL (Continued)

Moog Matriarch Specifications

General

Product type	Analog synthesizer
Sound effects	Delay
Sound effects quantity	1
Keyboard number of keys	49
Maximum polyphony (notes)	4
MIDI in	Yes
6.35 mm (1⁄4-inch) input	3
6.35 mm (1⁄4-inch) output	2
Input voltage	240 V
DC input voltage	12 V
Power source type	DC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	361 mm
Width	810 mm
Height	139 mm
Weight	13610 g
