Moog Matriarch User Manual

59

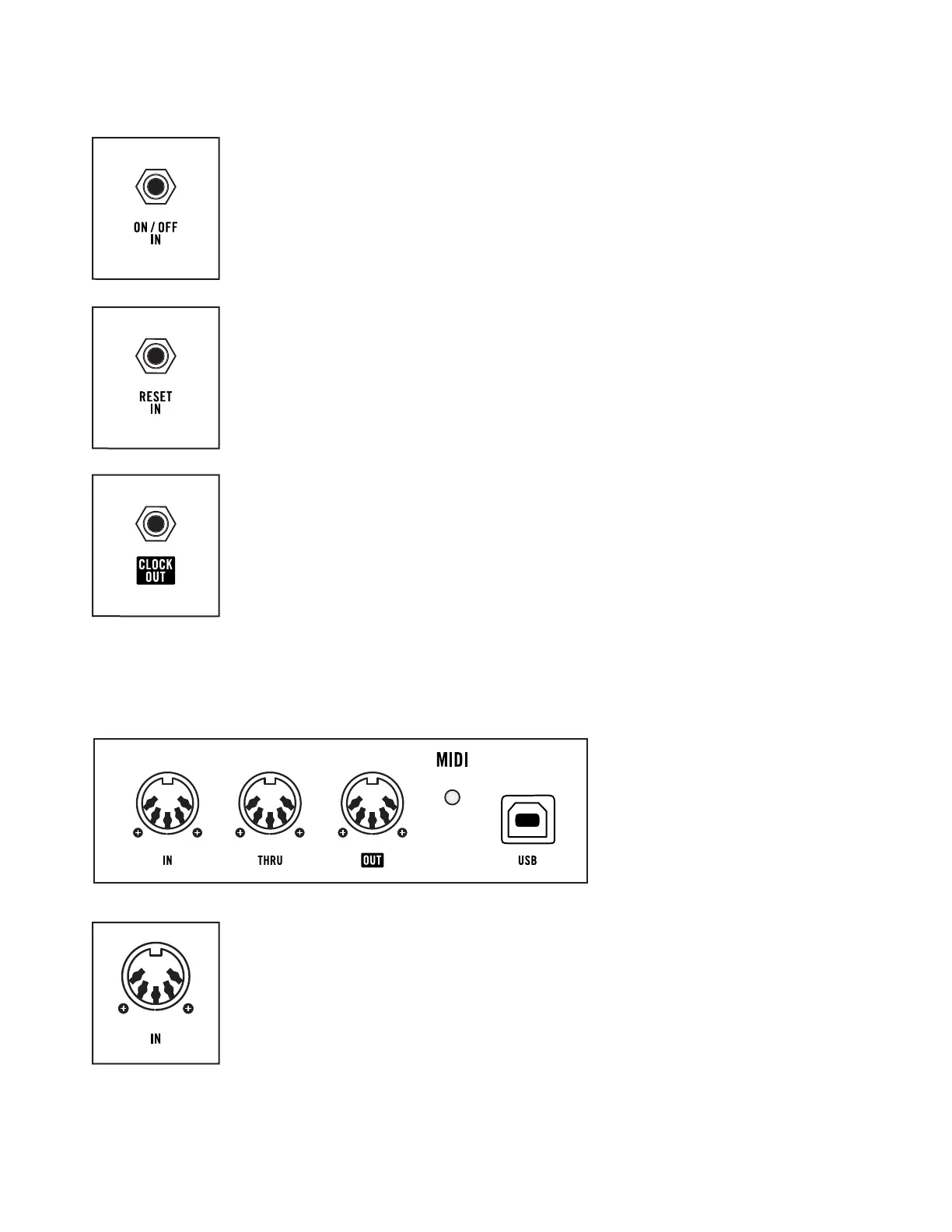

ON / OFF IN
By default, a signal received here will arm and disarm the playback of the
Arpeggiator or Sequencer. Press the notes to be arpeggiated, or the starting
note of the sequence, to begin playback.
CV INPUT: < 1V = Stop ; > 3.6V = Start
RESET IN
A signal received here will force the Arpeggiator or Sequencer to immediately
reset to the first step, without stopping.
CV INPUT: A rising signal > 2.5V will create a Reset pulse
NOTE: The first step in a sequence or Arpeggiation will be played repeatedly for as
long as a voltage is applied to this input.
CLOCK OUT
This output allows Matriarch to transmit clock sync to other instruments while
the Arpeggiator or Sequencer is running. The Clock Out rate is determined
by the ARP / SEQ master tempo, and the global Clock Out PPQN setting.
Accessing the Global Settings can allow the clock signal to be sent at all times.
CV INPUT: 0V to 10V
TIP: Matriarch can also send Clock information via MIDI.
MIDI PORTS
Matriarch can share MIDI signals with other MIDI-equipped devices via these 5-pin DIN style jacks.
Matriarch can also share MIDI information with a computer via USB.
NOTE: Firmware updates
are delivered via USB.
MIDI IN
The MIDI IN port can receive MIDI messages sent from an external source.
NOTE: The MIDI LED will blink when a MIDI signal is present at this input.
REAR PANEL (Continued)

Moog Matriarch Specifications

General

Product type	Analog synthesizer
Sound effects	Delay
Sound effects quantity	1
Keyboard number of keys	49
Maximum polyphony (notes)	4
MIDI in	Yes
6.35 mm (1⁄4-inch) input	3
6.35 mm (1⁄4-inch) output	2
Input voltage	240 V
DC input voltage	12 V
Power source type	DC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	361 mm
Width	810 mm
Height	139 mm
Weight	13610 g
