Moog Matriarch User Manual

20

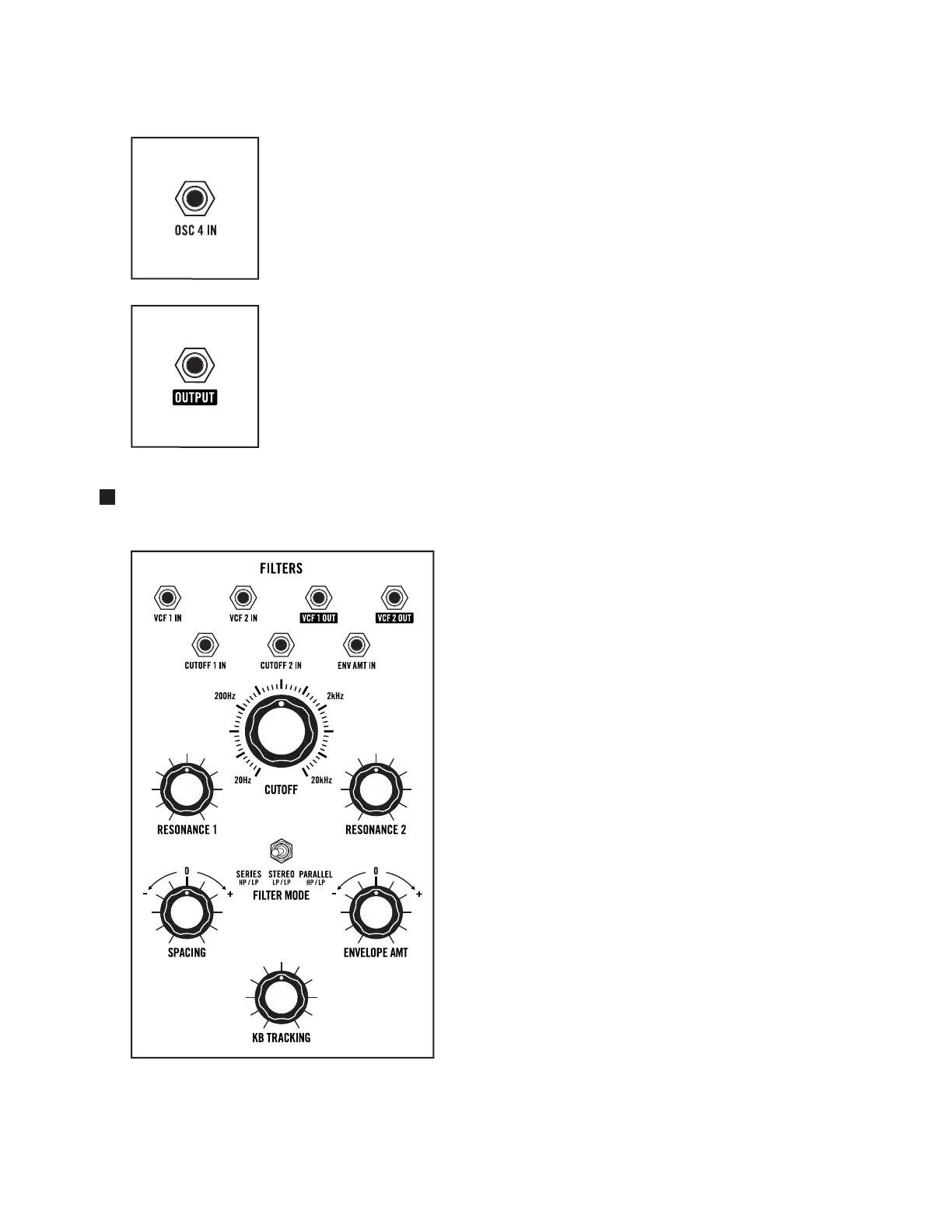

OSC 4 IN
When an external audio source is patched to this input, Oscillator 4 will be
removed from the signal path, and the OSCILLATOR 4 knob will control the
level of the new source.
AUDIO INPUT: -5V to +5V (10V peak-to-peak)
OUTPUT
The combined signal of all audio sources connected to the Mixer is available
at this output.
AUDIO OUTPUT: 10V peak-to-peak
Filters are paramount in shaping the tone of your
sound. While an oscillator’s waveform determines the
harmonic content of a raw wave, it is the filter that
allows that harmonic content to be shaped, sculpted,
and modulated over time to create something truly
unique.
Matriarch’s filters operate in one of three selectable
modes; Series, Parallel, or Stereo. Depending on the
current setting of the FILTER MODE switch, VCF 1 has
the ability to operate in either High Pass or Low Pass
mode, while VCF 2 maintains its Low Pass operation
at all times.
NOTE: A stereo signal path is available from the filters onward.
MODULE PROVENANCE: Matriarch’s filters are based on the
classic Moog 904A module.
MIXER (Continued)
FILTERS

Moog Matriarch Specifications

General

Product type	Analog synthesizer
Sound effects	Delay
Sound effects quantity	1
Keyboard number of keys	49
Maximum polyphony (notes)	4
MIDI in	Yes
6.35 mm (1⁄4-inch) input	3
6.35 mm (1⁄4-inch) output	2
Input voltage	240 V
DC input voltage	12 V
Power source type	DC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	361 mm
Width	810 mm
Height	139 mm
Weight	13610 g
