Moog Matriarch User Manual

19

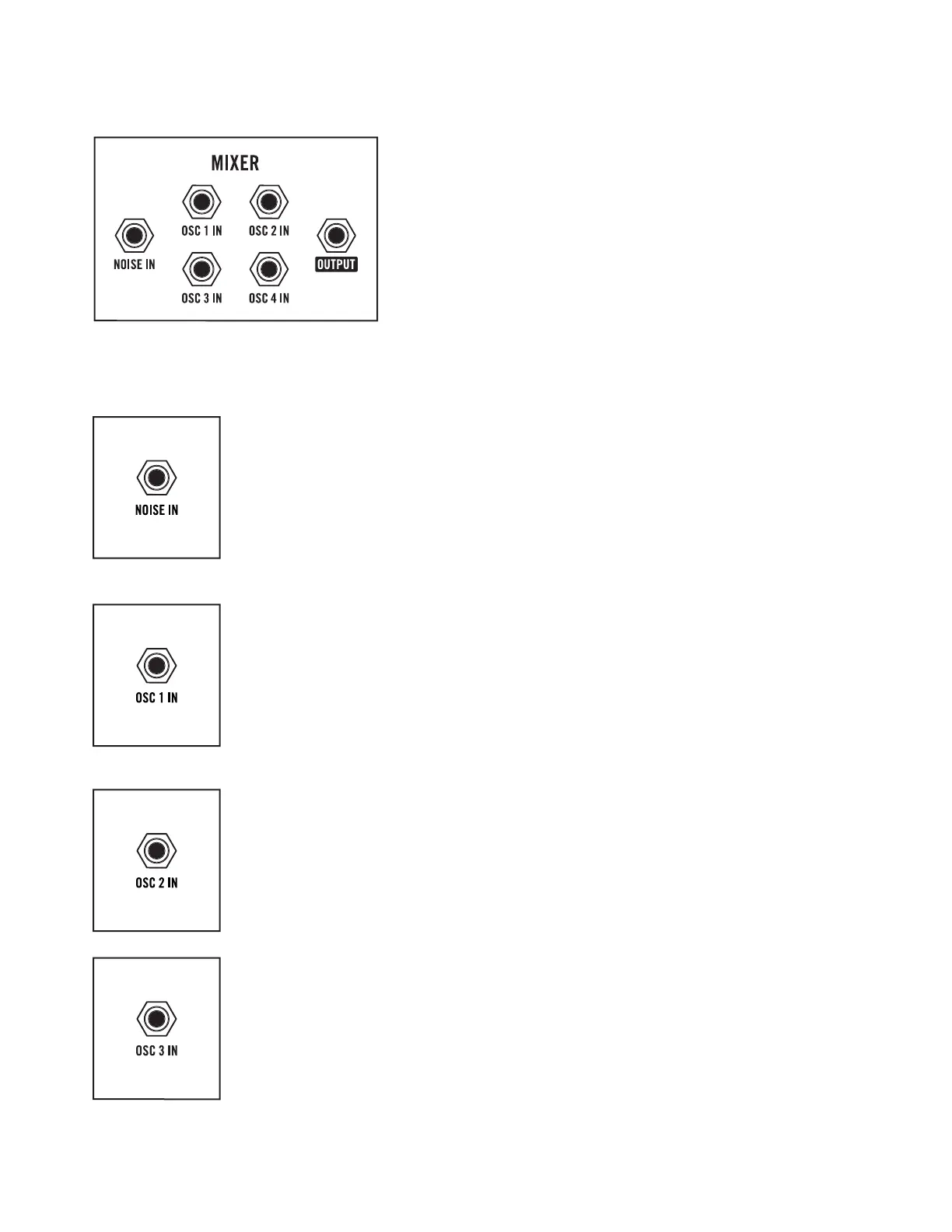

MIXER PATCH POINTS
These Mixer module patch points provide a convenient
way to replace any or all of the internal sound sources
entering the Mixer with an external sound source, such as
a Eurorack oscillator or other electronic music devices.
TIP: Matriarch’s Mixer is DC coupled, which means it can
also be used to sum multiple control voltages. Combining
audio signals with control signals will yield results that can
be unique, bizarre, or completely undesirable.
PERFORMANCE NOTE: Mix gates are located on Oscillator channels 1-4. When in 2-Note or 4-Note Paraphonic
mode, external sources will be dynamically muted just as the onboard oscillators would.
NOISE IN
When an external audio source is patched to this input, the Noise generator
will be removed from the signal path, and the NOISE knob will control the
level of the new source.
AUDIO INPUT: -5V to +5V (10V peak-to-peak)
OSC 1 IN
When an external audio source is patched to this input, Oscillator 1 will be
removed from the signal path, and the OSCILLATOR 1 knob will control the
level of the new source.
AUDIO INPUT: -5V to +5V (10V peak-to-peak)
OSC 2 IN
When an external audio source is patched to this input, Oscillator 2 will be
removed from the signal path, and the OSCILLATOR 2 knob will control the
level of the new source.
AUDIO INPUT: -5V to +5V (10V peak-to-peak)
OSC 3 IN
When an external audio source is patched to this input, Oscillator 3 will be
removed from the signal path, and the OSCILLATOR 3 knob will control the
level of the new source.
AUDIO INPUT: -5V to +5V (10V peak-to-peak)
MIXER (Continued)

Moog Matriarch Specifications

General

Product type	Analog synthesizer
Sound effects	Delay
Sound effects quantity	1
Keyboard number of keys	49
Maximum polyphony (notes)	4
MIDI in	Yes
6.35 mm (1⁄4-inch) input	3
6.35 mm (1⁄4-inch) output	2
Input voltage	240 V
DC input voltage	12 V
Power source type	DC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	361 mm
Width	810 mm
Height	139 mm
Weight	13610 g
