Moog Matriarch User Manual

10

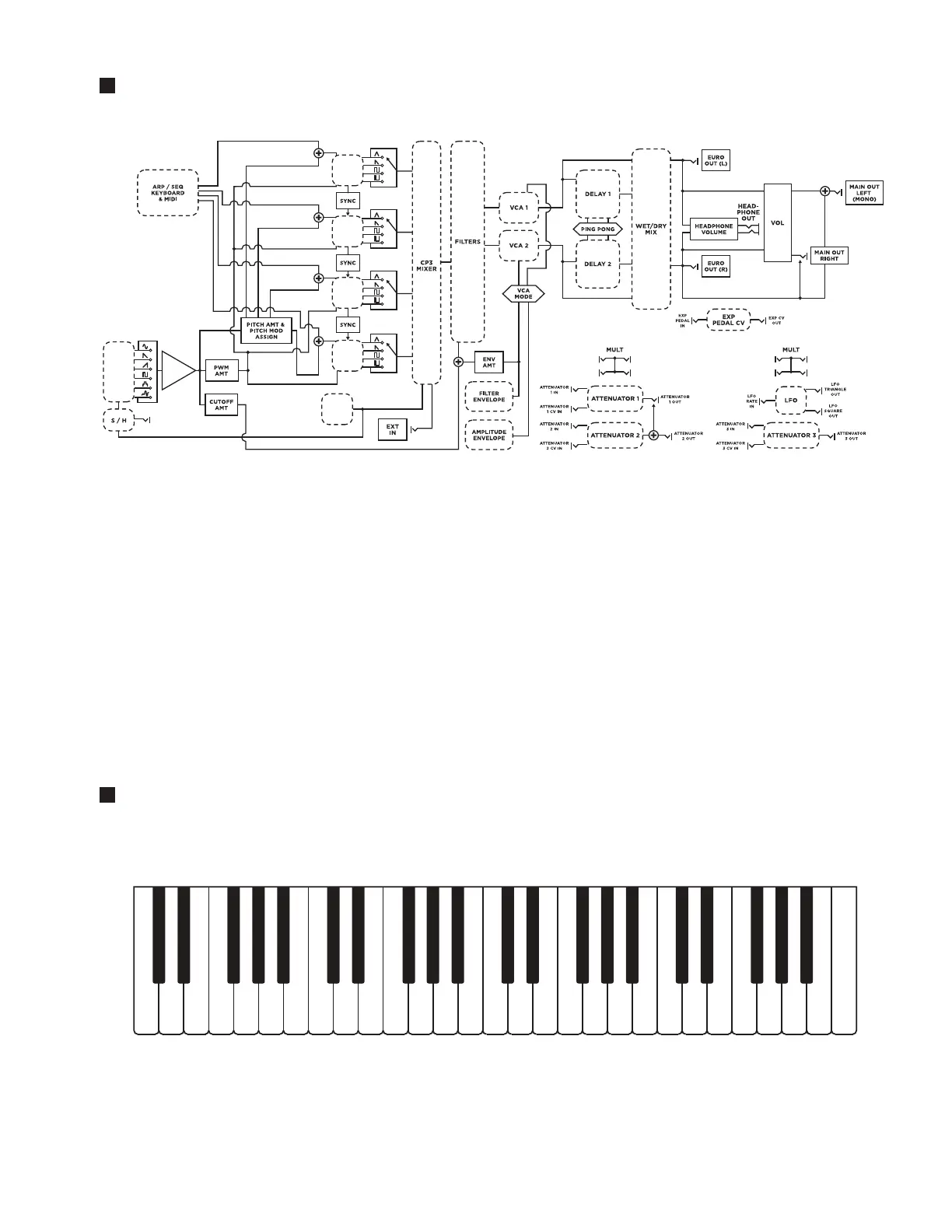

SIGNAL FLOW
REFERENCE: To view the full Signal Flow diagram see Page 70-71.
FEATURES & CONTROLS
Matriarch’s panel is comprised largely of single-function knobs, switches, and buttons that are grouped
together by module. Each module is equipped with a set of 3.5mm patch points that can be utilized
to create new audio and control pathways within Matriarch. These patch points can also be used to
establish synchronization and interconnectivity with other Moog synthesizers like Mother-32, DFAM,
and Grandmother, or to create a completely a new instrument through deep integration with a
Eurorack modular system.
NOTE: Additional patch points and connectors are available on Matriarch’s rear panel.
KEYBOARD
Matriarch offers a 49-note Fatar keyboard with velocity and channel aftertouch. There are no hardwired
connections for these signals; they can be easily accessed via rear-panel patch points and MIDI.
NOTE: By using the Mults and Attenuators found in the Utilities modules, multiple parameters can be aected –
in varying amounts – using the Keyboard Pitch, Velocity and Aftertouch control signals.
PWM
PITCH
PWM
PWM
PWM
PITCH
PITCH
PITCH
OSC 4
NOISE
MOD
OSC
MOD
WHEEL
VCA
OSC 3
OSC 2
OSC 1

Moog Matriarch Specifications

General

Product type	Analog synthesizer
Sound effects	Delay
Sound effects quantity	1
Keyboard number of keys	49
Maximum polyphony (notes)	4
MIDI in	Yes
6.35 mm (1⁄4-inch) input	3
6.35 mm (1⁄4-inch) output	2
Input voltage	240 V
DC input voltage	12 V
Power source type	DC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	361 mm
Width	810 mm
Height	139 mm
Weight	13610 g
