Moog Matriarch User Manual

23

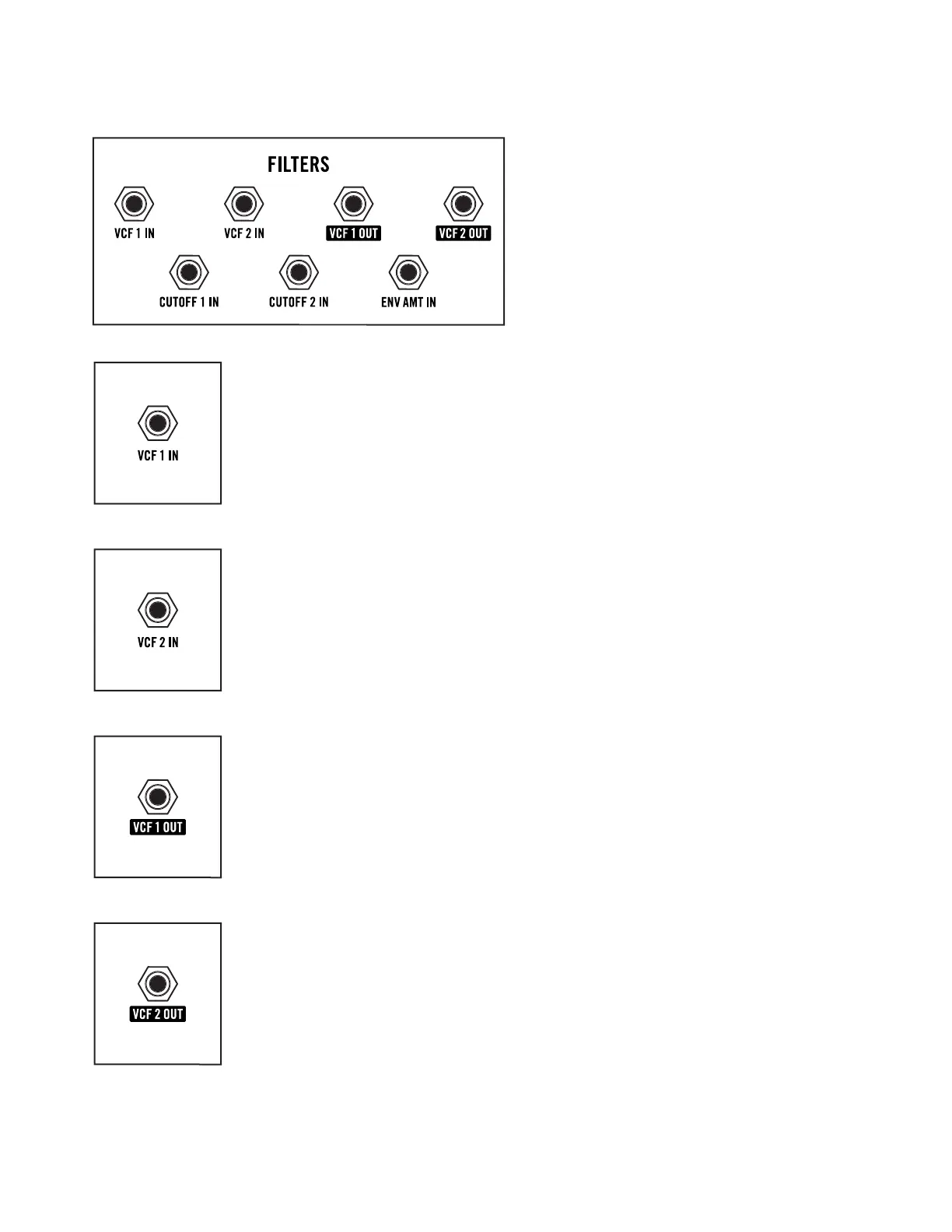

FILTER PATCH POINTS
These Filter module patch points
provide a convenient way to
independently modulate the Cutoff
frequency of VCF 1 and/or VCF 2,
and to modulate the value of the
ENVELOPE AMT knob. In addition,
audio inputs and outputs allow each
filter to be used as a stand-alone
processor for filtering any internal or
external sound source.
VCF 1 IN
The input to VCF 1 is connected to the output of the Mixer module. Patching
an audio signal to this input overrides the Mixer signal, allowing any audio
source to be processed by VCF 1.
NOTE: The path and mode of VCF 1 are determined by the FILTER MODE switch.
AUDIO INPUT: -5V to +5V
VCF 2 IN
The input of VCF 2 is connected to the output of the Mixer or VCF 1, depending
on the position of the FILTER MODE switch. Patching an audio signal to this
input overrides this signal, allowing any audio source to be processed
by VCF 2 using the filter’s current settings.
AUDIO INPUT: -5V to +5V
VCF 1 OUT
The audio output of VCF 1 is available via this jack, allowing it to be sent to any
input on Matriarch itself, or to an external electronic music device.
AUDIO OUTPUT: 10V peak-to-peak
NOTE: VCF 1 can be used as a stand-alone audio processor.
VCF 2 OUT
The audio output of VCF 2 is available via this jack, allowing it to be sent to any
input on Matriarch itself, or to an external electronic music device.
AUDIO OUTPUT: 10V peak-to-peak
NOTE: VCF 2 can be used as a stand-alone audio processor.
FILTERS (Continued)

Moog Matriarch Specifications

General

Product type	Analog synthesizer
Sound effects	Delay
Sound effects quantity	1
Keyboard number of keys	49
Maximum polyphony (notes)	4
MIDI in	Yes
6.35 mm (1⁄4-inch) input	3
6.35 mm (1⁄4-inch) output	2
Input voltage	240 V
DC input voltage	12 V
Power source type	DC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	361 mm
Width	810 mm
Height	139 mm
Weight	13610 g
