Moons' SSDC Multi-axis Series User Manual

36
Rev. 1.0
09/27/2023
400-820-9661
Multi-axis Series Hardware Manual

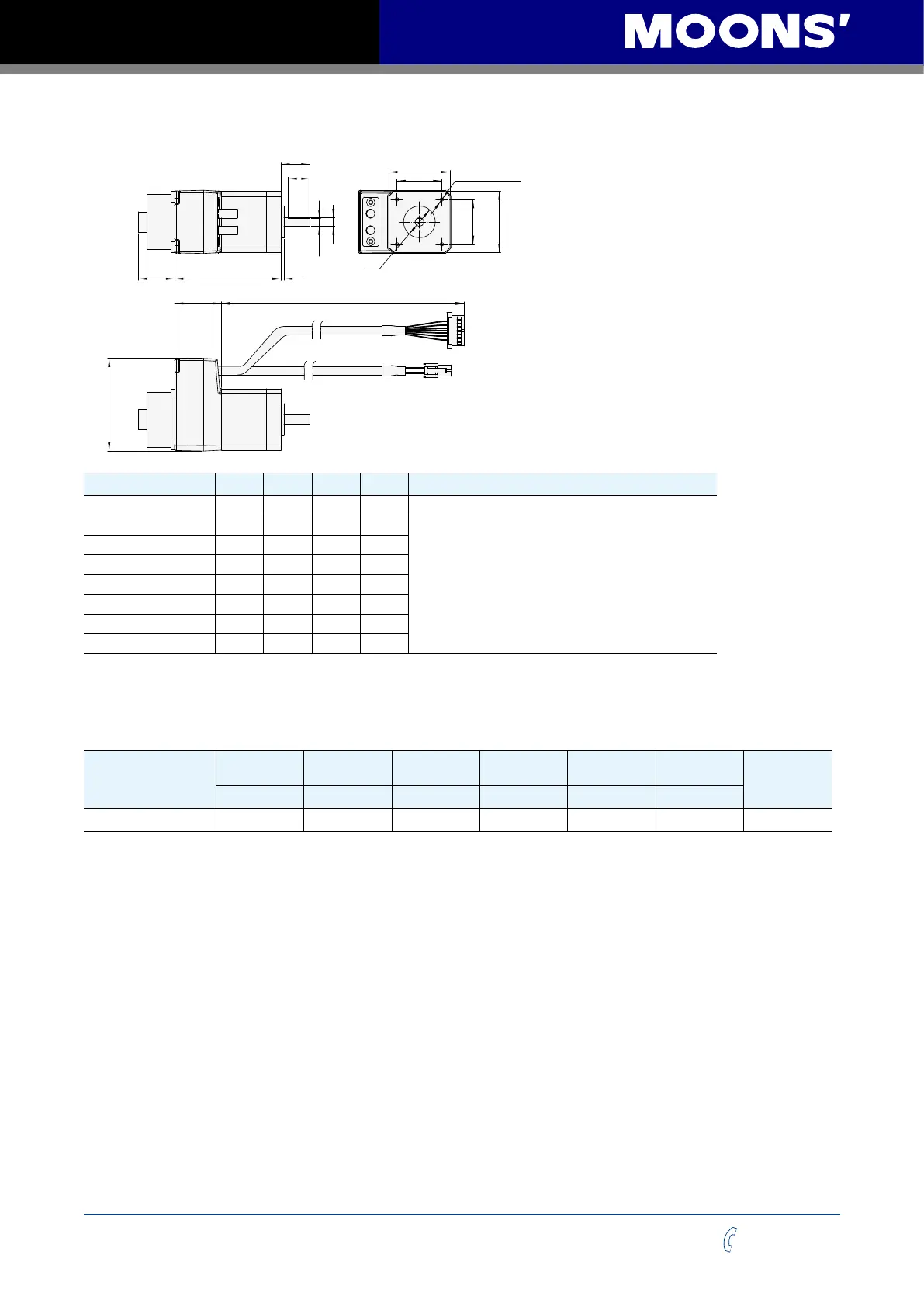

AM17SS-N-BR01 Series(With brake)
300
73.5 2
B
15
A
A1 FLAT
33
64
31
31
42.3
42.3
4-M3 Depth 4.5Min
Ø22
25
Model A A1 B L Connector On Cable
AM17SS1DGA-N-BR01
φ
6 5.5 20 59.5
Motor cable
Housing: 39-01-3048 (Molex)
，
1pcs
Crimp: 39-00-0038 (Molex)
，
4pcs
Encoder cable
Housing: 1-1827864-0 (Tyco)
，
1pcs
Crimp: 1827569-2 (Tyco)
，
15pcs
AM17SS1DGB-N-BR01
φ
5 4.5 24 59.5
AM17SS2DGA-N-BR01
φ
6 5.5 20 65
AM17SS2DGB-N-BR01
φ
5 4.5 24 65
AM17SS3DGA-N-BR01
φ
6 5.5 20 73.5
AM17SS3DGB-N-BR01
φ
5 4.5 24 73.5
AM17SS4DGA-N-BR01
φ
6 5.5 20 89
AM17SS4DGB-N-BR01
φ
5 4.5 24 89
*Note: The motor outlet connector in the table refers to the connector of the motor outlet line, not the plug-in connector. For the
model of the plug-in connector, see related extension cable
Specification Of Brake For NEMA17 Motor
Model
Voltage Power Torque Reactive time Life
Maximum
speed
Insulation
class
(VDC) (W) (N.m) (ms) (times) (rpm)
NEMA17 Brake 24 5 0.6 50 10000 5000 Class B
