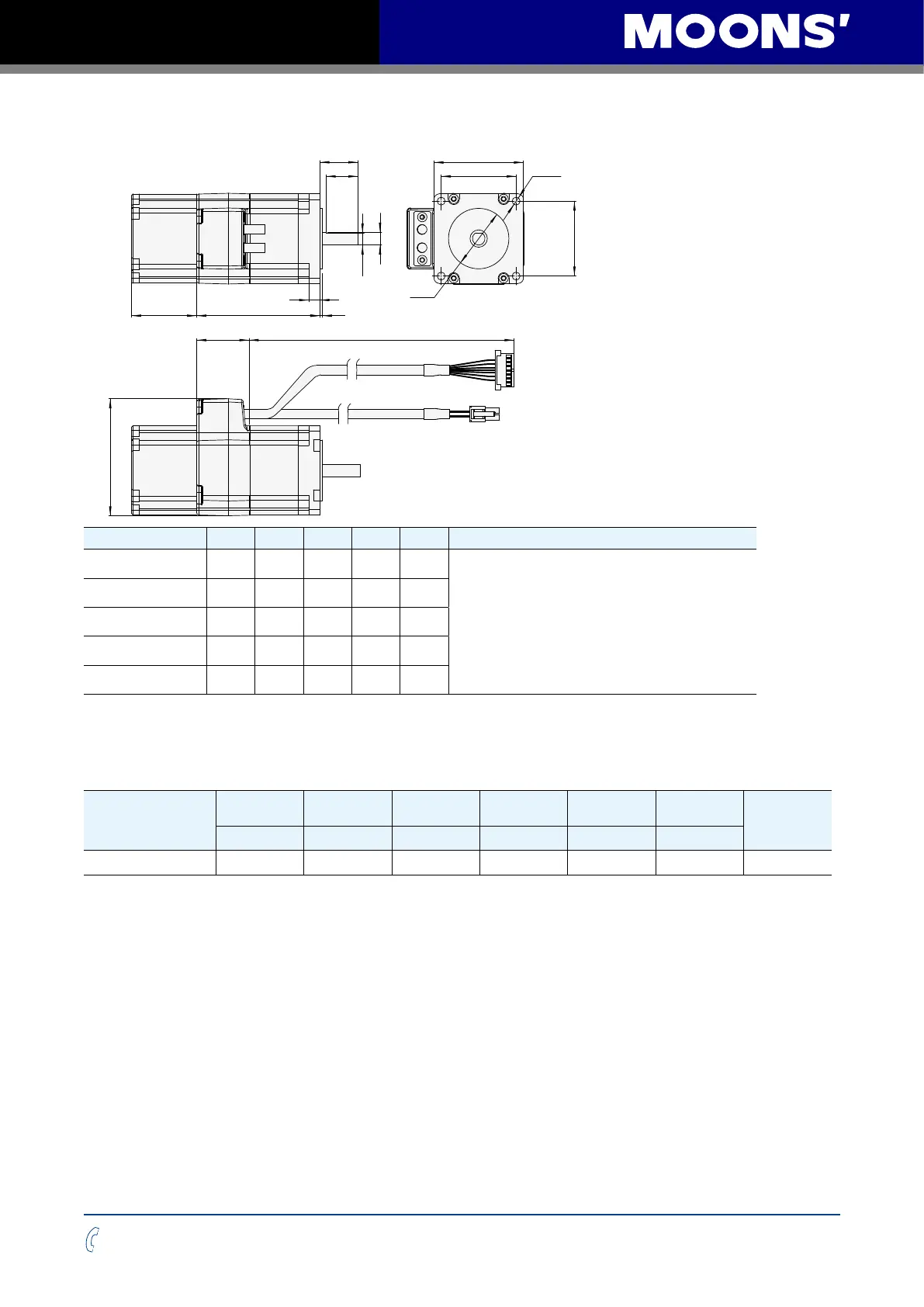

AM23SS-N-BR01 Series(With brake)
47.14
47.14
Ø38.1
4-Ø5.1
56.3
A
A1 FLAT
B
B1
1.6
L
7
300
33
73.6
41
Model A A1 B B1 L Connector On Cable
AM23SS2DGA-N-BR01
φ
8 7.5 24 20 77.5
Motor cable
Housing: 39-01-3048 (Molex)
，
1pcs
Crimp: 39-00-0038 (Molex)
，
4pcs
Encoder cable
Housing: 1-1827864-0 (Tyco)
，
1pcs
Crimp: 1827569-2 (Tyco)
，
15pcs
AM23SS2DGB-N-BR01
φ
6.35 5.85 20 15 77.5
AM23SS3DGA-N-BR01
φ
8 7.5 24 20 99.5
AM23SS3DGB-N-BR01
φ
6.35 5.85 20 15 99.5
AM23SS4DGA-N-BR01
φ
8 7.5 24 20 102.5
*Note: The motor outlet connector in the table refers to the connector of the motor outlet line, not the plug-in connector. For the
model of the plug-in connector, see related extension cable
Specification of brake for NEMA23 motor
Model
Voltage Power Torque Reactive time Life Maximum
speed
Insulation
class
(VDC) (W) (N.m) (ms) (times) (rpm)
NEMA23 Brake
24 4.5 1.2 50 10000 5000 Class B
