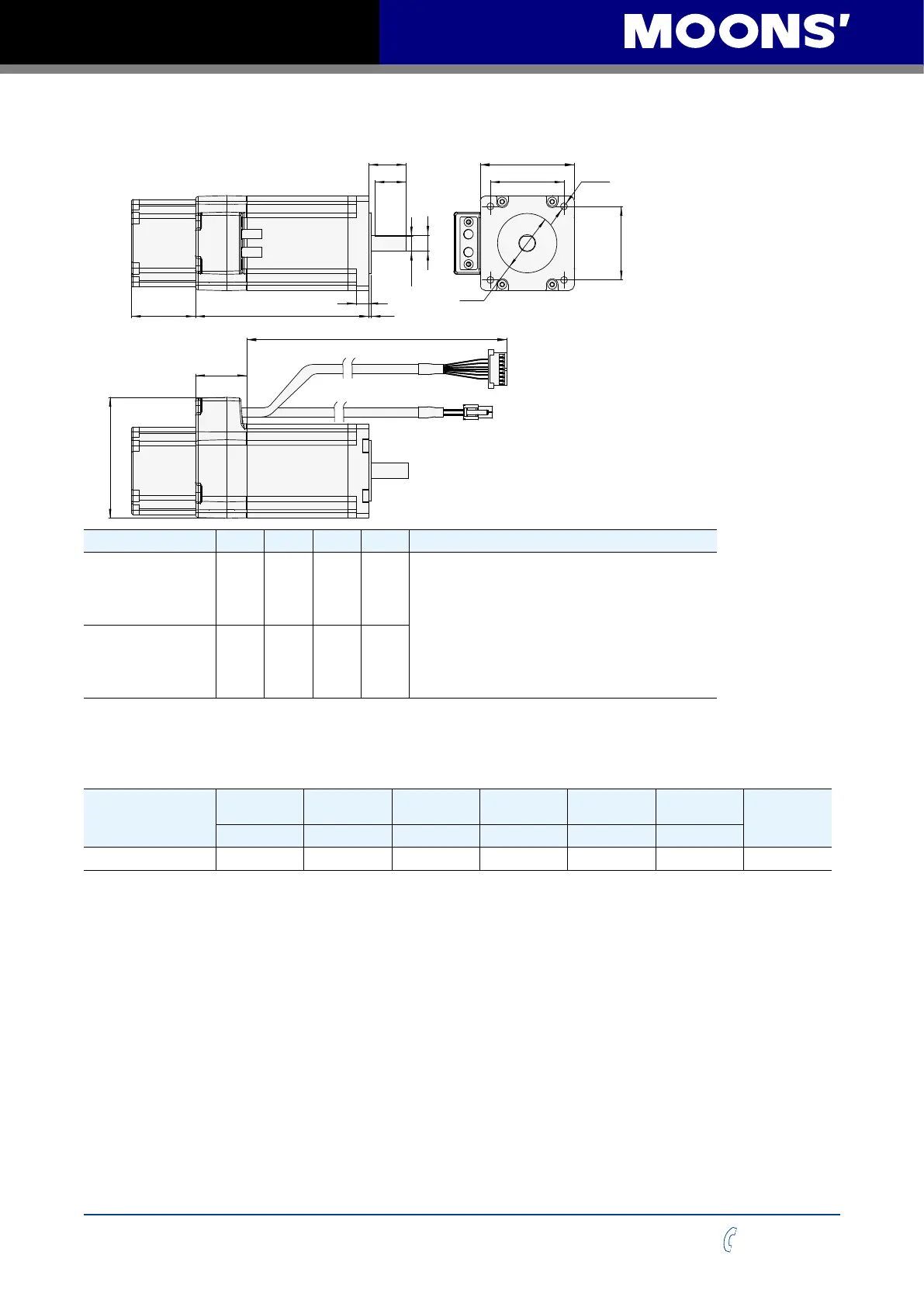

Multi-axis Series Hardware Manual
AM24SS-N-BR01 Series(With brake)
B1
B
A1 FLAT
A
47.14
47.14
Ø38.1
60
4-Ø4.5
1.5
8
111
77.4
33
300
41
Model A A1 B B1 Connector On Cable
AM24SS3DGA-N-BR01
φ
10 9.5 24 20
Motor cable
Housing: 39-01-3048 (Molex)
，
1pcs
Crimp: 39-00-0038 (Molex)
，
4pcs
Encoder cable
Housing: 1-1827864-0 (Tyco)
，
1pcs
Crimp: 1827569-2 (Tyco)
，
15pcs
AM24SS3DGB-N-BR01
φ
8 7.5 20.6 15
*Note: The motor outlet connector in the table refers to the connector of the motor outlet line, not the plug-in connector. For the
model of the plug-in connector, see related extension cable
Specification of brake for NEMA24 motor
Model
Voltage Power Torque Reactive time Life Maximum
speed
Insulation
class
(VDC) (W) (N.m) (ms) (times) (rpm)
NEMA24 Brake 24 4.5 1.2 50 10000 5000 Class B
