Moons' SSDC Multi-axis Series User Manual

39
Rev. 1.0
09/27/2023
Multi-axis Series Hardware Manual
400-820-9661

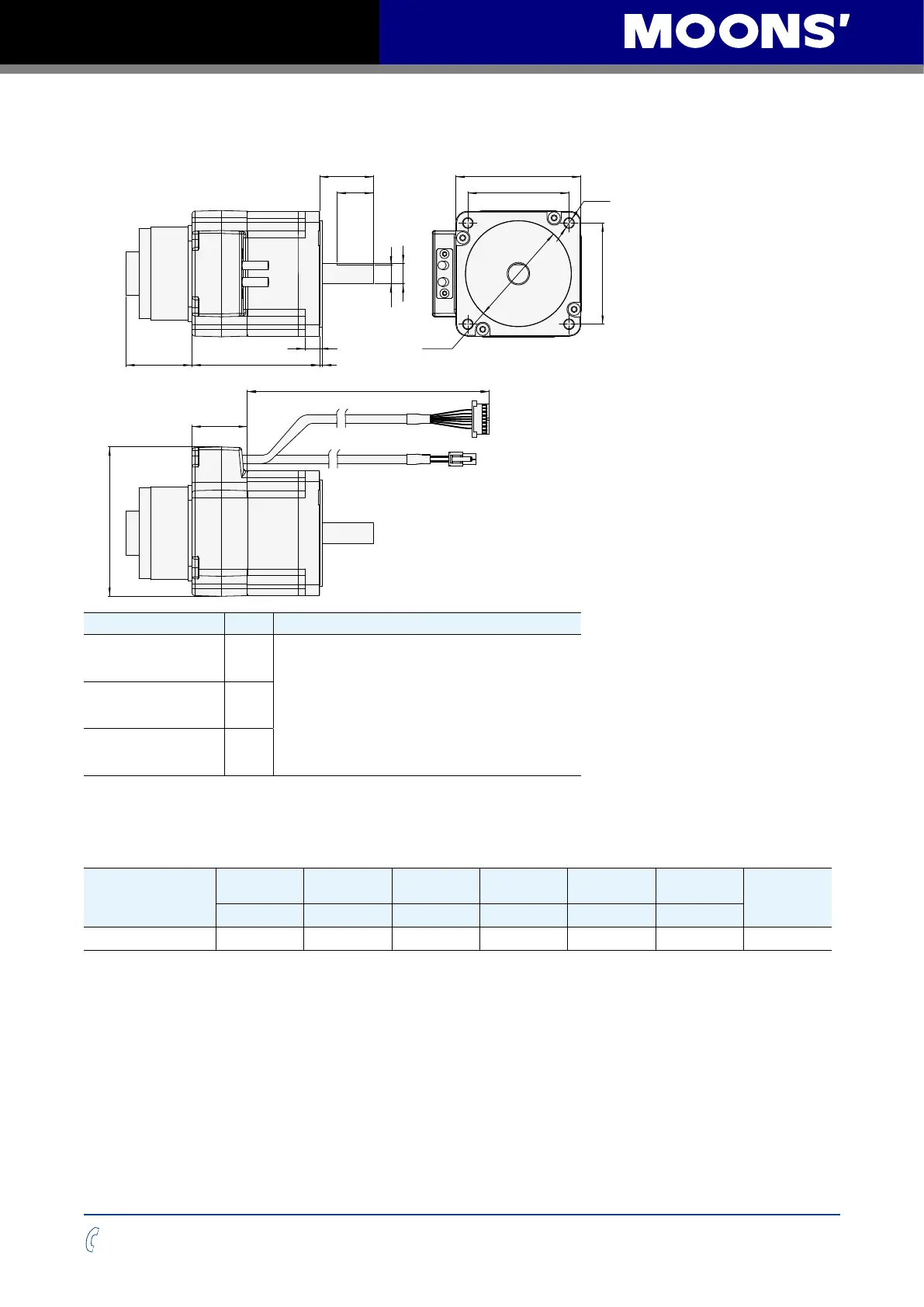

AM34SS-N-BR01 Series (With brake)
300
25
37
10
L
2
Ø14
102.7
38
13Flat
69.6
69.6
4-Ø6.5
86
Ø73.025
45.5
Model L Connector On Cable
AM34SS1DGA-N-BR01 88
Motor cable
Housing: 39-01-3048 (Molex)
，
1pcs
Crimp: 39-00-0038 (Molex)
，
4pcs
Encoder cable
Housing: 1-1827864-0 (Tyco)
，
1pcs
Crimp: 1827569-2 (Tyco)
，
15pcs
AM34SS3DGA-N-BR01 117.5
AM34SS5DGA-N-BR01 147
*Note: The motor outlet connector in the table refers to the connector of the motor outlet line, not the plug-in connector. For the
model of the plug-in connector, see related extension cable
Specification of brake for NEMA34 motor
Model
Voltage Power Torque Reactive time Life Maximum
speed
Insulation
class
(VDC) (W) (N.m) (ms) (times) (rpm)
NEMA34 Brake 24 8.0 6.0 50 10000 5000 Class B
