FEED WHEEL DRIVE LUBRICATION
Drain Hose
Vent Hose
Draining
Drain Hose
Vent Hose
Filling
1� Raise and lock the feed wheel yoke in the up
position.
2� Locate the drive hub maintenance cover in the 6:00
position (see Figure 1).
3� Remove the cover to access drain and vent line
hoses.
NOTE: The larger of the 2 hoses will be the drain and ll
line.
NOTE: Some machines may have a 90° tting for drain
and ll.
NOTE: The draining and lling are done through the
same port.
4� Remove plug or cap and drain oil from drive hub.
NOTE: Vent line must be uncapped for proper draining.
5� Remove yoke lock and lower feed wheel.
6� Relocate the drive hub maintenance cover in the
3:00 position (see gure 2).
7� Connect a hose to the drain/ll line and install 50
ounces (1,48 L) of new oil. The vent line must be left
uncapped.
NOTE: The ll line should be at least 48" (1,22 mtr) long
and kept above the inlet port of the drive hub.
8� Recap drain and vent hoses and install access
cover.

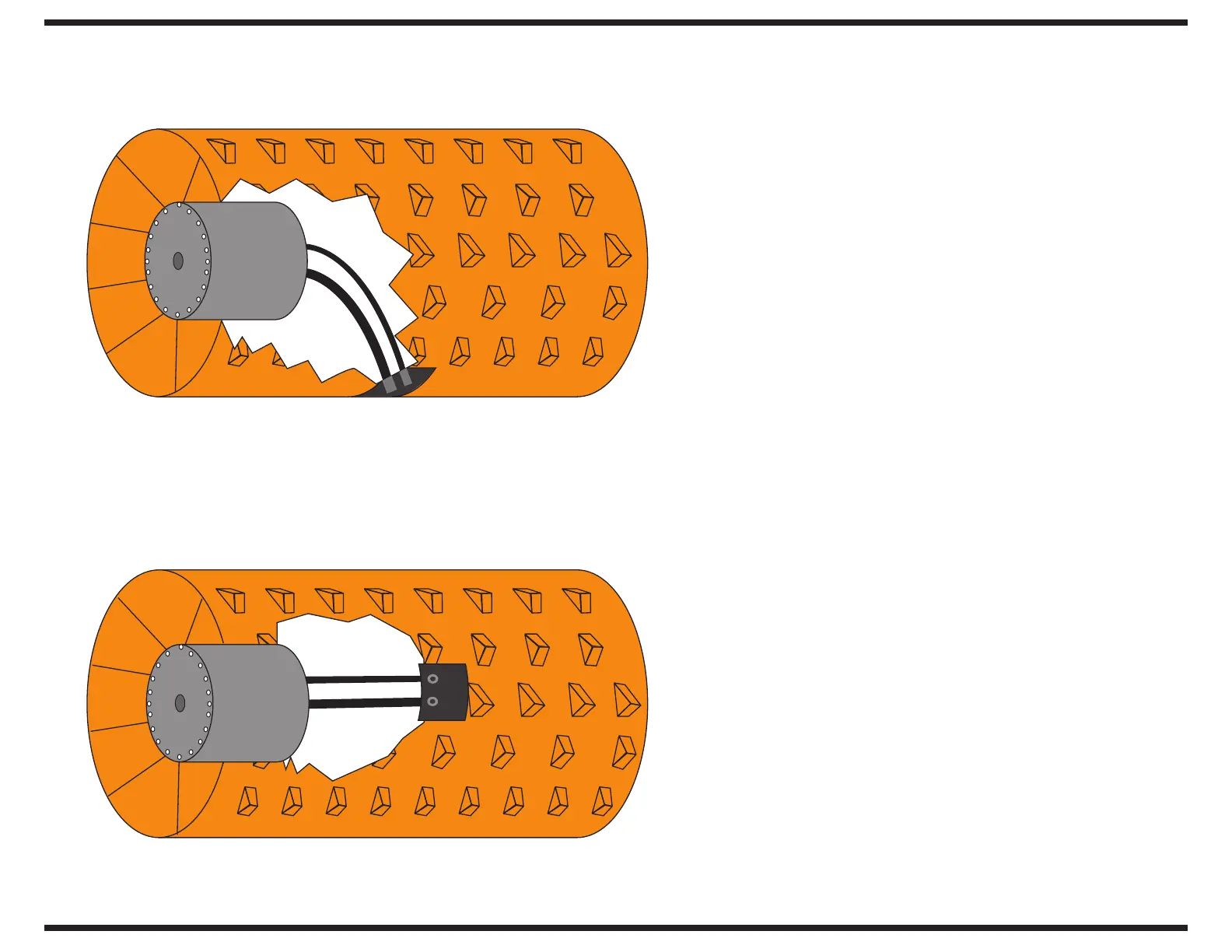

Figure 1
Figure 2
