#65060/INTL-K-10.2020 MORIA 7

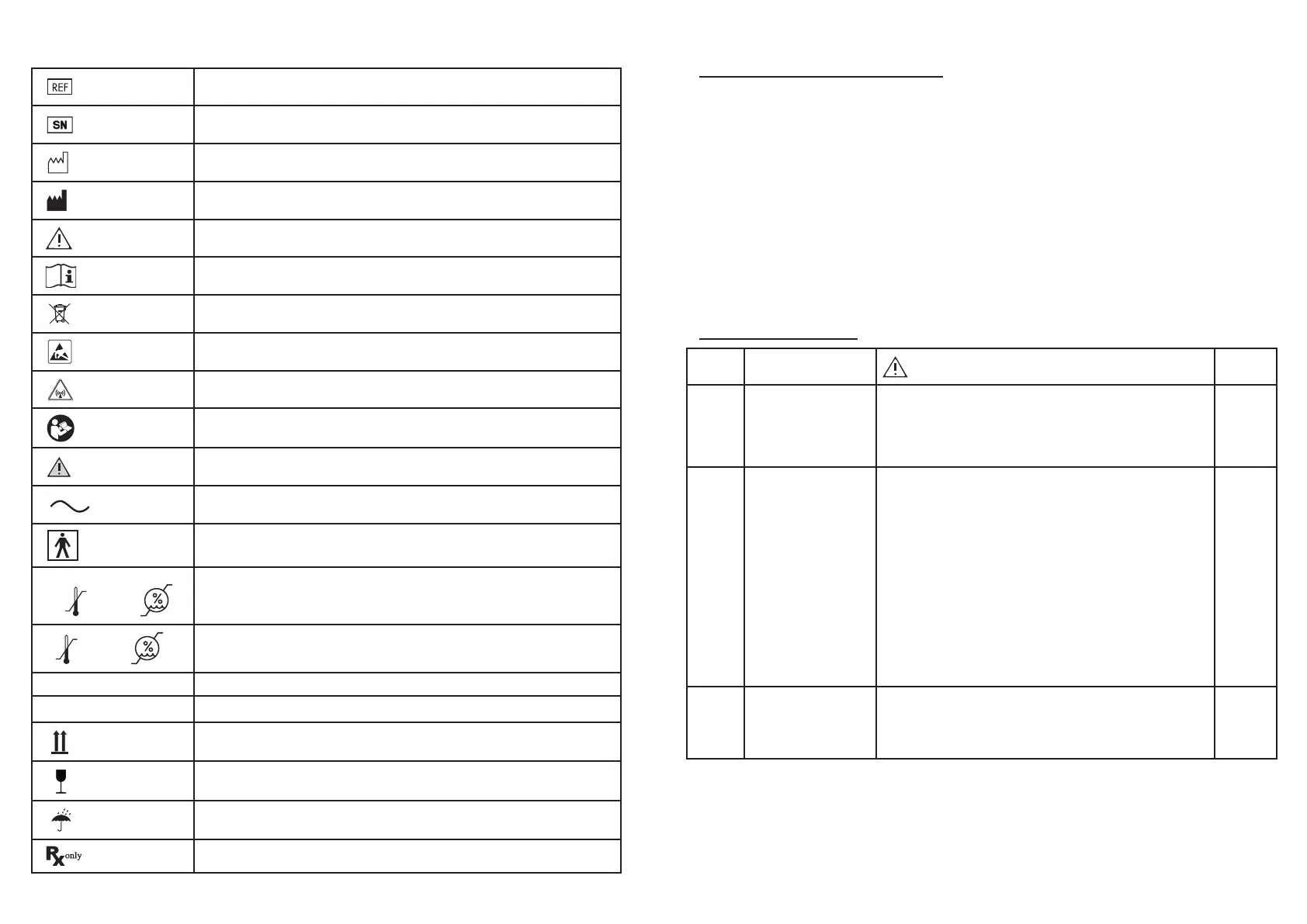

VII. LABELING INFORMATION
XXXXXX
CATALOGUE NUMBER OR SKU
XXXXXXXX
SERIAL NUMBER
YYYY/MM/DD
DATE OF MANUFACTURE
XXXXXXX
MANUFACTURER
XXXXXX
CAUTION : CONSULT INSTRUCTIONS FOR USE FOR ANY IMPORTANT INFORMATION
ABOUT THE SECURITY
XXXXXX
CONSULT OPERATING INSTRUCTIONS
DISCARD IN A SEPARATE COLLECTION BIN
WARNING AGAINST ELECTROSTATIC DISCHARGES
WARNING AGAINST INTERFERENCE RISK
REFER TO USER MANUAL
SIGN OF GENERAL SAFETY
ALTERNATIVE CURRENT
TYPE « BF » APPLIED PARTS: PROTECTION AGAINST ELECTRIC SHOCK :
• LEAKAGE CURRENT
• GROUNDED POWER SYSTEM
40°C
10°C
75%
30%
NORMAL CONDITIONS OF USE
EVO3E CONTROL UNIT AND MOTORS/TURBINES:
TEMPERATURE: 10°C – 40°C / 50°F – 104°F, HUMIDITY RATE: 30 - 75%
35°C
15°C
70%
30%
NORMAL CONDITIONS OF USE
SINGLE USE ITEM :
TEMPERATURE: 15°C – 35°C / 59°F – 95°F, HUMIDITY RATE: 30 - 70%
IP X6
FOOTSWITCH PROTECTED AGAINST POWERFUL WATER JETS
IP X8
FOOTSWITCH PROTECTED AGAINST WATER SUBMERSION BEYOND 1 METER (3,3 FEET)
THIS SIDE UP
FRAGILE
KEEP DRY
CAUTION FOR USA ONLY: US FEDERAL LAWS RESTRICT THIS DEVICE TO SALE BY, OR ON
THE ORDER OF, A PHYSICIAN.
VIII. INSTALLATION AND CONNECTION
A. INSTALLATION RECOMMENDATIONS
Following is a list of general recommendations when installing the EVOLUTION 3E console:
• Make sure the console is installed no more than 2 meters away from user
• The console must remain in front of user during operation to visualize every indication (value,
warning)
• User must be able to hear signals from EVOLUTION 3E console properly
• User must be able to disconnect suction from aspiration tubing connector
• User must be cautious about EVOLUTION 3E console displacement due to its height, dimensions
and connections
• The EVOLUTION 3E console must not be installed above or close to a radiating device.
• All applied parts must be used in normal condition of use, and on a routine surgical basis with
respect to their intended use according to the instructions for use.
WARNING : The microkeratomes electric motors and turbine can reach a temperature over 41°C.
Moria recommends to use the motors and rings not longer than 1 min and to prevent any contact of
motors with patient tissues.
B. ELECTRICAL SETTING
Steps What to do
IMPORTANT WARNINGS
Related
1 Using the screw
connector, plug in the
footpedal connector
(#19361, 19381,
19381C, 19281J) to the
rear panel of the console
Finger tight only B8
C
2 Connect the power
supply cord to the main
power supply
NEVER OPERATE WITHOUT MAIN POWER SUPPLY.
Before using the EVOLUTION 3E, check if position of operating
voltage (115 or 230V) is appropriate to your country’s power supply:
- for a power supply of 100-120V: select position «115V»
- for a power supply of 220-240V: select position «230V».
To select position of operating voltage, see chapter XI.A.
To change fuses, see chapter XI.C.
If the unit has not been operated for four weeks or more, the battery
level should be checked and recharged prior to use.
To avoid electrical shock, the console must only be connected to a
grounded power system.
Position the console so that displays, connections and buttons
remain visible and accessible.
Always allow an easy access to the electric supply and power
socket.
In cases of emergency, disconnect the power socket or the supply
cord connector.
B11
3 Switch on the control
unit turning B9 button
to “ON”
Visually check all LEDs are blinking (A3, A4, A5, A7, A9, A10, A11,
A12, A14, A15, A16, A17, A18).
Visually check A9 and A11 LEDs are ON.
The display indicates the atmospheric pressure (approximately
760mmHg at sea level).
B9
LEDS (A9
and A11)
ON
