Active Hydraulic System
The active hydraulic system uses a special manifold
block (S64940) which controls the Lift-Lower and
packing pressure functions through a controller and an
in cab display.
The controller and display provides the user the ability
to adjust the opener downforce packing pressure on the
go from inside the cab while applying product.
As well as push button convenience to Lift and Lower
the openers from the Transport into the Working position.
Two control options are available to suit Ground Drive
and VRT/ICT style Air Carts.
a) JEM - CC PILOT and ESX Controller
b) Topcon - X35 Apollo CM-40 Master module
Option A:
Vansco equipped Ground Drive units must be congured
with a JEM CC Pilot Drill Control system package.
Option B:
Topcon X35 Apollo equipped Air Carts (VRT, ICT) units
can be congured to use Apollo Lift Control / Pack
Control.
Topcon Apollo Equipped Air Carts can also control the
QUANTUM Lift/Lower functions and Pressure settings*.
Lift Control will automatically Lift/Lower the openers
when entering and exiting a headlands or previous
applied coverage.
*Note: Pack Control - (Opener Pressure Control)
requires a complete spare drive channel on
Apollo ECU. A 4 Tank Cart would require an
additional EM40.

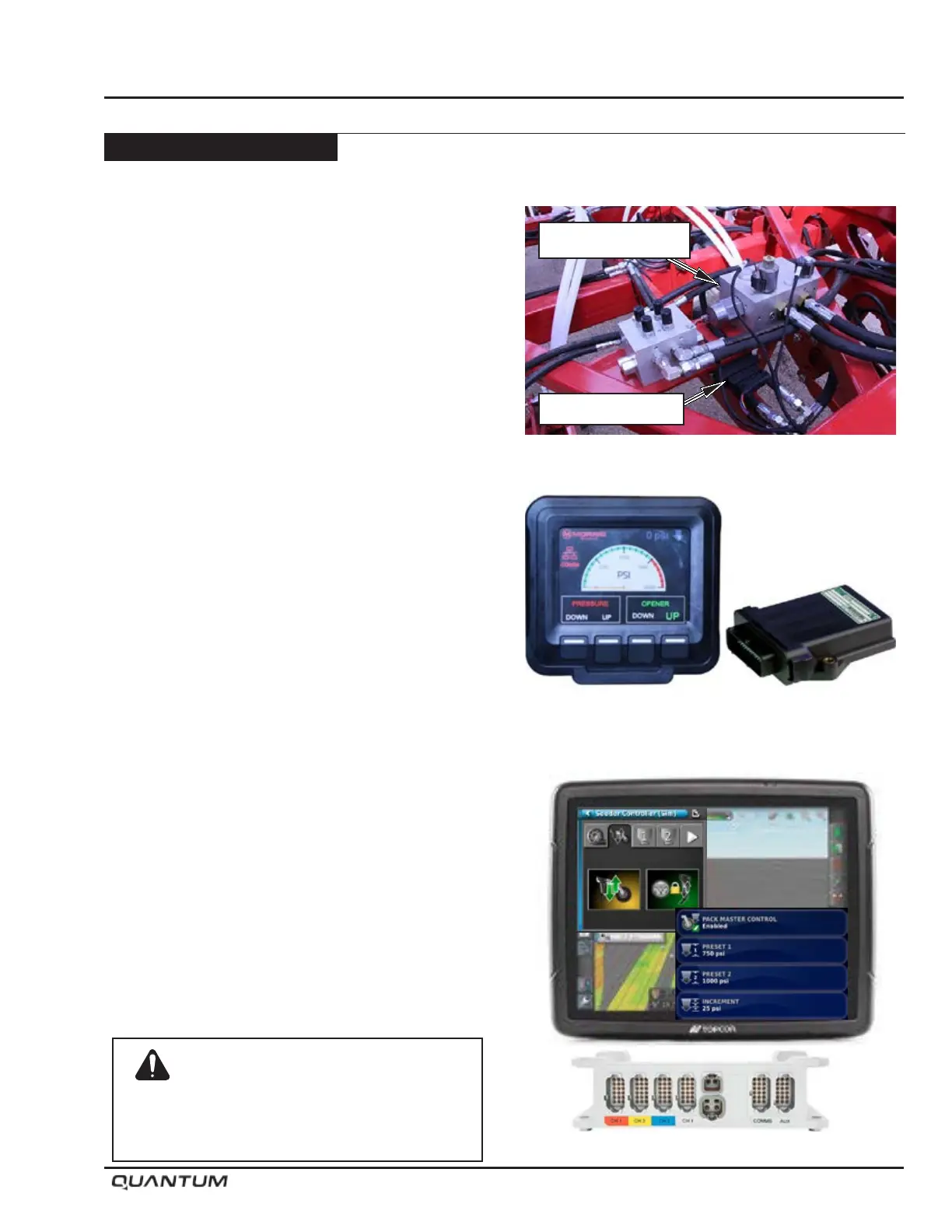

JEM CC PILOT Display Screen and ESX Controller
Manifold - S64940
ESX Controller
Topcon X35 Apollo - Lift Control / Pack Control
Warning
Openers drop with full down force when
powering up or rebooting the controller with
hydraulics engaged.
