Operation
January 2019 5-13
Controller Options
Two control options are available to suit Ground Drive
and VRT/ICT style Air Carts.
a) JEM - CC PILOT and ESX Controller
b) Topcon - X35 Apollo CM-40 Master module

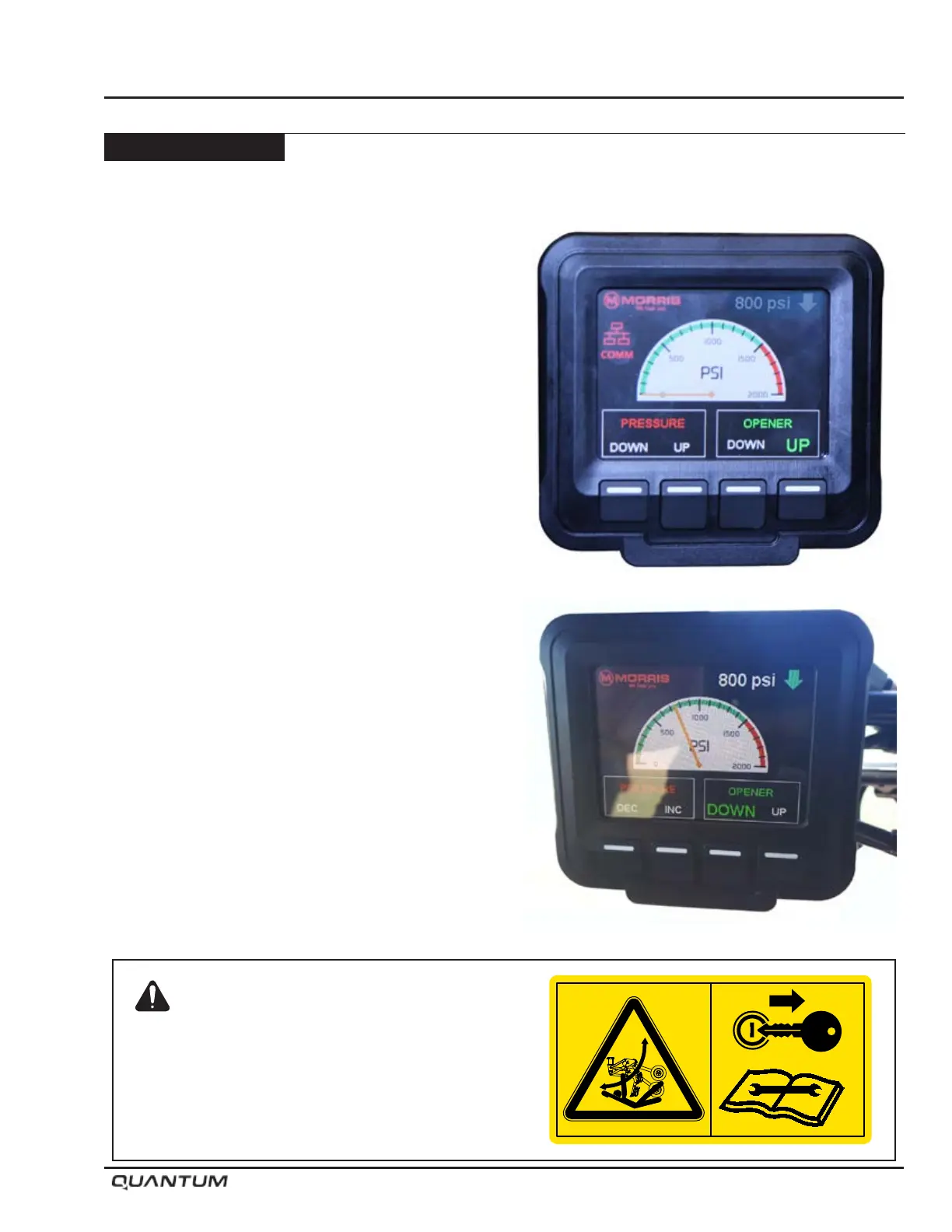

JEM CC Pilot Dispay
Opener: (S1) Opener valve is either Up / Down
Pressure: (S2) Pressure Reducing valve set point
adjusted by pressing the INC / DEC keys.
PSI Digital: Displays user target pressure setting.
Note: Pressure is adjusted by 25 psi (172 kPa)
increments. Up / Down arrows changes
depending on the button pressed.
PSI Analogue Gauge: Displays actual system
pressure from Pressure Transducer K62977.
Comm: Icon is only visible when there is no
communication with the ESX Controller.
Features:
• CC Pilot holds the last pressure used, example if the
last entered pressure was set at 800 psi (5516 kPa)
from the previous day upon powering on the unit the
value will return automatically to the last value used
of 800 psi (5516 kPa).
Warning: Openers drop with full down force when
powering up or rebooting controller
with hydraulics engaged.
• Buzzer alarms when Pressure exceeds 1500 psi.
(10342 kPa) (alarm is not user settable)
• White Gauge Face changes to Black when work
lights are turned on, requires remote wire attached.
Warning
Openers drop with full down force when
powering up or rebooting the controller with
hydraulics engaged.
S65155
