Operation
January 2019 5-39
Quick Tips - Continued

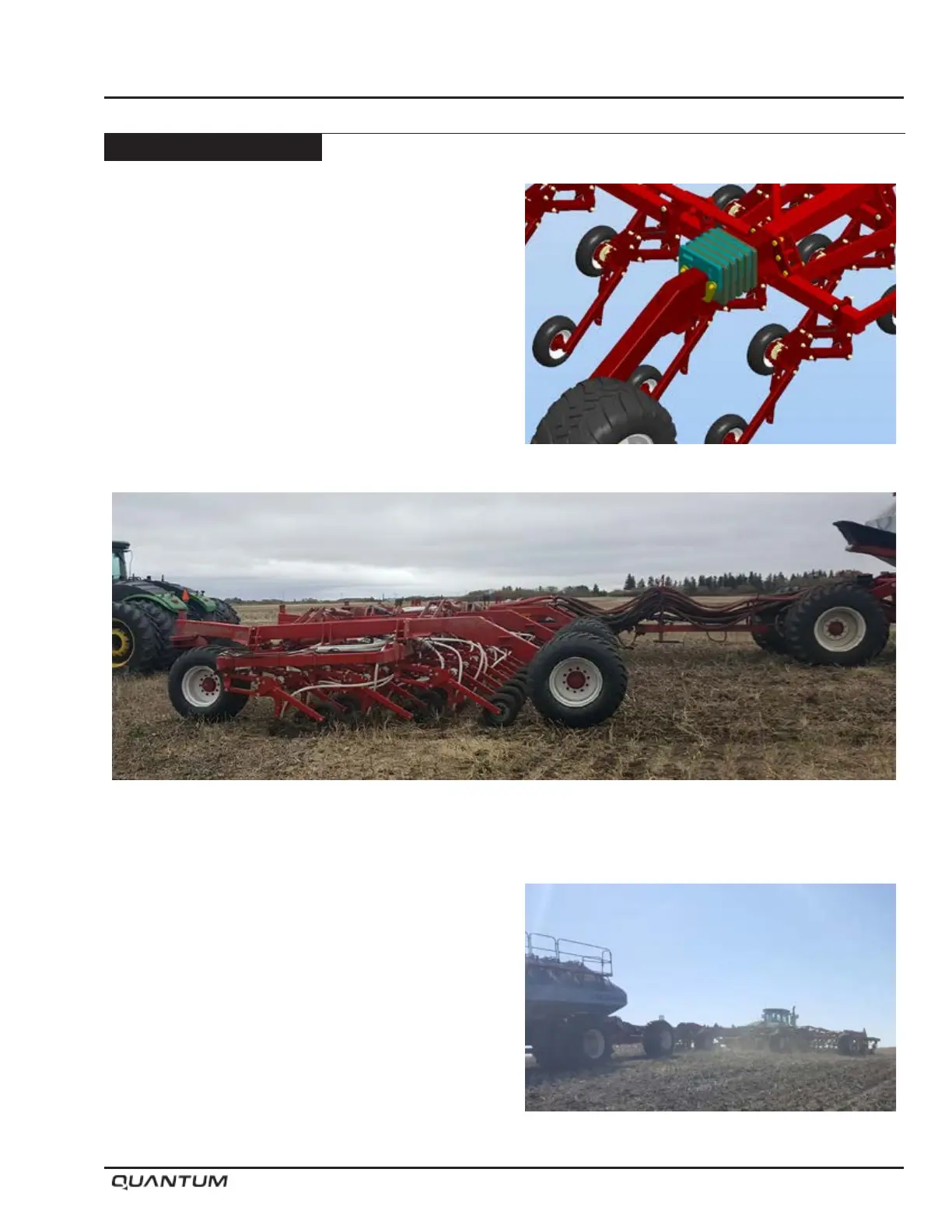

Air Drill Frame
The QUANTUM Air Drill frame is a simple slab frame
system, designed to let the parallel link openers do
the work of depth control and leveling during seeding.
No leveling of the frame is required. During normal
operation of the drill there will be very little weight on the
rear tires of the frame. The rear tires may even leave
the ground while traveling through sharp gullies; this is
normal, and it will not affect the seed depth control of
the openers. If the tires are lifted in the air consistently,
optional weight kits can be applied to the depth beams
near the rear axles.
Trouble Shooting Guide
*Note: Remove all pressure from hydraulic systems
before attempting any service work on
hydraulic components.
Hydraulic system must be bled after it has been
serviced (if any portion of the system has been opened
to atmosphere) and also on initial start-up or if spongy
or irregular trip operation is occurring. See “Bleeding
Hydraulic System” in Maintenance Section.
Normal Frame Angle
Weight Kit
