Operation
January 2019 5-9
Transport - Continued
Transport to Field Position
• Position machine on level ground.
• Stop tractor, and engage park brake.
• As a precaution, check surrounding area to be sure
it is safe to lower wings.
• Unlock the wing valve and opener valve. Do not walk
under raised wings.
• Operate opener hydraulics, to ensure all openers are
retracted.
• Operate wing lift hydraulics until wings are lowered
and the cylinder shafts are completely extended to
allow wings to oat when working in uneven land.
Never raise or lower wings when moving.
Note: When raising or lowering wings, do so in one
continuous motion until fully up or down. Do
not stop ow part way allowing wings to fold
on their own. This may disrupt the sequence
of operation.

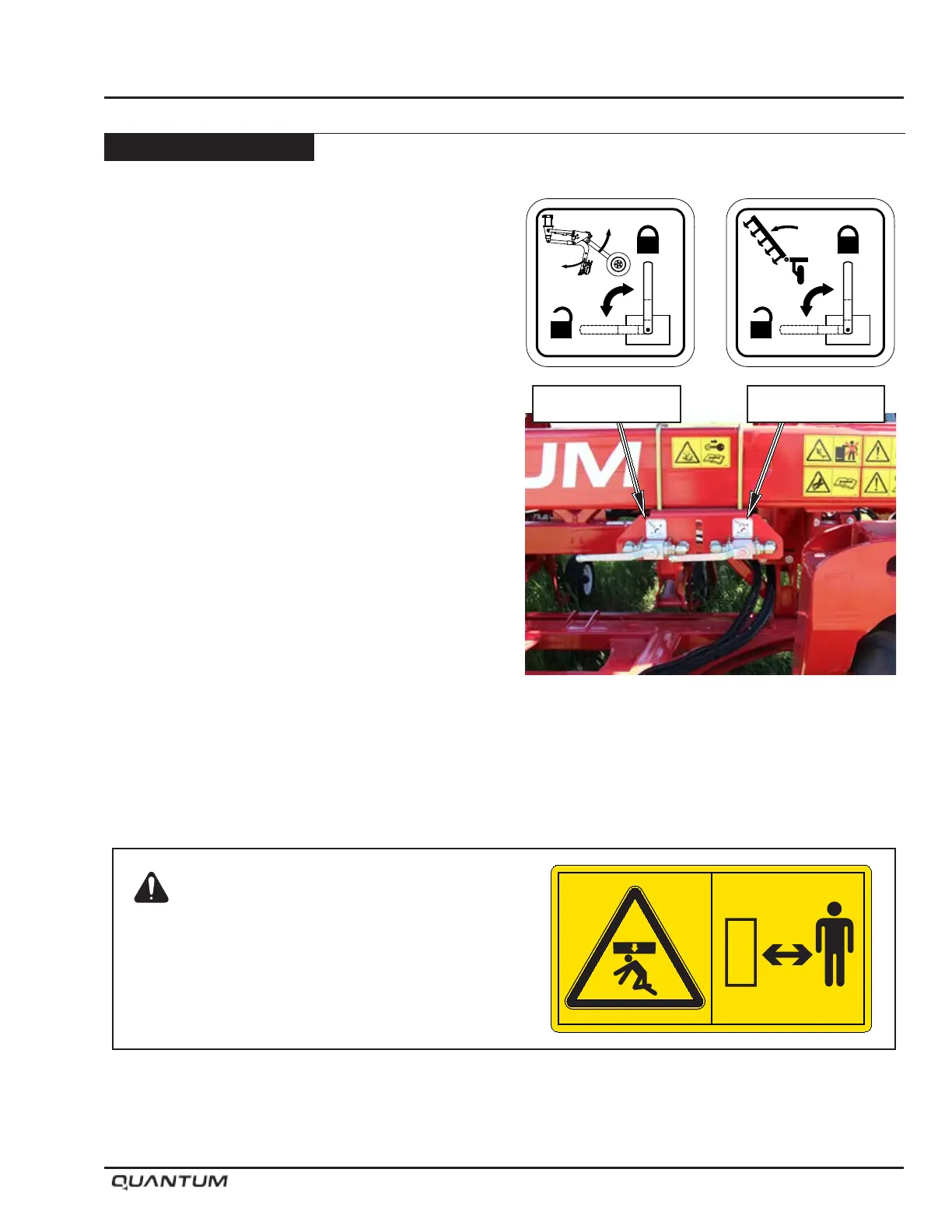

S65157
S65156
Valves in Unlocked Position
Openers Valve Wing Valve
Danger: Crushing Hazard
To prevent death or serious injury:
Always stay clear of wings being raised, lowered or
in elevated position. Ensure cylinders are completely
filled with hydraulic fluid - wings may fall rapidly
causing injury or death.
S65153
