Transport - Continued
Field to Transport Position
• Position machine on level ground.
• Stop tractor, and engage park brake.
• Ensure wing lift cylinders are fully extended.
Note: The wing lift cylinders must be fully extended
to ensure proper operation of the flow
control valve (FCV) manifold.
• Operate the opener hydraulics, to raise the openers
fully.
• Operate the wing lift hydraulics, to raise the wings
fully into transport position. Never raise or lower
wings when moving.
Note: When raising or lowering wings, do so in one
continuous motion until fully up or down. Do
not stop ow part way allowing wings to fold
on their own. This may disrupt the sequence
of operation.
• Lock wing lift valve and opener valve. Do not walk
under raised wings.
• Ensure safety chain is properly installed, see
“Hitching to Tractor” of the Operation Section.
S65157
S65156

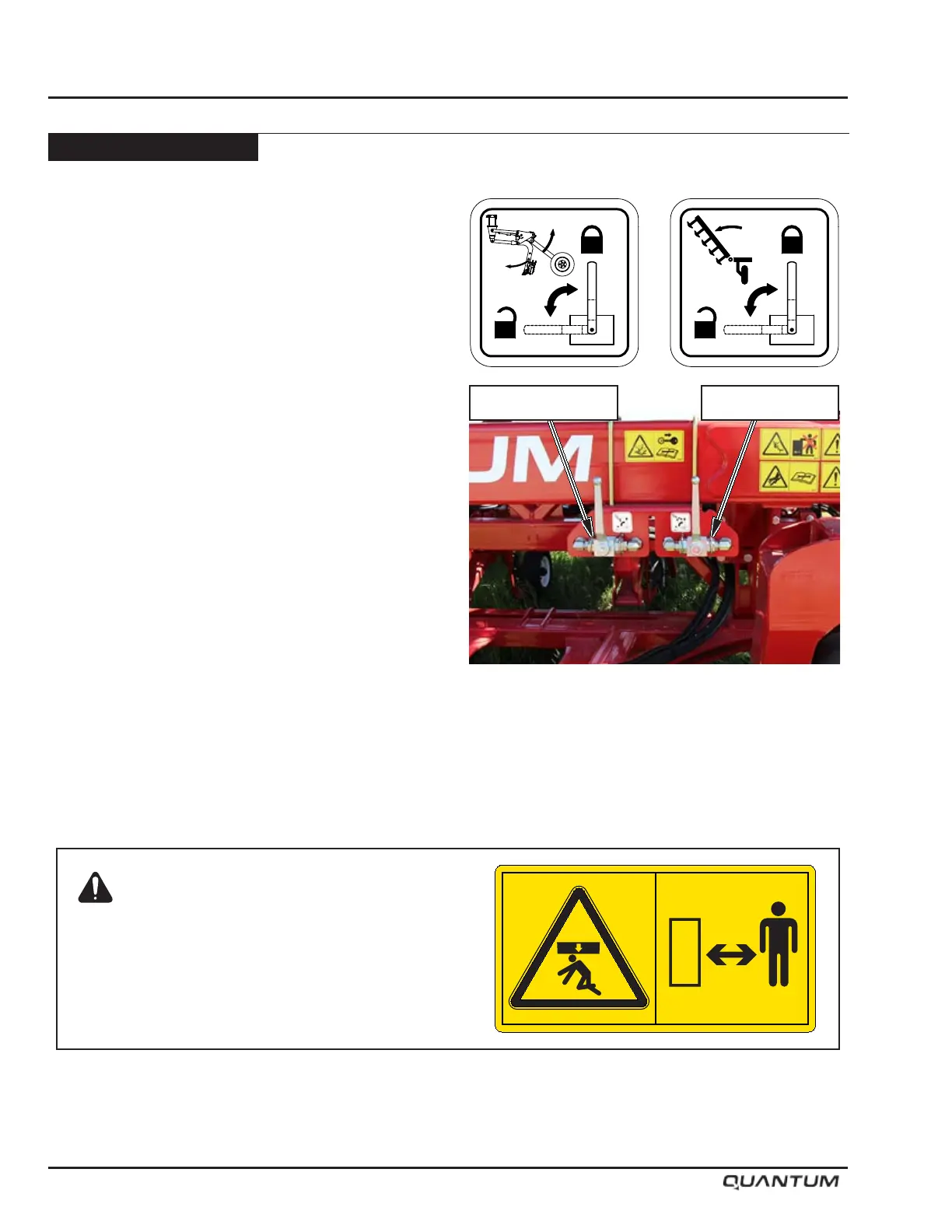

Valves in Locked Position
Openers Valve Wing Valve
Danger: Crushing Hazard
To prevent death or serious injury:
Always stay clear of wings being raised, lowered or
in elevated position. Ensure cylinders are completely
filled with hydraulic fluid - wings may fall rapidly
causing injury or death.
