Morris Quantum - Contour Opener Hub

Maintenance
6-20 January 2019
Wheel Bearings - Continued
Contour Opener Hub
• Position implement in eld position.
• Relieve all pressure from the opener circuit using
the tractor remote.
• Shut tractor engine off and remove key. Engage park
brake before proceeding.
• Place “Openers” ball valve into locked position to
prevent accidental oil ow to openers.
• Follow procedure for hub
removal and bearing
replacement outlined
under “Implement Hub”.
Important
Check wheel bearings for play every
5,000 acres (2,000 hectares)
or yearly, which ever occurs first.
Tighten as required.

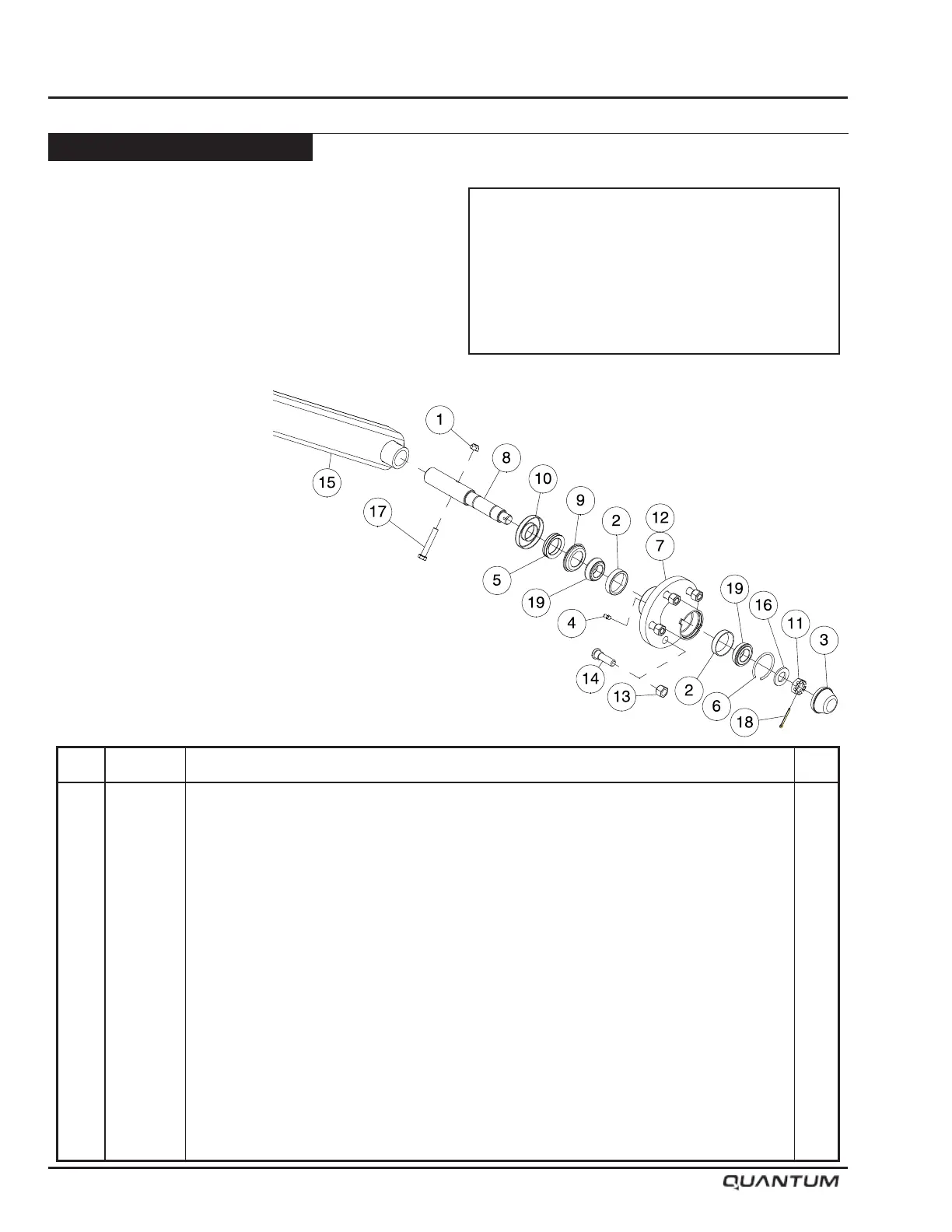

Item Part No. Description Qty
1 M-3388 Lock Nut - 3/8 Unitorque ................................................................................................... 1
2 N14009 Bearing Cup ...................................................................................................................... 2
3 N14011 Dust Cap ........................................................................................................................... 1
4 S-752 Grease Zerk - 1/4 .............................................................................................................. 1
5 S48842 V-Seal - 1 1/4 Shaft ........................................................................................................... 1
6 S48843 Dust Cap Retaining Wire ................................................................................................... 1
7 S48844 Hub Casting - 1000 Lb - 5 Bolt .......................................................................................... 1
8 S48846 Spindle - 1-1/4 Dia ............................................................................................................ 1
9 S48847 Seal Counterface .............................................................................................................. 1
10 S48848 Seal Retainer .................................................................................................................... 1
11 S48849 Slotted Jam Nut - 3/4 ........................................................................................................ 1
12 S48850 Packer Hub Assembly (Includes Items# 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 14, 16, 18 & 19) . 1
13 S50246 Tapered Wheel Nut - 1/2 .................................................................................................... 5
14 S50247 Press-In Wheel Stud - 1/2 ................................................................................................. 5
15 S64673 Packer Arm ........................................................................................................................ 1
16 W-476 Washer - 3/4 ...................................................................................................................... 1
17 W-479 Hex Bolt - 3/8 x 2 1/4 Lg.................................................................................................... 1
18 W-529 Cotter Pin - 1/8 x 1 Lg ....................................................................................................... 1
19 W-4187 Bearing Cone .................................................................................................................... 2
