Operation
January 2019 5-7
Hitching - Continued
X35 Apollo - Lift and Pressure Control Wiring - Continued
Item Part No. Description Qty
1 S64940 Manifold - Opener Control ................................................................................................. 1
2 K62977 Pressure Transducer .......................................................................................................... 1
3 N67045 Harness - Pack Control (1026291-01) ............................................................................... 1
4 N67046 Harness - Lift Control (1006258-01) .................................................................................. 1
5 N67037 Harness - Triplex ECU Adapter (1005038-01) .................................................................... 1
5A N67038 Harness - Single ECU (1005036-01) ................................................................................. 1
5B N68000 Harness Extension - 2m - (1028492-01) - Optional
6 N55950 Apollo Master Module ECU - CM-40 - (AGA5339) ............................................................ 1
7 N59010 Harness Extension - Work Switch - 5m - (AGA4468) ........................................................ 2
8 N64671 Pressure Transducer Extension Harness - 7m - (1024230-01) .......................................... 1
9 N68001 AUX Lift Lower Signal Adapter .......................................................................................... 1
10 W-187 Hex Bolt - 3/8 x 1 1/4 Lg - Bolts ECU to plate under manifold .......................................... 4
11 D-5279 Locknut - 3/8 Serrated Flange ........................................................................................... 4
N67052 Lift and Pressure Control Kit for 2-3 Tank Carts (Includes Items 3, 4, 7 and 8)
N67051 Lift and Pressure Control Kit for 4 Tank Carts (Includes Items 3, 4, 5, 6, 7 and 8)
N67798 Lift and Pressure Control Kit for 4 Tank Carts Tow Behind ONLY
(Includes Items 3, 4, 5A, 6, 9, 10 and 11)
Pack Pressure Control Arm - Optional
12 S66267 Packer Arm - Digi-Star ...................................................................................................... 1
13 S67715 Axle Assembly - Digi-Star (Includes S66278 Spindle - Digi-Star) ..................................... 1
14 M-3388 Lock Nut - 3/8 Unitorque ................................................................................................... 1
15 W-479 Hex Bolt - 3/8 x 2 1/4 Lg.................................................................................................... 1
16 S67885 Zip Tie - Push Mount ......................................................................................................... 3
17 N68002 Extension Cable - Optional
S67716 Pack Pressure Control Arm Assembly (Includes Items 12, 13, 14, 15 and 16)
X35 Apollo - Wiring

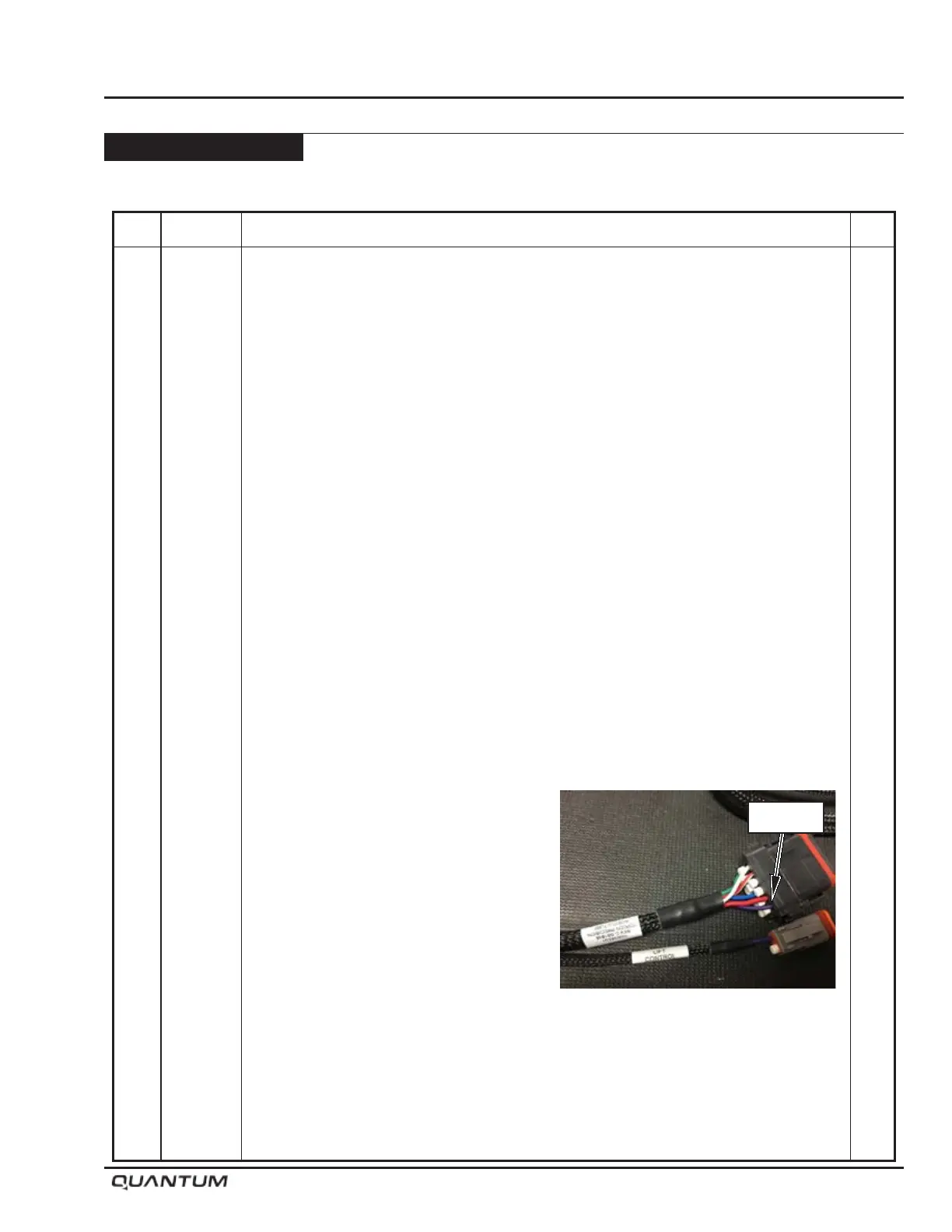

Ensure the Single Purple wire is installed in pin 13 (Relay signal out on the Auxiliary
harness) as shown. (Cart Harness N58112)
Connect 1006258-01 Lift lower harness to the following connections:
Trunk /Whisker - to the single wire connection to pin 13 on Aux harness
Relay Power - to AGA5343 ECU harness DTP power connector - (remove dust cap).
Lift Solenoid - to S1 on JEM Manifold block on Quantum drill
Pin 13
