Controller Options - Continued
Topcon - X35 Apollo - Continued
Pack Control Calibration - Continued

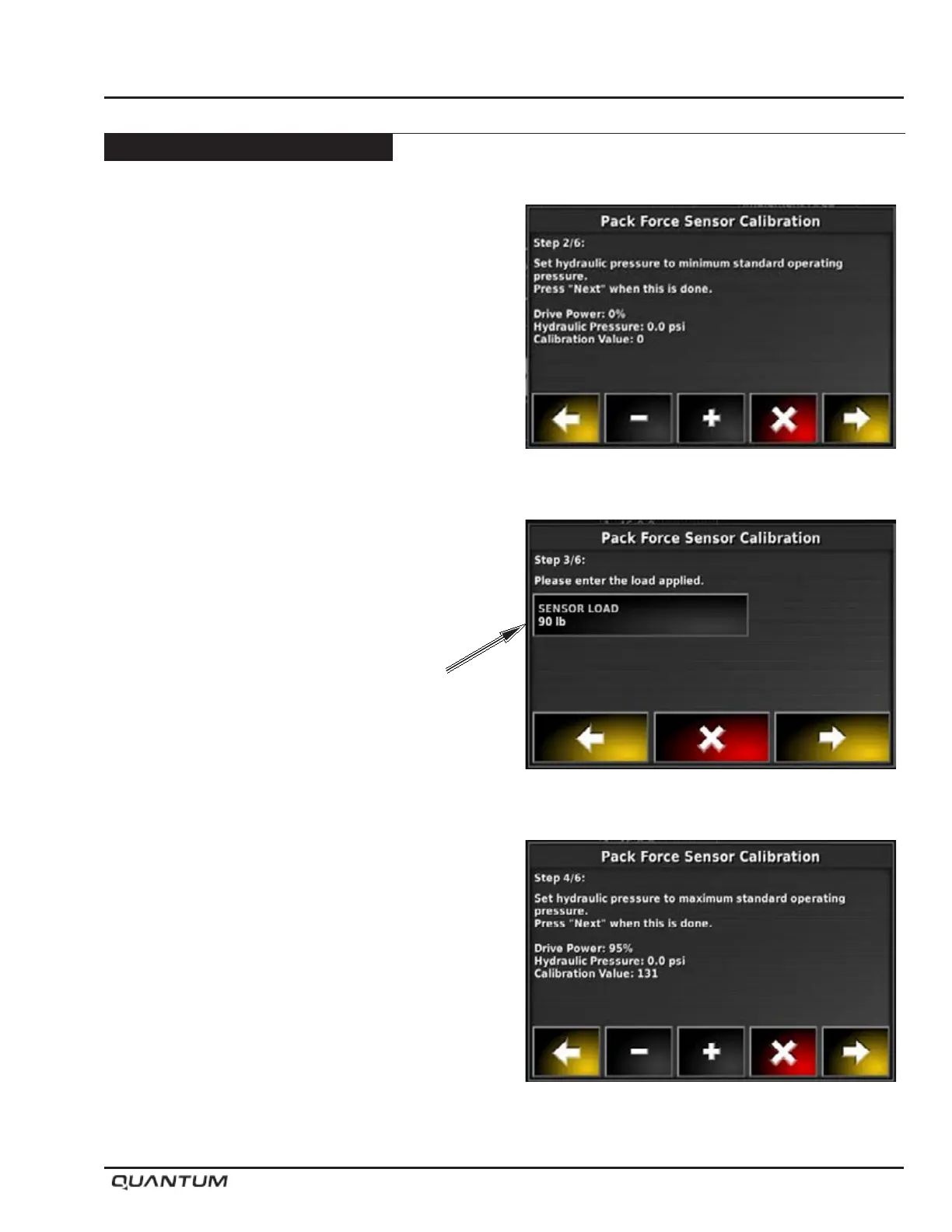

6. Engage hydraulics and run the PWM up using the
(+) icon until the opener pressure is running at the
minimum value required to keep the opener in the
ground to ensure we have an accurate reading on
the scale.
Drive power up to the minimum amount of PWM to keep
the opener down, and locked into the working position.
As an example 10% PWM
Press the Yellow Forward ARROW
7. Enter the weight displayed on the Pan scale, under
the opener tire.
Proceed with the Yellow arrow (Note: Do not use the
numbers used in this guide, enter the weight from
the Pan Scale).
8. At step 4 do not run it to max PWM, just run it to a
hydraulic pressure value which would be considered
a standard high pressure operating value.
60% PWM
Proceed with the Yellow forward arrow.
