d. Attach the power adapter cable into the power connector on the AP-7131.
e. Plug the power adapter into an outlet.
5. Verify the behavior of the AP-7131 LEDs. For more information, see AP-7131 LED Indicators
on page 2-19.

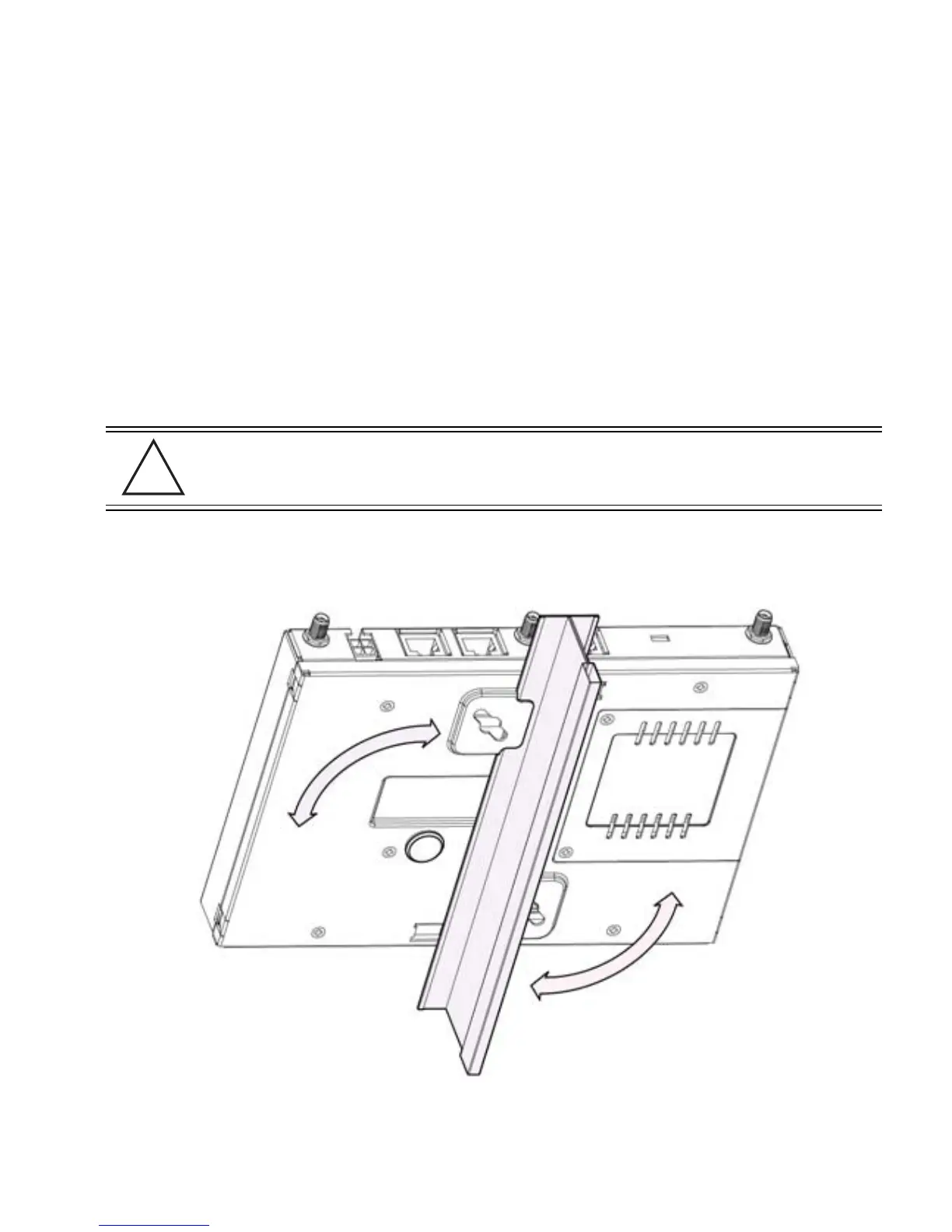

6. Align the bottom of the ceiling T-bar with the back of the AP-7131.
7. Orient the AP-7131 chassis by its length and the length of the ceiling T-bar.
8. Rotate the AP-7131 chassis 45 degrees clockwise (or about 10 o’clock).
9. Push the back of the AP-7131 chassis on to the bottom of the ceiling T-bar.
10. Rotate the AP-7131 chassis 45 degrees counter-clockwise. The clips click as they fasten to
the T-bar.
CAUTION Ensure the safety wire and cabling used in the T-Bar AP-7131
installation is securely fastened to the building structure in order to
provide a safe operating environment.
!
