MOTOROLA M68000 8-/16-/32-BIT MICROPROCESSORS USER'S MANUAL 5- 21
S0 S1 S2 S3 S4 S5 S6 S7 S0 S1 S2 S3 S4 S5 S6 S7 S0 S1
CLK
BUS THREE-STATED
BG ASSERTED
BR VALID INTERNAL
BR SAMPLED
BR ASSERTED
BUS RELEASED FROM THREE STATE AND
PROCESSOR STARTS NEXT BUS CYCLE
BR NEGATED INTERNAL
BR SAMPLED
BR NEGATED
BR
BG
BGACK
FC2–FC0
A23–A1
AS
UDS
LDS
R/W
DTACK
D15–D0
PROCESSOR
ALTERNATE BUS MASTER PROCESSOR

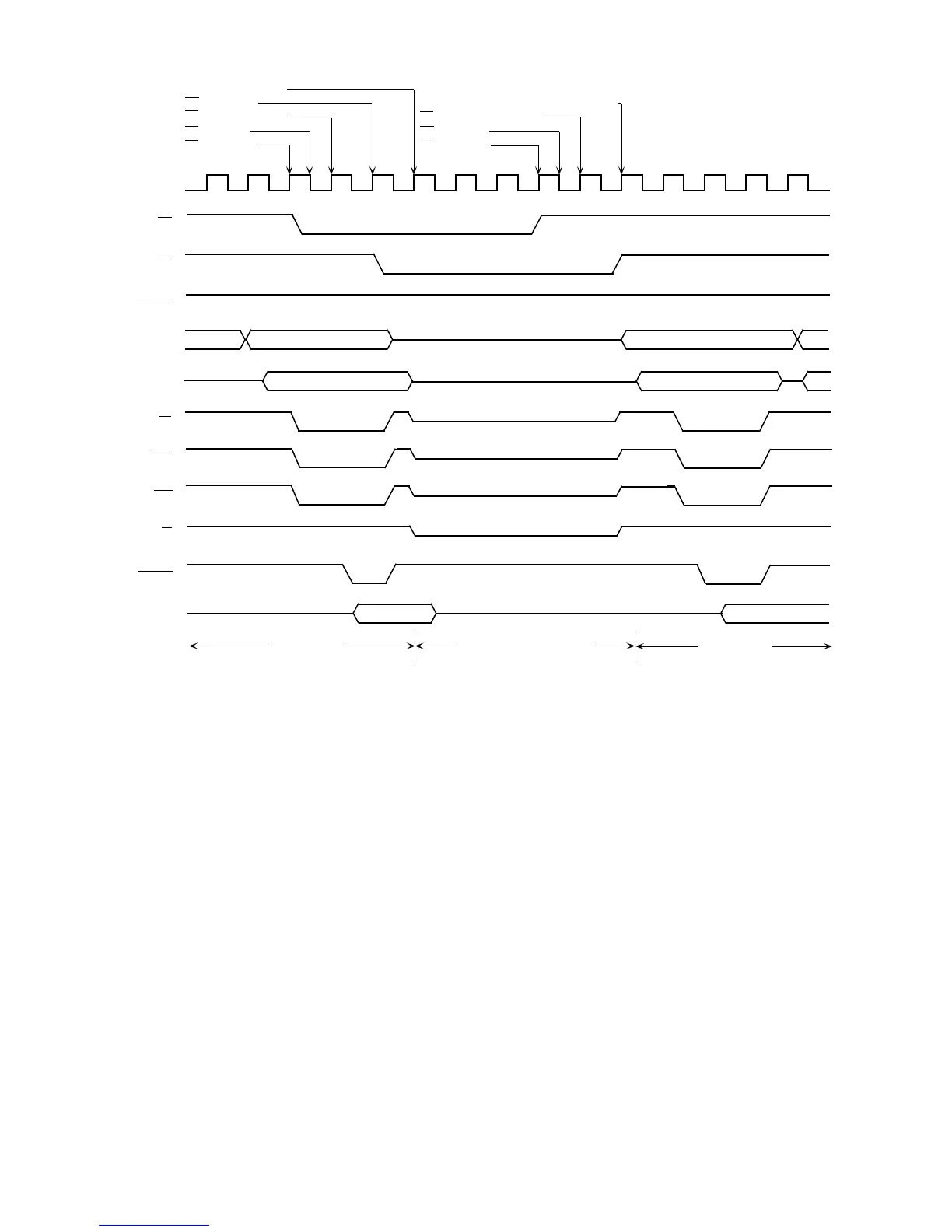

Figure 5-22. 2-Wire Bus Arbitration Timing Diagram—Processor Active
