4 - 14 MC3090Z RFID Mobile Computer Integrator Guide
Reading Tags
To use the sample application to read tags:
1. Aim the mobile computer at the tag in any orientation (horizontally or vertically). The distance between the tag
and the antenna is the approximate read range.

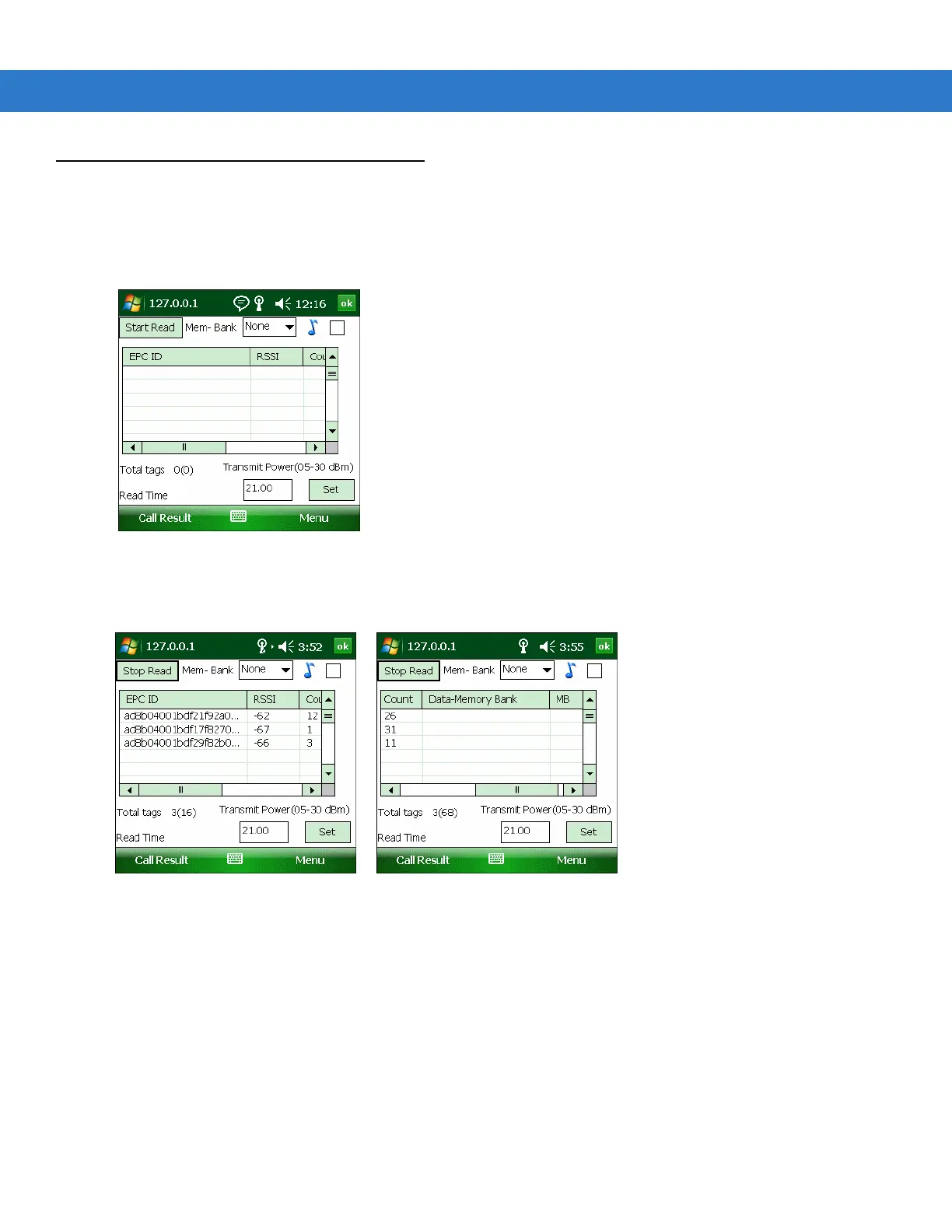

Figure 4-22
RFID Tag Read
2. Tap Start Read to interrogate all RFID tags within the radio frequency (RF) field of view, and capture data from
each new tag found.
Figure 4-23
RFID Tag List
The sample application lists the following information for each tag read:
•
EPC ID - The data content of the tag.
•
RSSI - Received Signal Strength for the tag.
•
Count - The number of times the mobile computer read the tag.
•
Data Memory Bank - The memory bank data if you selected Reserved, TID, User, or EPC with offset.
•
MB - The selected memory bank (TID, RSVD, USER or EPC).
Tap Stop Read to stop interrogating tags.
