RFID Sample Application 4 - 11
Management Menu Options
The Management menu provides access to reader management functionality such as updating firmware, selecting
an antenna mode, and rebooting. The Management menu options include:
•
Login and Logout options
•
Reboot option
•
OEM Update option
•
Software/Firmware Update option

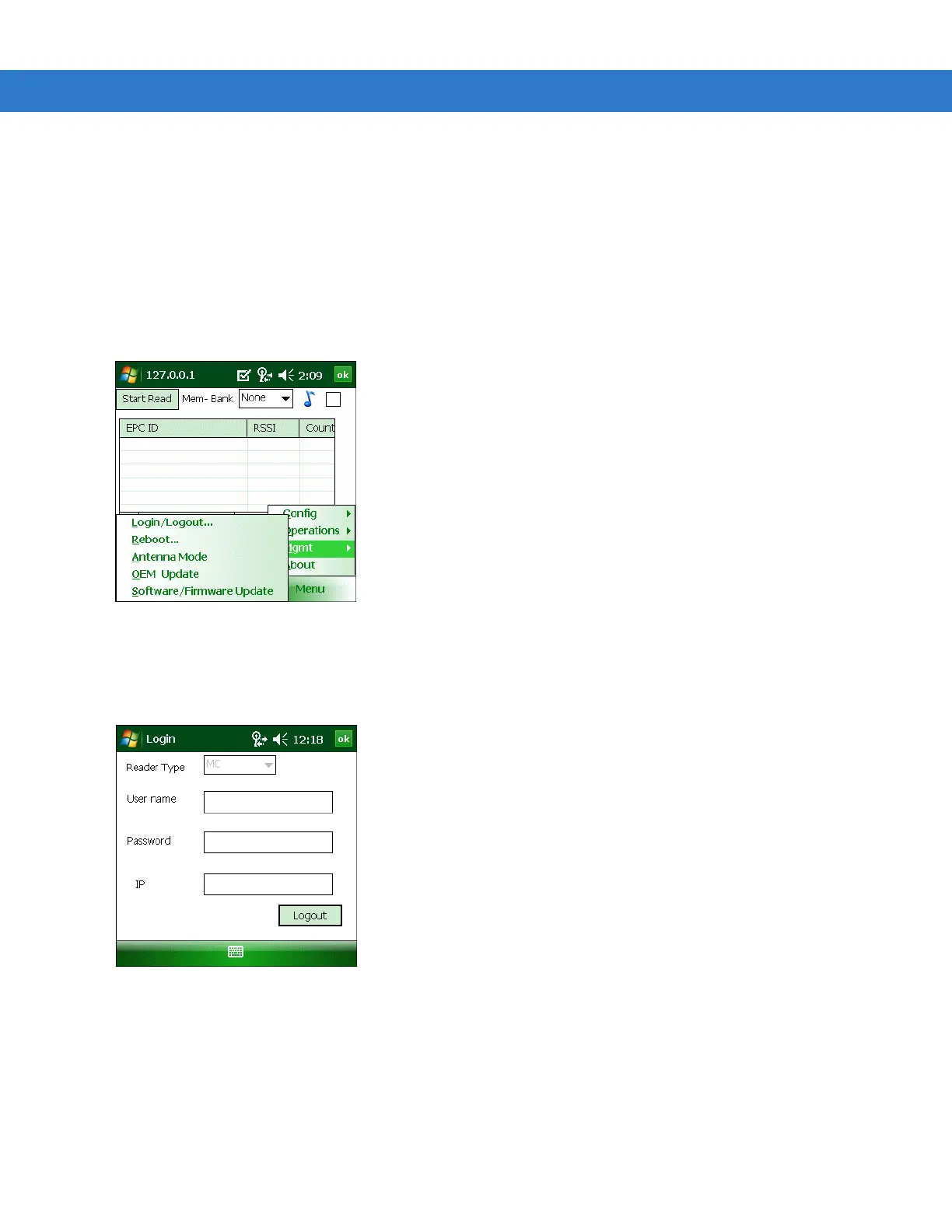

Figure 4-17
Management Menu
Login/Logout Settings
The Reader Management functionality requires login authentication. Select Mgmt > Login/Logout... to log in or out
of this functionality.
Figure 4-18
Login Window
This window includes the following fields:
•
Reader Type - MC indicates the MC3090Z.
•
User name - Enter the user name used to gain access to reader management functionality.
•
Password - Enter the password used to gain access to reader management functionality.
•
IP - IP address of the host. For MC3090Z, the default is 127.0.0.1 or localhost.
