Indicators

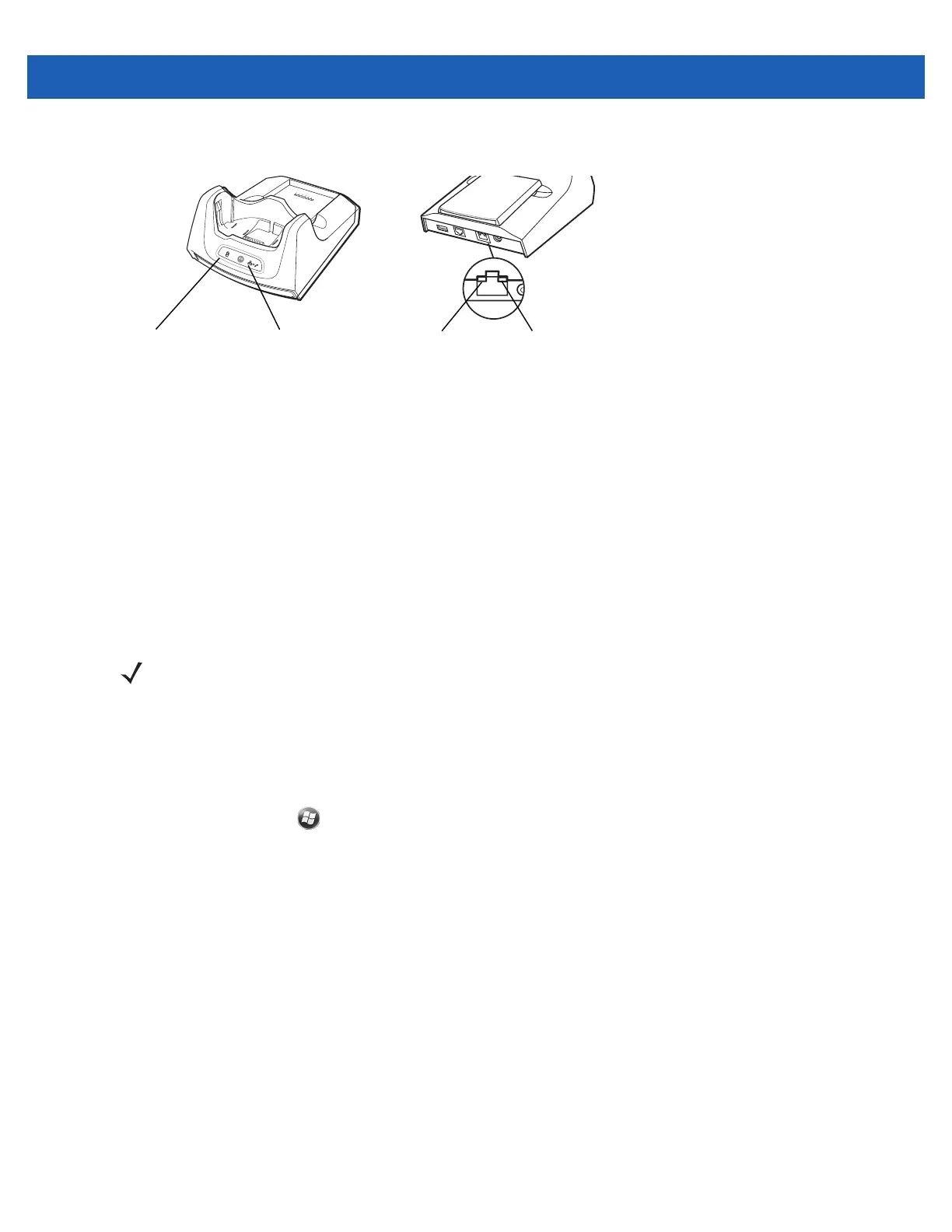

Figure 10-5 Indicators
• Spare Battery Charging LED - Indicates the charging status of the spare battery.
• Ethernet/Modem LED - Blink whenever Ethernet or modem connectivity is established.
• Speed LED (green) - Indicates that the transfer rate is 100 Mbps. When it is not lit it indicates that the
transfer rate is 10 Mbps.
• Link LED (yellow) - Blinks to indicate activity, or stays lit to indicate that a link is established. When it is
not lit it indicates there is no link.
Operation
Ethernet Connection
Place the Connection switch on the bottom of the cradle to the Ethernet position.
Place the MC67 into the cradle.
To test the connection, tap > Programs > Internet Explorer. Enter a web address.
Modem Connection
Place the Connection switch on the bottom of the cradle to the Modem position.
Place the MC67 into the cradle.
The MC67 dials the phone number and connects to the web site.
Ethernet/Modem LEDSpare Battery
Charging
LED
Speed LED Link LED
NOTE The CRD5500-1000XR does not support hot swapping between operational modes. After moving the
switch into a different position, remove the MC67 from the cradle and then re-insert into the cradle.
