2 - 2 MC67 User Guide

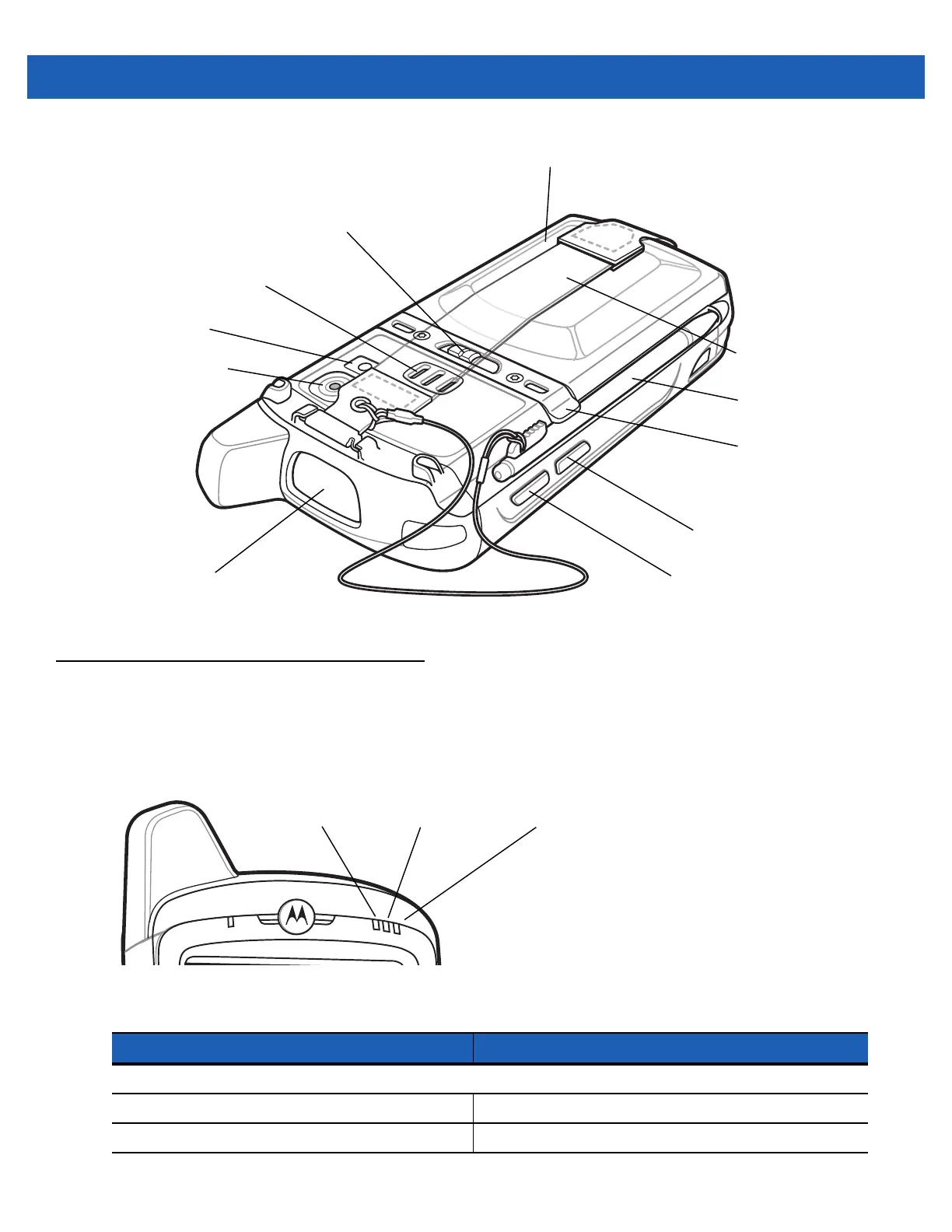

Figure 2-2
MC67 Rear View
LED Indicators
The MC67 has three light emitting diode (LED) indicators. The Data Capture LED indicates status for scanning.
The Charging/Battery Status LED indicates battery charging and status.The Radio Status LED indicates Wide
Area Network (WAN) radio status. Table 2-1 describes the LED indications.
Figure 2-3
LED Indicators
Battery
Speaker
Exit Window
Stylus
Battery Latch
Camera
Stylus Clip
Camera Flash
Action Button
Scan/Action Button
Handstrap
Table 2-1
LED Indications
LED State Indication
Data Capture LED
Solid Green Successful decode/capture.
Solid Red Data capture in process.
Data Capture
LED
Charging/Battery
Status LED
Charging/Battery
Status LED
WAN Radio
Status LED
