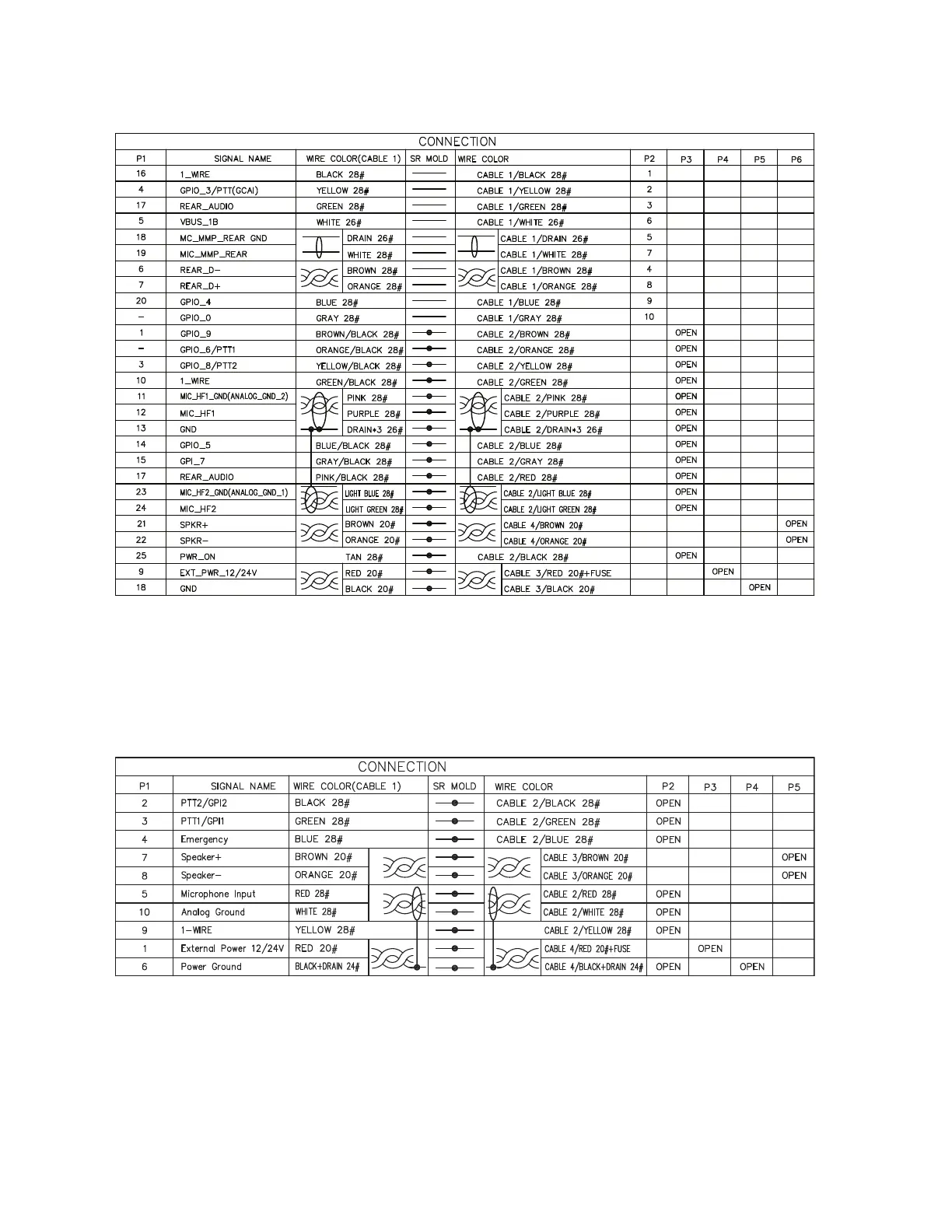

Figure 71: RECH Y-Cable Pin Diagram
5.8.7
Telephone Style Control Head Y-Cable (Accessories Expansion
Cable)
Part Number: PMKN4134_
Figure 72: TSCH Y-Cable Pin Diagram
5.8.8
Radio-to-Junction Box
Part Number: PMKN4101_, Length: 6 m (19.69 ft)
68015000181-LB
Chapter 5: Connectors and PIN Assignment
114
Send Feedback
113
115
