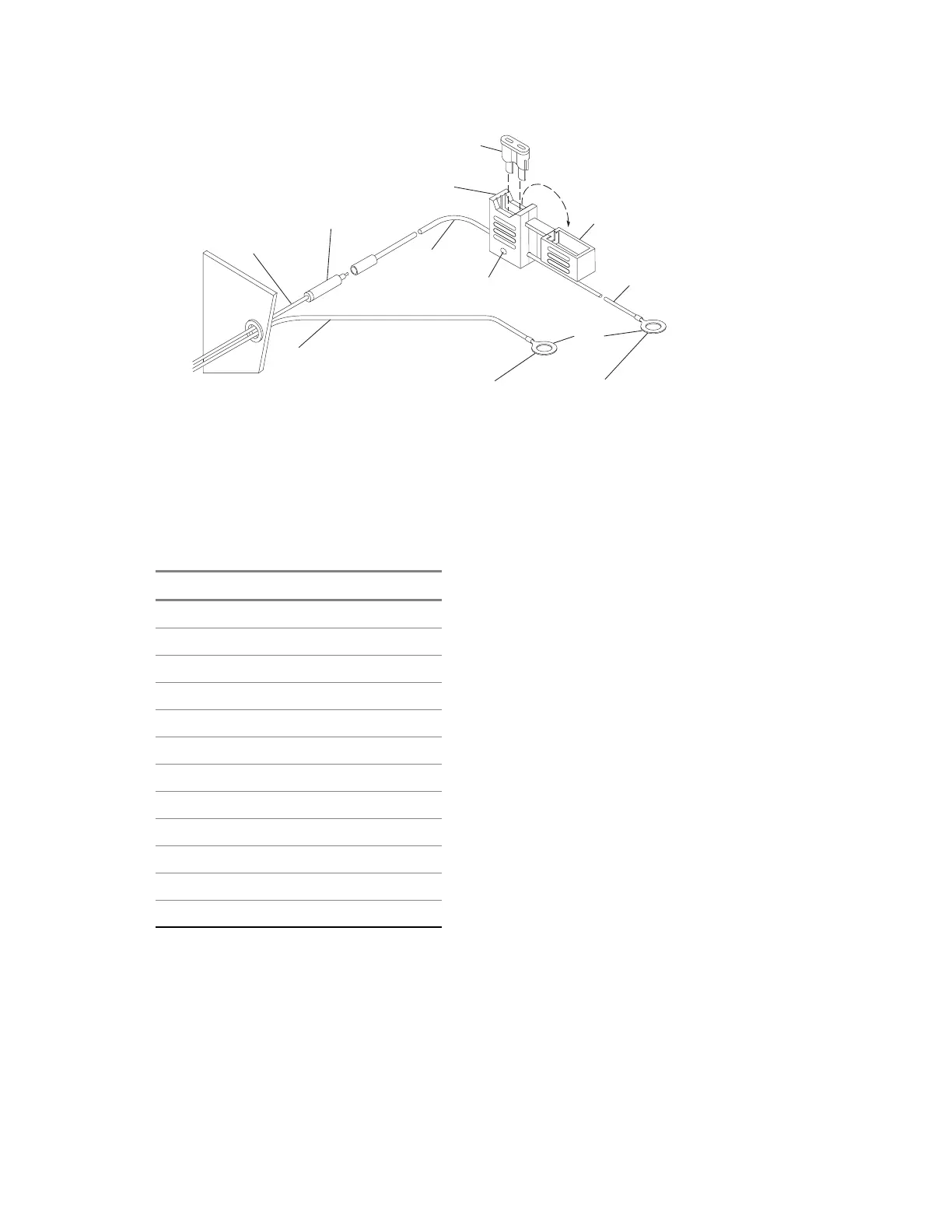

Figure 2: Power Cable Assembly
1FL08302470
1
2
3
4
5
6
7
8
9
10
11
12
Number Description
1 Red lead
2 Black lead (min. 2,5 mm)
3 Adapter
4 Red lead (min. 2,5 mm)
5 Fuse holder
6 Fuse (10A)
7 Mounting hole
8 To battery (-) or chassis
9 Cover
10 Ring lugs
11 To battery (+)
12 Red lead (min. 2,5 mm)
5 Place the fuse holder close to the battery. Ensure that it is not near any hot engine component.
Mount the fuse holder using its mounting hole and dress the wires as required.
6 Insert the stripped end of the red lead of the fuse holder into the ring lug hole and crimp it.
Connect the fuse holder red adapter lead plug to the mating receptacle on the red lead of the
power cable.
7 Connect the red lead ring lug from the fuse holder to the positive (+) battery terminal. Make sure
that the adapter cable is connected to the main power cable red lead.
8 Carefully check that all connections are proper. Insert the fuse into the fuse holder and close the
cover.
68015000181-LB
Chapter 3: Vehicle Preparation
