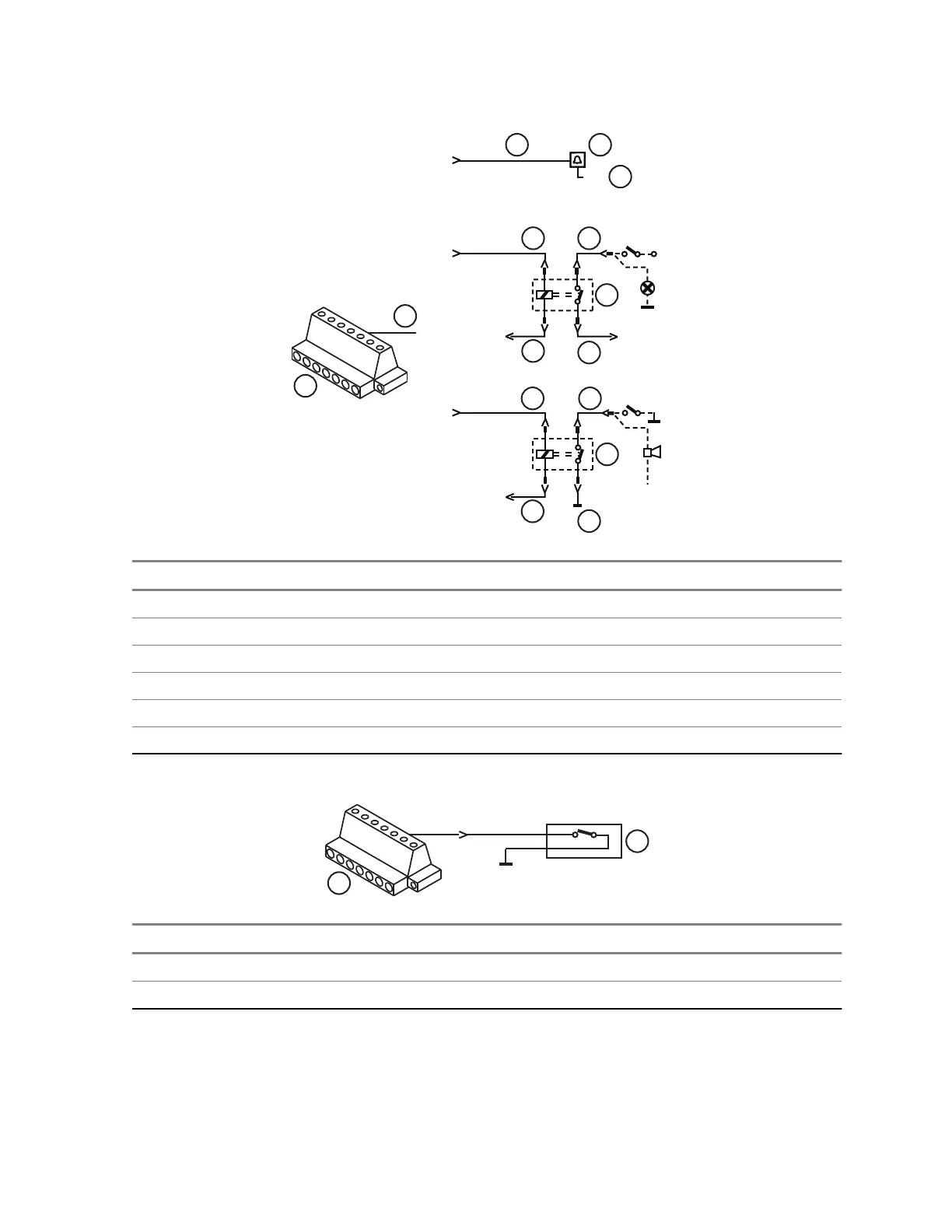

Figure 45: Connection Plan for the Alarm Relay
1
2
3
4
5
6
7
1
2
5
5
5
5
5
3
3
3
3
3
6
6
4
5
5
86
87
85
30
+12 V
86
87
85
30
+12 V
5
+12V
+12 V
+12 V
+12 V
Number
Description
1
JUNCTION BOX TERMINAL
2
EXTERNAL ALARM
3
BLK
4
BUZZLER
5
RED
6
ALARM RELAY
Figure 46: Connection Plan for the Emergency Switch
1
2
3
4
5
6
7
1
2
Number
Description
1
Junction Box Terminal
2
Emergency Switch
68015000181-LB
