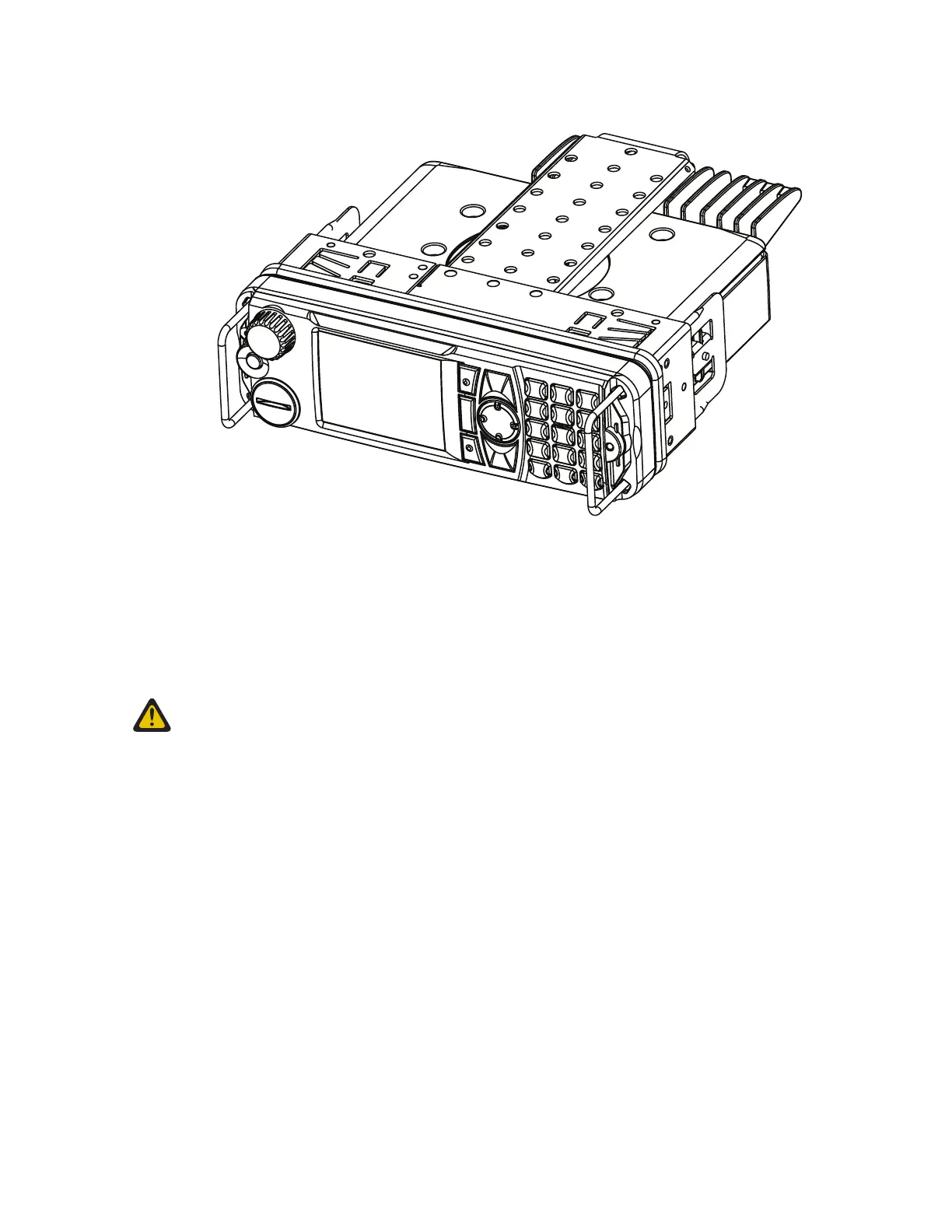

Figure 5: Radio with Demount Tools
3 Push the demount tools through the openings in the frame.
4 Slide out the radio.
4.2
Desktop Installation
The Desktop Station option provides the terminal with the desk microphone, power supply, desk top
tray (without a speaker) and external loudspeaker.
CAUTION: If an outdoor antenna is used a proper grounded Lightning Protector with Quarter-
Wave Shorting Stub must be inserted between the outdoor antenna and the transceiver
antenna input. The line voltage power supply shall have a proper ground connection (see
IEC61312-1). The installation must meet the requirements of any applicable local codes and
regulations.
4.2.1
Desktop Installation Planning
Planning is the key to fast, easy terminal installation. Before a hole is drilled or a wire is run, inspect the
location and determine how and where you intend to mount the antenna, terminal, and accessories.
Plan wire and cable runs to provide maximum protection from pinching, crushing, and overheating.
Only competent personnel, able to ensure that the complete installation fulfils its regulatory
requirements, such as EMC (Electro Magnetic Compatibility) and IEC (International Electrotechnical
Commission) can plan the installation.
4.2.2
Desktop Installation
When and where to use: Follow these steps to install the desktop station.
Procedure:
1 Be sure that line voltage power is available.
